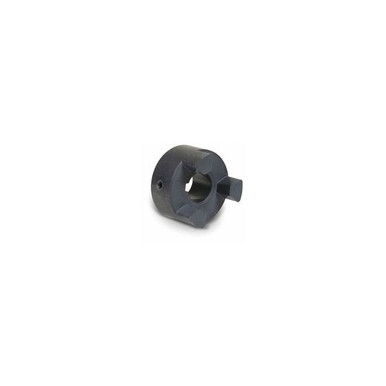

L07578 L075X7/8 L-JAW HUB

L07578 L075X7/8 L-JAW HUB

TB Woods . L07578

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerTB Woods
CategoryL1Shaft Couplings and Collars
CategoryL2Jaw Couplings
CategoryL3Components
CategoryL4Hub Halves
Extra Product Name, snippetL07578 L075X7/8 L-JAW HUB
moq, multiple10
MPNL07578
qtyInStock0
SKU339570
tierMinQty11
tierPrice17.37
Keyway3/16 in x 3/32 in
Bore size7/8
Product familyL-jaw hub
Size code75
Material type, Hub materialSinter carbon steel
Overall length2.13
Dimension (in ) (OD)1.750
Max compatible bore size0.875
Setscrew length (in)3/8
Max speed, Max RPM11000
Setscrew length, Dimension (in) (S)0.375
Dimension (in) (LTB), Length-through-bore0.81
Bore shapeFinish with keyway
Min compatible bore size0.25
Setscrew size1/4 20 UNC - 2B
Jaw typeStraight
Dimension (in) (HD)NA
Max parallel misalignment0.015
Dimension (in) (L)1.28
Center0.5
O D1.75
Bore tolerance (in)+0.0005 to +0.0015
Bore tolerance+.0005 to +.0015
Coupling sizeL075
Keyseat3/16 x 3/32

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply33957010101 @ $7.37
Grainger4X18411
Applied Industrial10081280011
sustainablesupply.comC16892291-211 @ $8.41
ZoroG0384605162711 @ $7.69
simsupply.comZO-G0384605139711 @ $15.07
