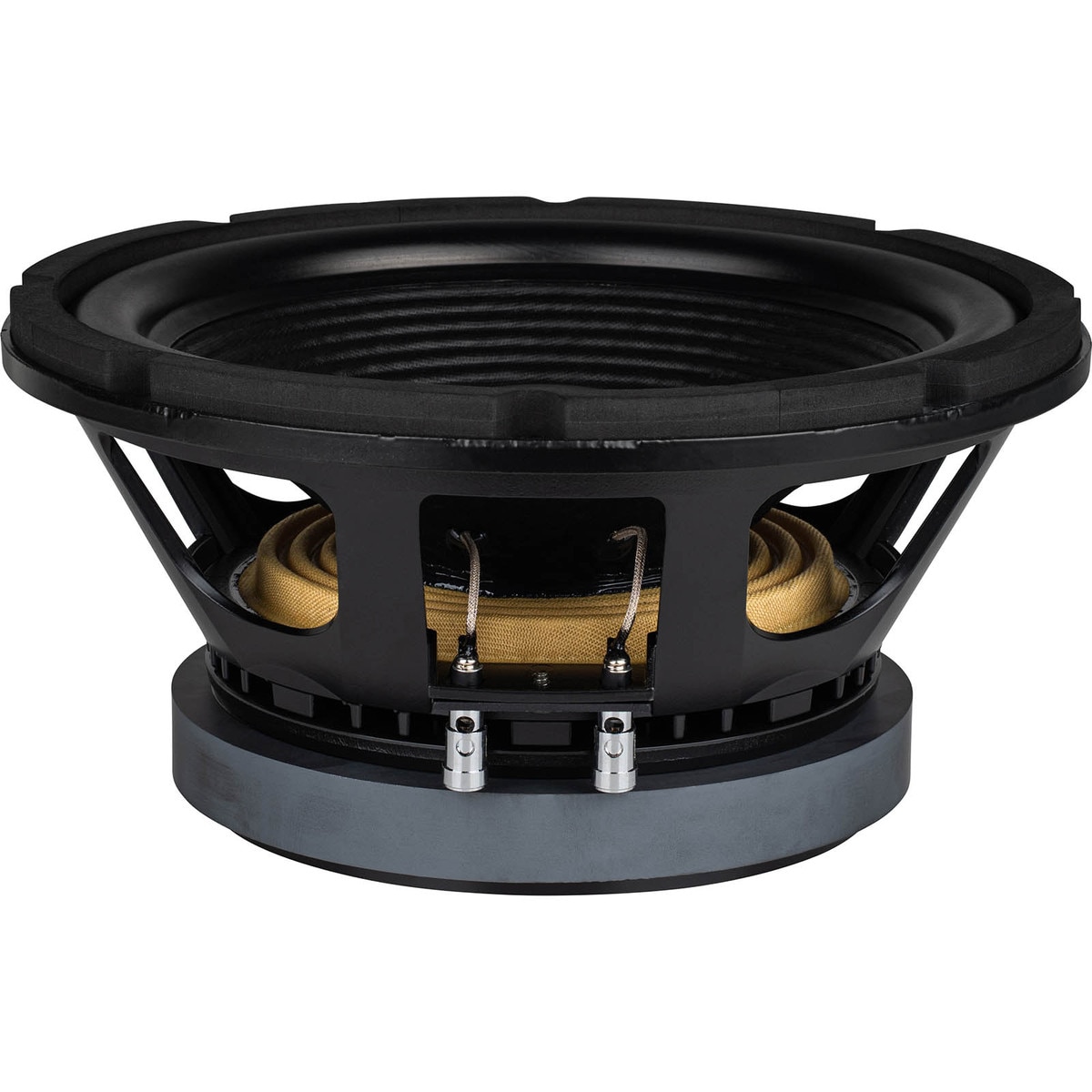

Ciare 12.00SW-8 12" High Power Subwoofer 8 Ohm

Ciare . 12.00SW-8

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandCiare
DimensionUnitinch
Extra Product NameCiare 12.00SW-8 12" High Power Subwoofer 8 Ohm
UPC848864075433
Weight26
WeightUnitlbs
depth, length5.87
diameter, height, width12.4
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, Model12.00SW-8
qtyInStock-2
qtySourceFieldMap
SKU, Part Number293-164
Unit of MeasureEach
Nominal Diameter12"
Bolt Circle Diameter11.61
Power Handling (RMS)1000 Watts
Power Handling (MAX)2000 Watts
Impedance8?
Frequency Response30 to 2,000Hz
Sensitivity89.5dB 2.83V/1m
Voice Coil Diameter4"
Resonant Frequency (Fs)30Hz
DC Resistance (Re)6.7?
Voice Coil Inductance (Le)2.35mH
Mechanical Q (Qms)6.1
Electromagnetic Q (Qes)0.36
Total Q (Qts)0.34
Compliance Equivalent Volume (Vas)2.08ft?
BL Product (BL)25.3T?m
Diaphragm Mass Inc Airload (Mms)183g
Maximum Linear Excursion (Xmax)14mm
Surface Area of Cone (Sd)523cm?
Cone MaterialPaper-Treated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton? / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter12.4"
Baffle Cutout Diameter11.1"
Depth5.87"
# Mounting Holes8
Sealed Volume0.363ft?
Sealed F375.08Hz
Vented Volume0.92ft?
Vented F343.37Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com293-1641-21
