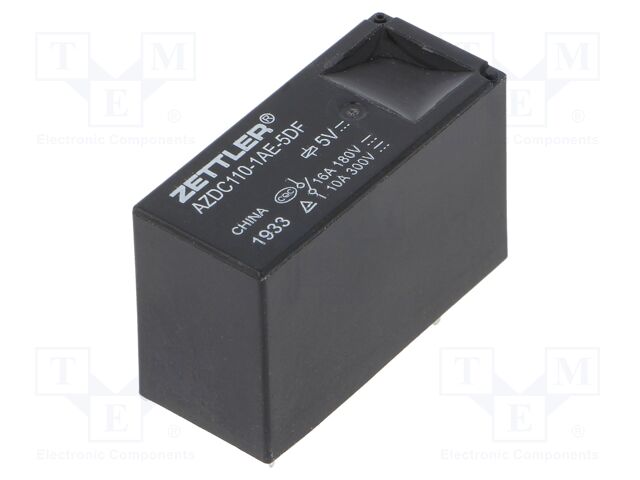

ZETTLER AZDC110-1AE-5DF | Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 16A; 16A/300VAC; PCB

ZETTLER AZDC110-1AE-5DF | Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 16A; 16A/300VAC; PC

ZETTLER . AZDC110-1AE-5DF

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerZETTLER
CategoryL1Relays and Contactors
CategoryL2Relays
CategoryL3Electromagnetic Relays
CategoryL4Miniature Electromagnetic Relays
Extra Product NameZETTLER AZDC110-1AE-5DF | Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 16A; 16A/300VAC; PCB
atoms1
jsonUrlDatad286bb571664cf6f96e01002accb4ba0.
jsonUrlData24e05ee50d50aac5051f5
keywordsZETTLER, AZDC110-1AE-5DF, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays
moq, multiple, tierMinQty1250
MPN, SKUAZDC110-1AE-5DF
qtyInStock0
snippetZETTLER AZDC110-1AE-5DF | Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 16A; 16A/300VAC; PC
tierPrice14.29
Type of relayelectromagnetic
Contacts configurationSPST-NO
Rated coil voltage5V DC
Contact current max16A
AC contacts rating @R16A / 300V AC
DC contacts rating @R10A / 300V DC
Switched voltagemax. 300V AC,
Relay variantminiature
MountingPCB
Coil resistance62.5?
Body dimensions29.3x12.7x19mm
Coil power consumption400mW
Operating temperature-40...105?C
Relay seriesAZDC110
Contact resistance100m?
Contact materialAgSnO
Terminal pitch5mm
Additional functionsmagnetic arc blow-out

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEAZDC110-1AE-5DF250250250 @ $4.29
