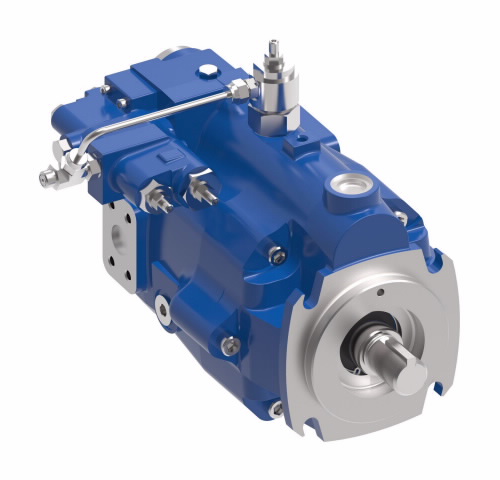

DANFOSS . 123AL02085A

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDANFOSS
Extra Product NameSunSource | 123AL02085A DANFOSS Industrial Hydraulics | SunSource.com
jsonUrlData0ffae4f2-4d5f-467f-bcbb-ae2800097255
keywordsPVM131ER10GS02AAA07000001A0A 123AL02085A
moq, multiple, tierMinQty11
MPN, SKU123AL02085A
qtyInStock, tierPrice10
snippet123AL02085A DANFOSS | Search our online catalog of Industrial Hydraulics. Start your quote online to connect with our team of technical experts for support.
ApplicationMining Machinery, Injection Molding Machines, Metal Forming Machines, Oil and Gas Equipment, Conveyor Lines, Primary Metals, Metal Cutting Equipment
Bearing life at rated pressure8000 hour
Code titleVariable Displacement
Cold start temperature limit104 degree Celsius
Controller typePressure Compensator
Design code11A
Displacement106.5 cubic centimetre per revolution
EccnEAR99
End cover materialDuctile Iron
Fluid cleanlinessISO 18/13
Fluid compatibility13SAE J183 FEB80
Housing materialCast Iron
Icc2Industrial - OC Piston Pumps
IdentificationNone
Input mounting flangeSAE J744-127-4 (C, 4-Bolt)
Input shaftSAE J744-32-1, SAE C, Straight Keyed
Input speed at 0 8 bar absolute, Input speed rated1800 revolutions per minute
Input speed at 1 0 bar absolute, Input speed maximum2200 revolutions per minute
Input speed minimum0 revolutions per minute
Main port size locationSide
Maximum case pressure, Peak pressure rating350 bar
Maximum recommended oil viscosity40 centistokes
Minimum recommended oil viscosity16 centistokes
Model CodePVM106ER09GS02AAA23000001A0A
Noise64 decibel
Nominal pressure rating315 bar
PaintBlue
Pressure compensator setting230 bar
Product height8.46
Product height uom, Product length uom, Product width uominch
Product length16.29
Product trade namePVM Series
Product weight121
Product weight uompound
Product width11.41
Shaft rotationRight
Special features17Adjustable Max Displacement Stop (Contains Single Shaft Seal)
Sub brandVickers
Valve plateIndustrial
Vsd readyNo
