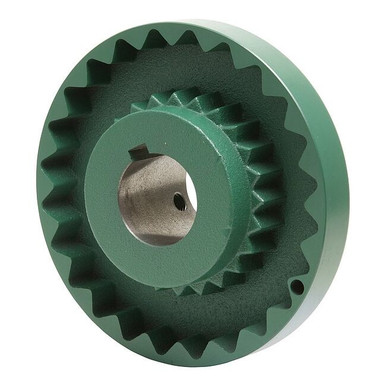

9S138 9SX1 3/8 SF FLANGE

9S138 9SX1 3/8 SF FLANGE

TB Woods . 9S138

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerTB Woods
CategoryL1Shaft Couplings and Collars
CategoryL2Gear Couplings
CategoryL3Complete Units
Extra Product Name, snippet9S138 9SX1 3/8 SF FLANGE
moq, multiple, tierMinQty1, Setscrew length (in), Setscrew length1
MPN9S138
qtyInStock0
SKU338674
tierPrice175.85
Bore size1 3/8 in
Material typeHigh strength cast iron
SF hub length, Dimension (in ) (E)25/32
Setscrew size, location3/8 16 UNC, One over KS and at 90 Degrees
Max speed, Max RPM3750
Max angular gap misalignment0.109 (in) with EPDM/Neoprene Sleeves and 0.028 (in) with Hytrel Sleeves
Dimension (in) (D), Outside diameter, Flange diameter6.35
Dimension (in) (C)2 13/32
Dimension (in) (S)3/8
Setscrew Torque Requirment (ft lbs), Setscrew torque requirement23
Horsepower Rating at 100 RPM57
Min compatible bore size0.4375
Power rating at 100 RPM2.8 kW with EPDM or Neoprene sleeve, 8.5 kW with Hytrel sleeve
Screw sizeSetscrew
Max parallel misalignment11
Component WR2 (lbs ft2), Component WR?0.2187
Keyseat (in)5/16 x 5/32
Screw typeFlange, Type S
Torque rate2,340 (in-lbs) with EPDM or Neoprene sleeve; 7,200 (in-lbs) with Hytrel sleeve
Set screw distance0.375
Bore tolerance (in)+0.0005 to +0.0015
SF hub diameter3.625
Max angular misalignment1? with EPDM/neoprene sleeves and 1/4? with hytrel sleeves
Bore tolerance+.0005 to +.0015
Length through bore2.40625
Coupling size9
Torque2,340 in-lb with EPDM or Neoprene sleeve, 7,200 in-lb with Hytrel sleeve
Keyseat size5/16 in x 5/32 in
Bore size (in)1-3/8
Construction typeFinish bore with keyway
Dimension (in) (T)1 1/32
Dimension (in) (H)3 5/8
Max compatible bore size2.875
SF flange length1.03125
