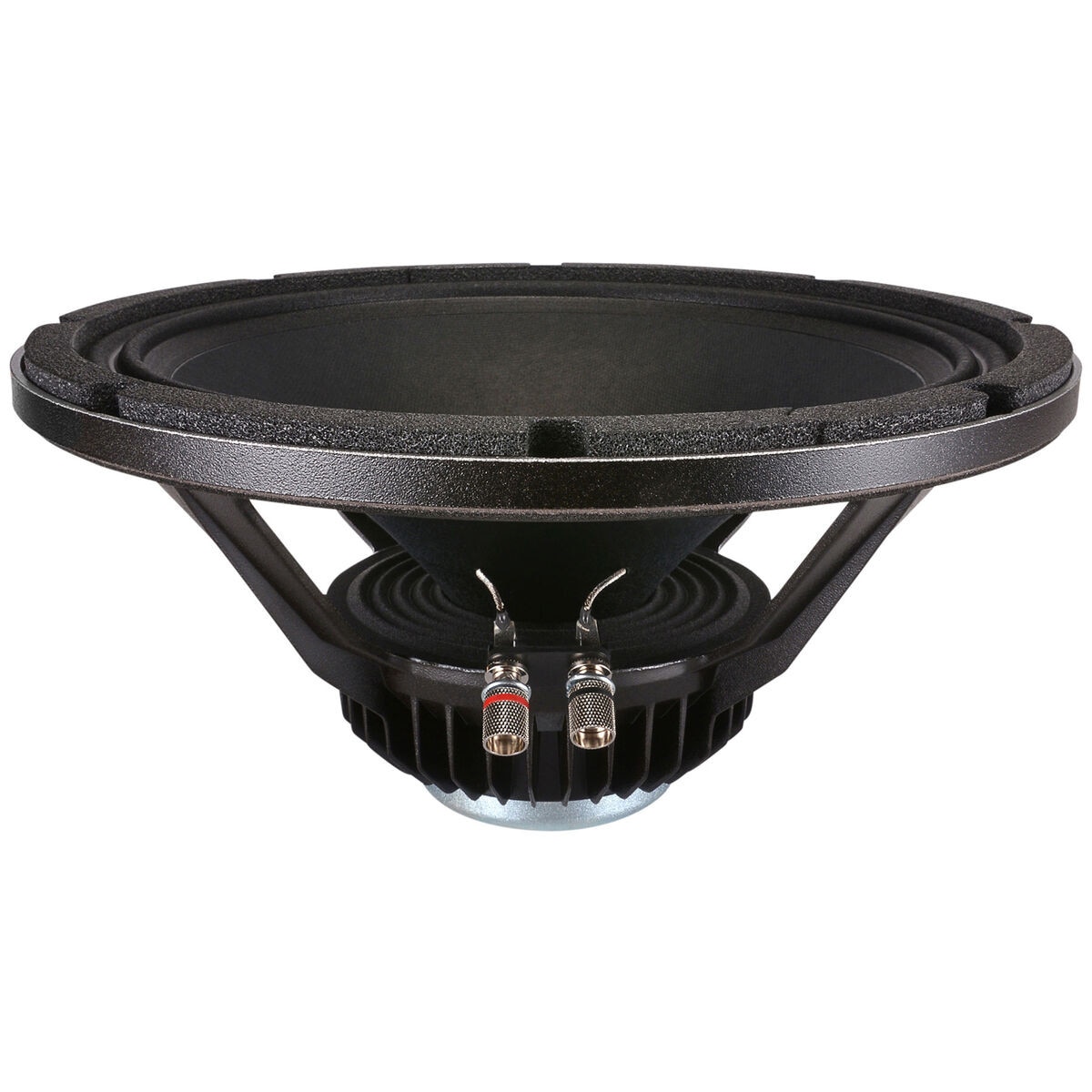

Eminence Deltalite II 2512 Neo 12" Speaker Driver

Eminence Deltalite II 2512 Neo 12" Speaker Driver. Part Number: 290-593 by Eminence Speaker.

Eminence Speaker . DELTALITE II 2512

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandEminence Speaker
DimensionUnitinch
Extra Product NameEminence Deltalite II 2512 Neo 12" Speaker Driver
UPC876358000593
Weight6.8
WeightUnitlbs
depth, length6.06
diameter, height, width12.38
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPNDELTALITE II 2512
qtyInStockOnly 4 In Stock
SKU, Part Number290-593
snippetEminence Deltalite II 2512 Neo 12" Speaker Driver. Part Number: 290-593 by Eminence Speaker.
ModelDeltalite II 2512
Unit of MeasureEach
Nominal Diameter12"
Power Handling (RMS)250 Watts
Power Handling (MAX)500 Watts
Impedance8?
Frequency Response58 to 4,300Hz
Sensitivity99.9dB 2.83V/1m
Voice Coil Diameter2.5"
Resonant Frequency (Fs)44Hz
DC Resistance (Re)5.17?
Voice Coil Inductance (Le)0.43mH
Mechanical Q (Qms)3.13
Electromagnetic Q (Qes)0.45
Total Q (Qts)0.41
Compliance Equivalent Volume (Vas)4.76ft?
Mechanical Compliance of Suspension (Cms)0.36mm/N
BL Product (BL)11.3T?m
Diaphragm Mass Inc Airload (Mms)37g
Maximum Linear Excursion (Xmax)4.9mm
Surface Area of Cone (Sd)519.5cm?
Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerKapton? / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium
Overall Outside Diameter12.38"
Baffle Cutout Diameter11.06"
Depth6.06"
# Mounting Holes8
Sealed Volume1.5ft?
Sealed F395Hz
Vented Volume3.8ft?
Vented F349Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com290-5931Only 4 In Stock1
