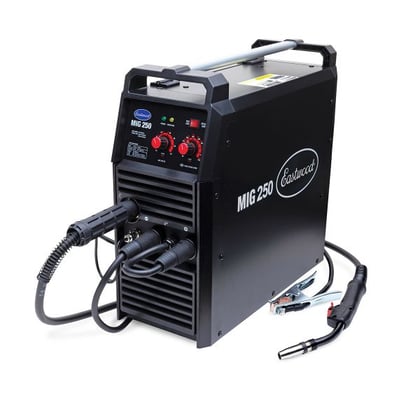

MIG 250 Eastwood Welder - Plate Steel MIG Welder

The MIG 250 Welder is a powerful, lightweight machine. Eastwood designed this 250-amp MIG welder from the ground up to be powerful, easy to use and inexpensive. With its state-of-the-art inverter technology, it weighs half as much as similar welders - and costs half as much too. But it still delivers all the power you will ever need to weld steel from 20 gauge to 1/2 inch thick (up to 1/2 inch thick on 110 volts). If you add on an optional spool gun, you can also weld aluminum from 14 gauge to 1/4 inch thick. The Eastwood MIG 250 Features: 60 percent duty cycle at full 250 amp setting Torch Cable Length: 8 ft Ground Cable Length: 9.5 ft State of the art inverter technology Uses 4-inch or 8-inch wire spool Optional spool gun for aluminum wire Trafimet ERGOPLUS24 Torch 3-year Manufacturer's warranty This 250-amp MIG welder is one of the most powerful portable machines on the market today. It has the ability to run on 120v or 240v. Specifications Rated Electrical Output: 240 VAC: 50/60HZ: 50-250 AMP | 120 VAC: 50/60HZ:50-140 AMP No Load Voltage: 61 Volt Rated Input Current: 240 VAC: 46.2 AMP|120VAC: 20 AMP Output Current Adjustment: 240 VAC: 50-250 AMP | 120VAC: 50-140 AMP Power Input At Rated Output: 240 VAC: 43.3 AMP | 120VAC: 20 AMP Output Voltage: 240 VAC: 16.5V -26.5V | 120VAC: 16.5V -21.0V Duty Cycle: 240 VAC: 60% At 250 AMP and 100% At 194 AMP | 120VAC: 60% At 140 AMP and 100% At 60 AMP Overall Dimensions: 20.07" x 8.66" x 19.69" Weight: 46 LBS. Wire Diameter: Solid Steel and Stainless Steel .023-0.45" | Flux Core 0.30-0.45" | Aluminum .030-0.35" Post Flow Time: 1 +- 0.5 seconds Wire Speed: 240 VAC: 80-530 ipm | 120VAC: 80 -300 imp Safety Information: Always follow manufacturer's instructions for proper safety requirements
