Hamilton

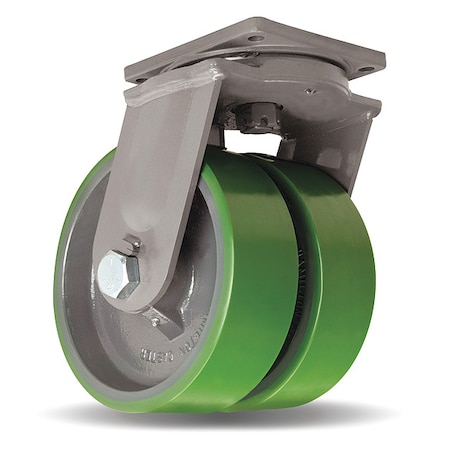

Hamilton . S-MDD-13DT-4SL-DHCB

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameHamilton
DimensionUnitinch
GraingerSku55HA37
UnitOfMeasureEA
Weight99
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
extendedLead20
extendedQty-2
height10
jsonUrlData924526ffbdad25e5923b
length, width16
moq, multiple, tierMinQty11
MPNS-MDD-13DT-4SL-DHCB
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG9073730
tierPrice11143.00
urlhttps://www.zoro.com/hamilton-plate-caster-6000-lb-load-rating-s-mdd-13dt-4sl-dhcb/i/G9073730/
Caster Sub-TypeSwivel
Load Rating6000 lb
Number of Wheels2
Wheel Dia10 in
Wheel Width, Overall Wheel Width, Swivel Lead3 in
Frame ConstructionForged
Frame Color, Core ColorSilver
Load Rating Range6000 lb and Greater
Wheel/Tread Hardness RatingFirm
NSF Listed, Includes Mounting Fasteners, Leveling Caster, With Toe Plate, Includes Thread GuardsNo
SeriesMaxi-Duty Dual
Mounting Height13 in
Tire StyleTubeless
For Axle Dia1 1/4 in
Caster Brake TypeFace Contact Brake
StandardsICWM
Swivel ConstructionKingpin
Wheel/Tread ColorGreen
Mounting Plate Thickness, Mounting Bolt Dia5/8 in
For Surface TypeConcrete
Non-Marking, ESD Conductive, Includes Spanner BushingYes
Wheel Core MaterialCast Iron
Operating Temperature Range-50 Degrees to 200 Degrees F
Wheel/Tread MaterialPolyurethane
Swivel Raceway TypeRoller
Wheel Core TypeSolid
Wheel/Tread Hardness95 Shore A
Wheel Bearing TypeTapered Roller
Mounting Plate Size8 1/2 in x 8 1/2 in
Swivel Lock Type4-Position Swivel Lock
Wheel Bearing Material, Caster Frame MaterialSteel
Caster Product GroupSwivel Caster with 4-Position Directional Lock and Brake
Swivel Radius8 1/2 in
Number of Mounting Holes4
ItemEasy-Turn Standard Plate Caster
Tread ShapeStandard
Frame FinishPowder Coated
TreadFlat
Brake LocationFace
Inside Bolt Hole Spacing, Outside Bolt Hole Spacing7 in x 7 in
ApplicationAerospace Tooling, All Purpose Industrial/Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Mounting Plate Bolt Hole PatternD
Caster Mounting TypePlate
Wheel TypeFlat-Free
Swivel Bearing Seal TypeOpen
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG9073730111 @ $1143.00
Grainger55HA3711
