Where can I buy YA362NNT?

YA362NNT is available from Megadepot, usmegastore.com, Platt.com, Galco. See pricing comparison above.

What is the price of YA362NNT?

Pricing ranges from $79.79 to $128.06 depending on quantity and distributor.

Is YA362NNT in stock?

Yes, YA362NNT is currently in stock at multiple distributors with immediate availability.

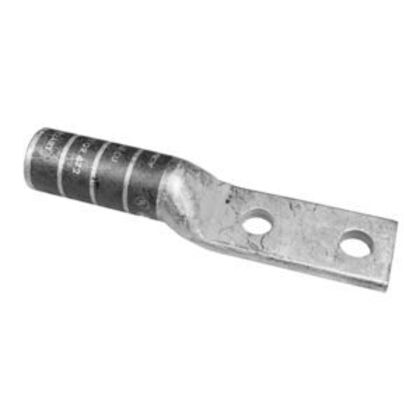

Burndy 10030324 Cu Compression Lug, 2 Hole, 600 Kcmil YA362NNT. ✅$30 OFF Orders over $999 ✅. Save Now! ☎ (800) 884-5767 Mon-Fri 8:00 AM

Name: Burndy 10030324 Cu Compression Lug, 2 Hole, 600 Kcmil YA362NNT. ✅$30 OFF Orders over $999 ✅. Save Now! ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
Brand: Burndy
Availability: OutOfStock

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer	Burndy
DimensionUnit	mm
diameter, height	30.225999999999996
height_Attrib	Dimension - Outside Diameter inch
length	167.0
length_Attrib	Dimension - L Length Overall mm
moq, multiple	1
MPN, SKU	YA362NNT
qtyInStock	0
snippet	Burndy 10030324 Cu Compression Lug, 2 Hole, 600 Kcmil YA362NNT. ✅$30 OFF Orders over $999 ✅. Save Now! ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
width	37.337999999999994
width_Attrib	Dimension - Pad Width inch
Color Code	Green
Connector Type	Terminal
Die Index	22;472
Feature - Barrel Style	Chamfered
Feature - Barrel Type	Long
Material	Copper
Physical Attribute - Number of Holes	2
Plated	Y
Plating Type	Tin - Electro Plated
Trade Name	HYLUG™
Dimension - B Length fraction	2-11/16 in
Dimension - B Length inch	2.69 in
Dimension - Bolt Hole Size inch	0.52 in
Dimension - Bolt Size fraction	1/2
Dimension - D inch	3.02 in
Dimension - L Length Overall mm	167 mm
Dimension - Length Overall inch	6.59 in
Dimension - N inch	0.63 in
Dimension - Outside Diameter inch	1.19 in
Dimension - Pad Width inch	1.47 in
Dimension - Strip Length inch	2-3/4 in
Dimension - Z inch	0.64 in
Physical Attribute - Tongue Angle	Straight
Rating - KVA	35 kV
Rating - Minimum Voltage	600
Voltage - Maximum	35000
Conductor - Copper DLO Size Range	N/A
Conductor - Copper Str Size, Conductor - Copper Str Size Range	600 kcmil
Certification - CSA Approved, UL Listed	Yes
Certification - UL Recognized, Certification - cULus	No
Standards - RoHS Compliance Status	CM

Distributor offers

Seller	SKU	MOQ	In stock	Multiple	Prices
Megadepot	YA362NNT	1		1
usmegastore.com	YA362NNT	1	-2	1	1 @ $79.79
Platt.com	2095228	1		1
Galco	YA362NNT-BURN	20		20	1 @ $128.06
