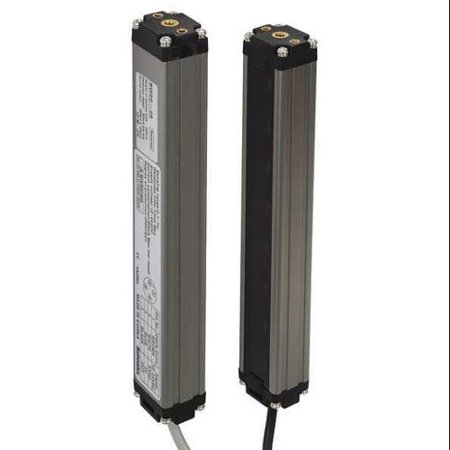

Photoelectric Area Sensor, Housing Material Aluminum, IP Rating 65, Beam Spacing 20mm, Sensing Range 0.10 to 7.00m, Number of Beams 8, Sensing Height 160mm, Circuit Type NPN Open Collector, Power Source 12 to 24VDC, Cable Connection 4 Pin M12, Cable Length 300mm, Light Source Infrared LED, Response Time 12 msec, Current Consumption 80mA, Max. Load Voltage 30VDC, Max. Load Current 100mA, Output Mode Light-On, Overall Height 180mm, Width 28.6mm, Depth 22.6mm Features Circuit Type: NPN Open Collector Depth: 22.6mm Includes: Emitter, Receiver and Instructions Item: Photoelectric Area Sensor Width: 28.6mm Cable Connection: 4 Pin M12 Current Consumption: 80mA Housing Material: ALuminum Number of Beams: 8 Output Mode: Light-On Overall Height: 180mm Power Source: 12 to 24VDC Operating Temp. Range: -20 to 60 Degrees C Response Time: 12 msec Light Source: Infrared LED IP Rating: 65 Cable Length: 300mm Beam Spacing: 20mm Max. Load Voltage: 30VDC Max. Load Current: 100mA Min. Target Size: Opaque Material 30mm Sensing Range: 0.10 to 7.00m Sensing Height: 160mm

Photoelectric Area Sensor, Housing Material Aluminum, IP Rating 65, Beam Spacing 20mm, Sensing Range 0.10 to 7.00m, Number of Beams 8, Sensing Height 160mm, Circuit Type NPN Open Collector, Power Source 12 to 24VDC, Cable Connection 4 Pin M12, Cable Length 300mm, Light Source Infrared LED, Response Time 12 msec, Current Consumption 80mA, Max. Load Voltage 30VDC, Max. Load Current 100mA, Output Mode Light-On, Overall Height 180mm, Width 28.6mm, Depth 22.6mm Features Circuit Type: NPN Open Collector Depth: 22.6mm Includes: Emitter, Receive
