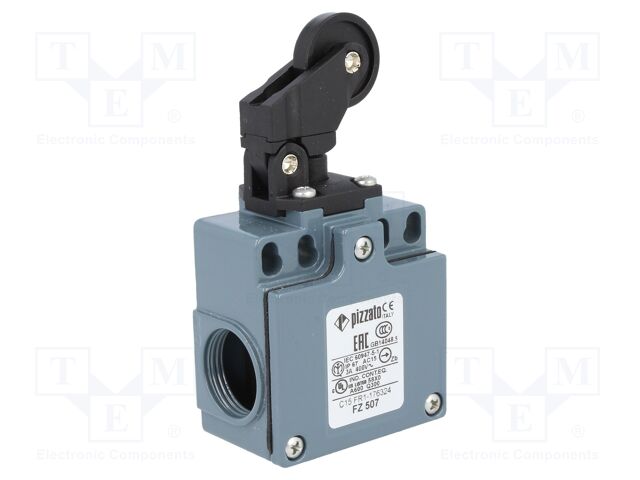

PIZZATO ELETTRICA FZ 507 | Limit switch; plastic roller ?22mm; NO + NC; 10A; max.500VAC
PIZZATO ELETTRICA FZ 507 | Limit switch; plastic roller ?22mm; NO + NC; 10A; max.500VA
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | PIZZATO ELETTRICA |
|---|---|
| CategoryL1 | Automation |
| CategoryL2 | Regulation and Control |
| CategoryL3 | Limit Switches |
| Extra Product Name | PIZZATO ELETTRICA FZ 507 | Limit switch; plastic roller ?22mm; NO + NC; 10A; max.500VAC |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | b4f2914a7801ebd02be7bcfcc53fa13d. |
| jsonUrlData2 | 42d8d3526b0fccaddbe2 |
| keywords | PIZZATO ELETTRICA, FZ 507, FZ507, Automation, Regulation and Control, Limit Switches |
| MPN | FZ 507 |
| qtyInStock | 3 |
| SKU | FZ507 |
| snippet | PIZZATO ELETTRICA FZ 507 | Limit switch; plastic roller ?22mm; NO + NC; 10A; max.500VA |
| tierMinQty2 | 5 |
| tierMinQty3 | 10 |
| tierPrice1 | 16.2 |
| tierPrice2 | 15.12 |
| tierPrice3 | 14.04 |
| Type of sensor | limit switch |
| Kind of actuator | plastic roller ?22mm |
| Output configuration | NO + NC |
| Contact current max | 10A |
| Switched voltage | max. 250V DC, |
| Connection | PG13,5 |
| IP rating | IP67 |
| Body dimensions | 44.5x50x31.5mm |
| Number of mounting holes | 4 |
| Operating temperature | -25...80?C |
| Body material | metal |
| AC contacts rating @R | 6A / 250V AC |
| DC contacts rating @R | 6A / 24V DC |
| Mechanical durability | 20000000 cycles |
| Mounting holes pitch | 20...22mm, |
| Switches features | snap action contacts |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| FZ507 | 1 | 3 | 1 | 1 @ $16.20, 5 @ $15.12, 10 @ $14.04 | |
| FZ 507 | 1 | 1 | 1 @ $27.34 |
