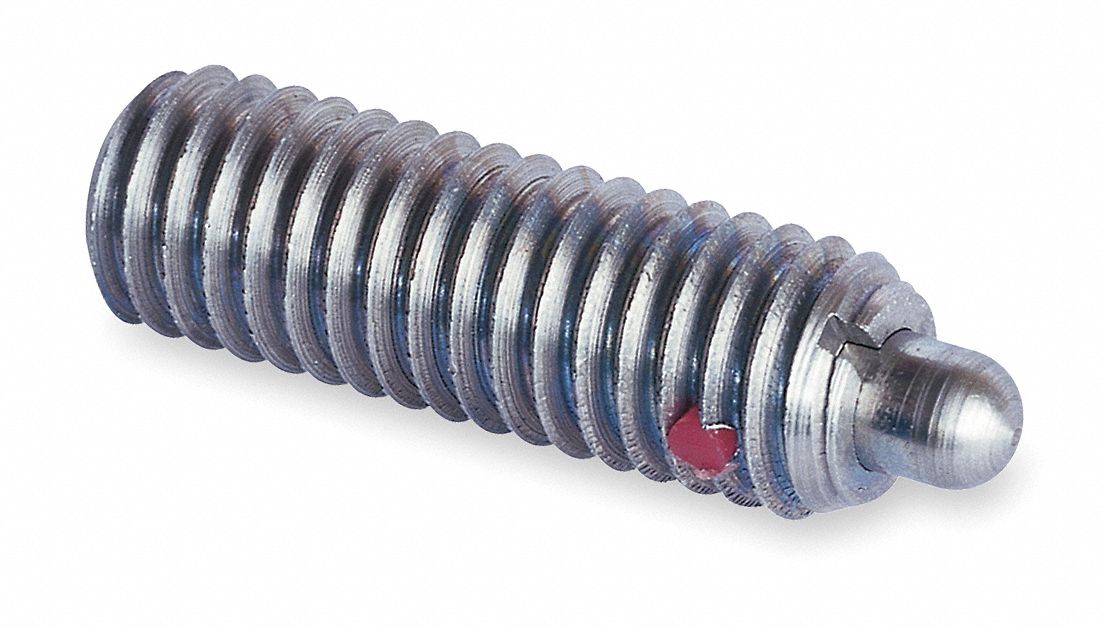

Spring Plunger, Thread Size M12x1.75, Thread Length 20.00mm, Plunger Material Stainless Steel, Plunger Dia. 0.2360 in, Plunger Projection 0.1570 in, Mounting Type Threaded, Body Length 20.00mm, Final Nose Force 12.3 lb, Initial Nose Force 0.51 lb, Overall Length 20.00mm, Thread Pitch 1.75mm, Handle Type Hex Socket Drive, Application Indexing Stop or Latch to Eject Parts in Fixtures or Dies, Body Finish Black Oxide, Body Material Stainless Steel, Retractable No, Thread Fully Threaded

Spring Plunger, Thread Size M12x1.75, Thread Length 20.00mm, Plunger Material Stainless Steel, Plunger Dia. 0.2360 in, Plunger Projection 0.1570 in, Mounting Type Threaded, Body Length 20.00mm, Final Nose Force 12.3 lb, Initial Nose Force 0.51 lb, Overall Length 20.00mm, Thread Pitch 1.75mm, Handle Type Hex Socket Drive, Application Indexing Stop or Latch to Eject Parts in Fixtures or Dies, Body Finish Black Oxide, Body Material Stainless Steel, Retractable No, Thread Fully Threaded

Te-Co . 63727X01

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerTe-Co
CategoryId, CategoryIdL26095
CategoryIdL18
CategoryL1Tools & Machining
CategoryL2Workholding & Machine Tool Accessories
CategoryL3Spring Plungers
DimensionUnitinch
GTIN, UPCNone
GraingerSku45RF26
UnitOfMeasurePK
Weight0.23
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
height6
jsonUrlData924526ffbdad25e5923b
length4
moq, multiple, tierMinQty1, width1
MPN63727X01
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG3361596
tierPrice139.29
urlhttps://www.zoro.com/te-co-plunger-ss-1-764inl-m12x175-std-pk5-63727x01/i/G3361596/
Body Length (In )1-7/64
Plunger Dia (In )0.236
Thread SizeM12x1.75
Body Width (In )0.472
Plunger Dia0.2360 in
Body Length, Overall Length, Thread Length20.00mm
Body Dia0.4720 in
Material, Ball Material, Spring, Body MaterialStainless Steel
BodyStainless steel
FunctionCan be Used As Indexing Stop or Latch to Eject Parts in Fixture or Die
End Force Final (Lb )12.30
TypeWithout Locking Element
ItemSpring Plunger
Plunger Travel (In )0.157
End Force Initial (Lb )0.51
ForceStandard
Final Nose Force12.3 lb
Thread Pitch1.75mm
Initial Nose Force0.51 lb

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG3361596111 @ $39.29
Grainger45RF26111 @ $68.85
sustainablesupply.comC30480711-211 @ $75.46
