OA254AP-11-1WB Orion Fans | Fans, Thermal Management | DigiKey

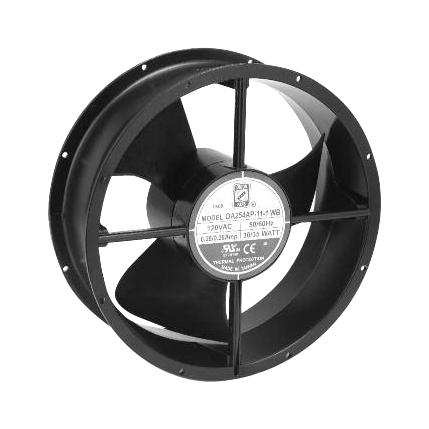

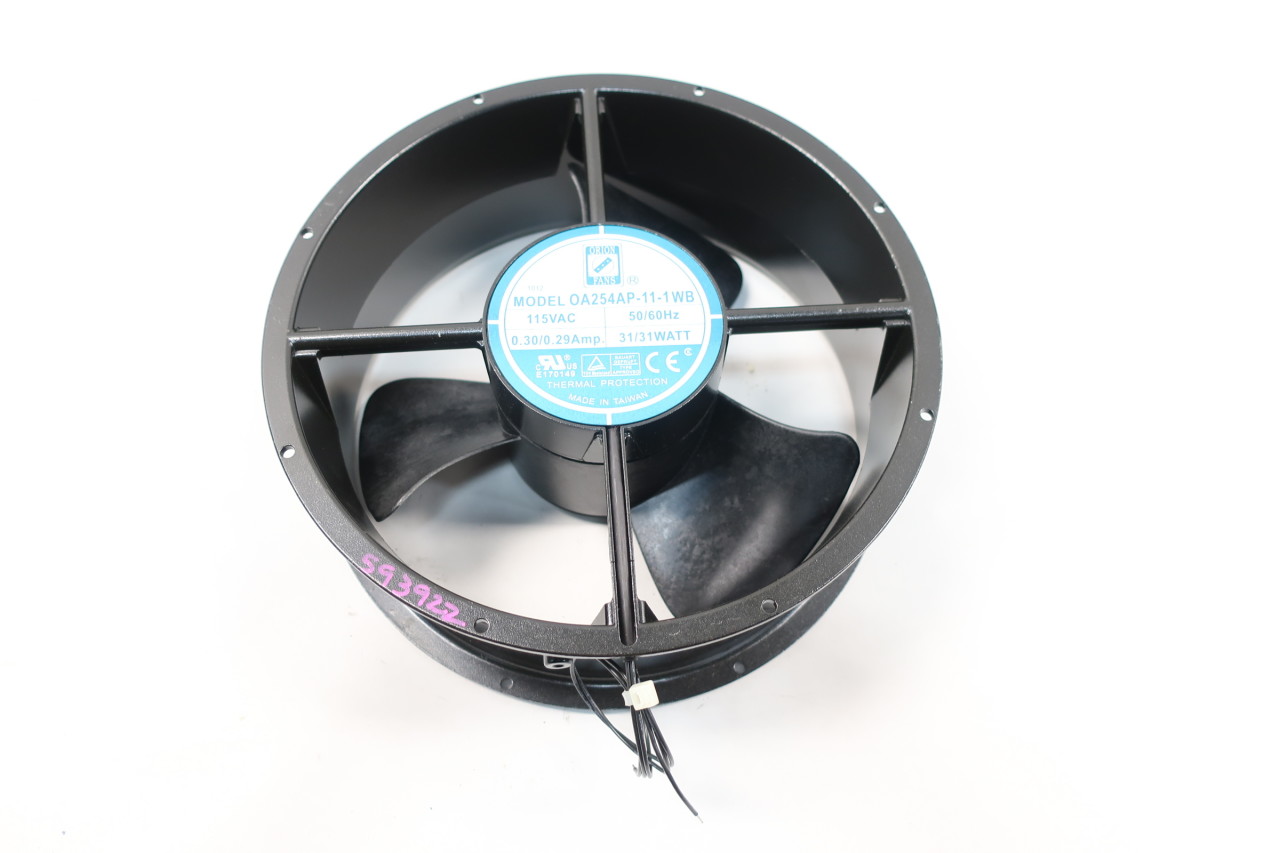

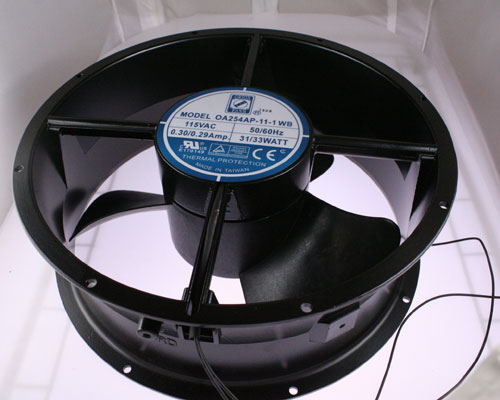

The Orion OA254AP-11-1WB fan operates at 115 Vac, 50/60 HZ, with a current draw of 0.30/0.29 Amp and a power consumption of 31 Watt. It features a dual ball bearing design and a maximum airflow of 547 CFM. The fan measures 254 x 89 mm and has a speed of 1650 RPM.
OA254AP-11-1WB In-Stock. Request a quote for the part number# OA254AP-11-1WB. Call 877-240-8595 to order. Same day shipping on in-stock parts.
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Orion Fans |
|---|---|
| Extra Product Name | OA254AP-11-1WB Orion Fans | Fans, Thermal Management | DigiKey |
| atoms, minimum, moq, multiple | 1 |
| MPN | OA254AP-11-1WB |
| qtyInStock | 48 |
| SKU | 1053-1067-ND |
| Part Status | Active |
| Voltage - Rated | 115VAC |
| Size / Dimension | Round - 254mm Dia |
| Width | 89.00mm |
| Air Flow | 547.0 CFM (15.32m?/min) |
| Static Pressure | 0.390 in H2O (97.1 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features, Ingress Protection, Weight, Current Rating (Amps) | - |
| Noise | 55.0dB |
| Power (Watts) | 35.00W |
| RPM | 1650 RPM |
| Termination | 2 Wire Leads |
| Operating Temperature | -4 ~ 176?F (-20 ~ 80?C) |
| Approval Agency | cURus, TUV |
| Voltage Range | 80 ~ 130VAC |
| Material - Frame | Aluminum |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Lifetime @ Temp | 60000 Hrs @ 40?C |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 1053-1067-ND | 1 | 48 | 1 | |
 arcade-electronics.com | ORI-OA254AP-11-1WB | 1 | -2 | 1 | 1 @ $90.43 |
 Carlton Bates Company | 40308498900 | 1 | 1 | 1 @ $71.95 | |
| D673814 | 1 | 1 | 1 @ $76.40 | ||
| Accessotronik | OA254AP-11-1WB | 1 | 1 | ||
| OA254AP111WB | 1 | 1 | |||
 AmazonTP | B00DBLIDV8 | 1 | 1 | 1 @ $74.78 | |
 Newark | 89AH2436 | 1 | 1 | 1 | 1 @ $113.94, 5 @ $110.78, 10 @ $105.08, 25 @ $98.12, 50 @ $92.42, 100 @ $86.09 |
| Digi-Key | 2620972 | 1 | 219 | 1 | 1 @ $105.01, 10 @ $94.38, 25 @ $93.05, 50 @ $87.07, 100 @ $85.08 |
| 2031000779 | 1 | we are sorry | 1 | 1 @ $60.99 | |
 Onlinecomponents.com | OA254AP-11-1WB | 1 | 104 | 1 | 1 @ $72.80, 10 @ $63.35, 100 @ $53.51, 1000 @ $52.32, 10000 @ $52.32 |
| Hutch and Son | OA254AP-11-1WB | 1 | 1 | ||
 Galco | OA254AP-11-1WB-ORIN | 1 | 13 | 1 | 1 @ $120.57 |
 jensentools.com | 10141743 | 1 | 1 | 1 @ $105.50 | |
| us.rs-online.com | 70103671 | 1 | 176 | 1 | 1 @ $106.08, 10 @ $95.34, 25 @ $94.00 |
 Newark | 83AK2415 | 1 | 1 | 1 @ $108.65, 5 @ $102.37, 10 @ $97.97, 25 @ $93.58, 50 @ $91.07, 100 @ $87.93 |
