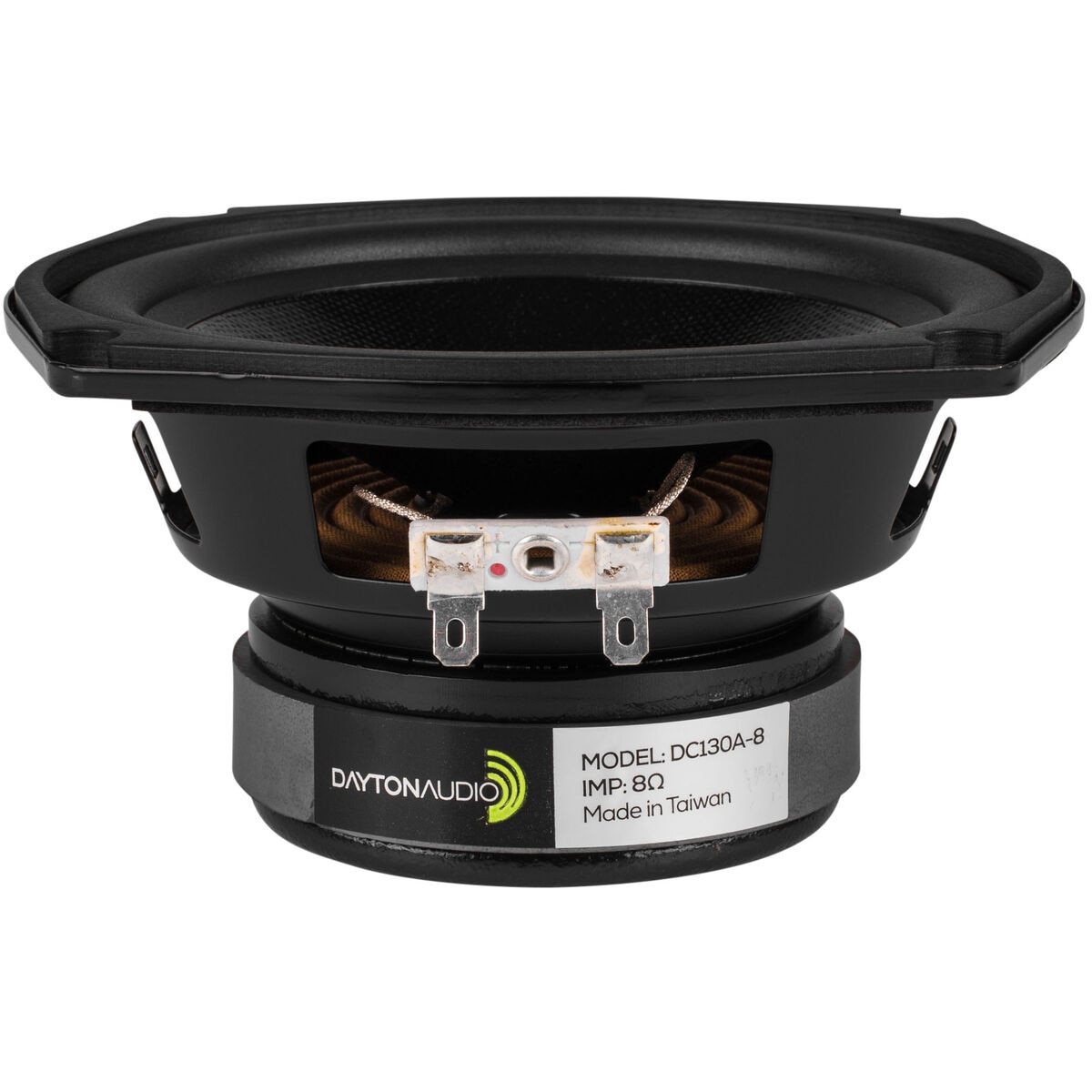

Dayton Audio DC130A-8 5-1/4" Classic Woofer Speaker

Dayton Audio DC130A-8 5-1/4" Classic Woofer Speaker. Part Number: 295-303 by Dayton Audio.

Dayton Audio . DC130A-8

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandDayton Audio
DimensionUnitinch
Extra Product NameDayton Audio DC130A-8 5-1/4" Classic Woofer Speaker
UPC844632093968
Weight2
WeightUnitlbs
depth, length2.74
diameter, height, width5.28
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple, tierMinQty11
MPN, ModelDC130A-8
qtyInStock-2
qtySourceFieldMap
SKU, Part Number295-303
snippetDayton Audio DC130A-8 5-1/4" Classic Woofer Speaker. Part Number: 295-303 by Dayton Audio.
tierMinQty2, # Mounting Holes4
tierPrice124.98
tierPrice222.48
Unit of MeasureEach
Nominal Diameter5-1/4"
Power Handling (RMS)40 Watts
Power Handling (MAX)60 Watts
Impedance8?
Frequency Response50 to 5,000Hz
Sensitivity88.7dB 2.83V/1m
Voice Coil Diameter1"
Resonant Frequency (Fs)53.2Hz
DC Resistance (Re)5.7?
Voice Coil Inductance (Le)0.75mH
Mechanical Q (Qms)1.9
Electromagnetic Q (Qes)0.51
Total Q (Qts)0.41
Compliance Equivalent Volume (Vas)0.49ft?
Mechanical Compliance of Suspension (Cms)0.96mm/N
BL Product (BL)5.88T?m
Diaphragm Mass Inc Airload (Mms)9.3g
Maximum Linear Excursion (Xmax)2.5mm
Surface Area of Cone (Sd)91.6cm?
Cone MaterialCoated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter5.28"
Baffle Cutout Diameter4.72"
Depth2.74"
Sealed Volume0.12ft?
Sealed F3120Hz
Vented Volume0.4ft?
Vented F355Hz
