LM2991T/LF03 Texas Instruments | Integrated Circuits (ICs) | DigiKey Marketplace
Linear Voltage Regulator IC Negative Adjustable 1 Output 1A TO-220-5
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Texas Instruments |
|---|---|
| Extra Product Name | LM2991T/LF03 Texas Instruments | Integrated Circuits (ICs) | DigiKey Marketplace |
| atoms, moq, multiple, tierMinQty1, Number of Regulators | 1 |
| extraShipping | 12.0 |
| MPN | LM2991T/LF03 |
| packaging | Tube |
| qtyInStock | 0 |
| SKU | 13517189 |
| snippet | Linear Voltage Regulator IC Negative Adjustable 1 Output 1A TO-220-5 |
| tierMinQty2 | 10 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierMinQty5 | 250 |
| tierMinQty6 | 500 |
| tierMinQty7 | 1,000 |
| tierPrice1 | 3.96000 |
| tierPrice2 | 3.55200 |
| tierPrice3 | 3.35800 |
| tierPrice4 | 2.91030 |
| tierPrice5 | 2.76108 |
| tierPrice6 | 2.47752 |
| tierPrice7 | 2.25280 |
| Category | Integrated Circuits (ICs) |
| Series | - |
| Product Status | Active |
| Output Configuration | Negative |
| Output Type | Adjustable |
| Voltage - Input (Max) | -26V |
| Voltage - Output (Min/Fixed) | -3V |
| Voltage - Output (Max) | -24V |
| Voltage Dropout (Max) | 1V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 0.7 mA |
| Current - Supply (Max) | 5 mA |
| PSRR | 60dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | -40?C ~ 125?C |
| Mounting Type | Through Hole |

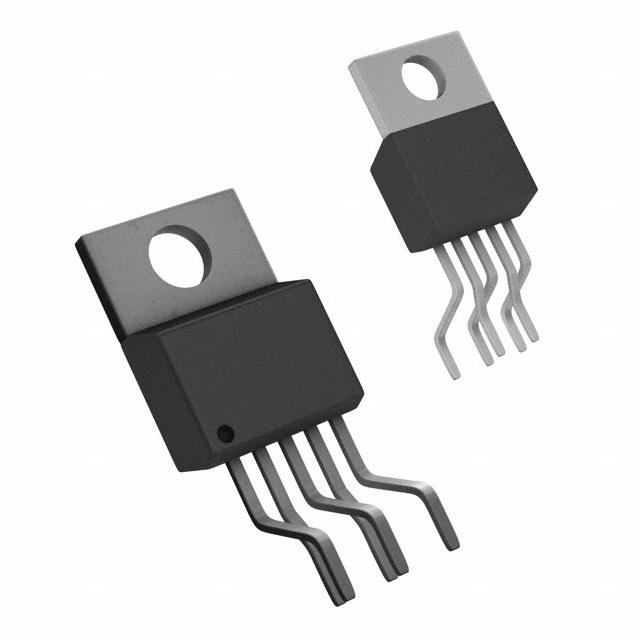

| Package / Case | TO-220-5 Formed Leads |
| Supplier Device Package | TO-220-5 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 13517189 | 1 | 1 | 1 @ $3.96, 10 @ $3.55, 25 @ $3.36, 100 @ $2.91, 250 @ $2.76, 500 @ $2.48, 1000 @ $2.25 | |
| Win Source | LM2991T/LF03 | 1 | 4995 | 1 | |
| Hotenda | H2791959 | 1 | 1 | 1 @ $3.05, 10 @ $2.74, 100 @ $2.25, 500 @ $1.91 | |
 iodParts | LM2991T/LF03 | 1 | 1 | ||
| 3640778 | 1 | 1043 | 1 | 1 @ $3.41, 10 @ $3.07, 25 @ $2.90, 100 @ $2.51, 250 @ $2.38, 500 @ $2.14, 1000 @ $1.80, 2500 @ $1.71, 5000 @ $1.65 | |
| Newark | 65K6065 | 1 | 1 |
