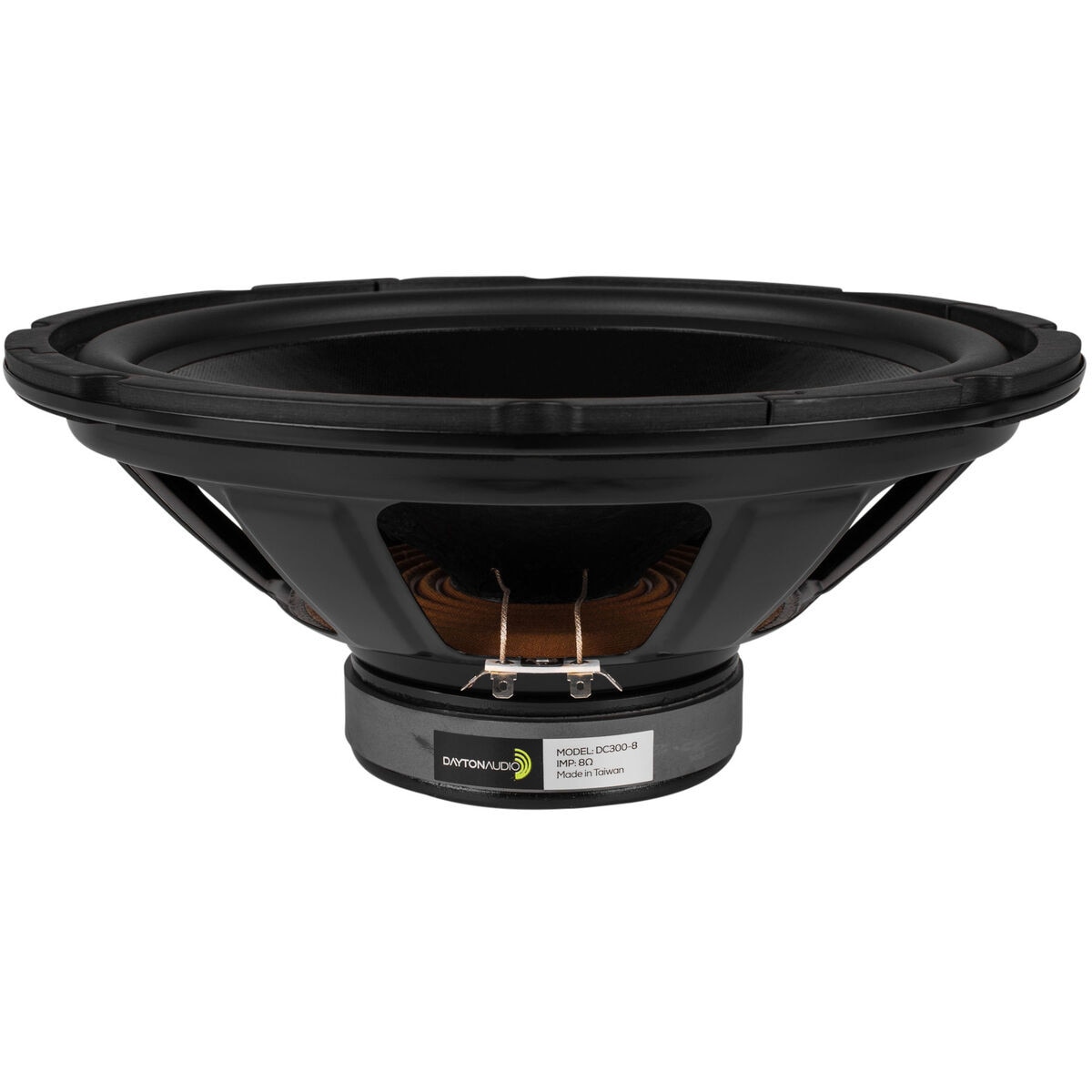

Dayton Audio DC300-8 12" Classic Woofer

Dayton Audio DC300-8 12" Classic Woofer. Part Number: 295-320 by Dayton Audio.

Dayton Audio . DC300-8

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandDayton Audio
DimensionUnitinch
Extra Product NameDayton Audio DC300-8 12" Classic Woofer
UPC844632000270
Weight7.8
WeightUnitlbs
depth, length5.18
diameter, height, width12.07
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple, tierMinQty11
MPN, ModelDC300-8
qtyInStock-2
qtySourceFieldMap
SKU, Part Number295-320
snippetDayton Audio DC300-8 12" Classic Woofer. Part Number: 295-320 by Dayton Audio.
tierMinQty24
tierPrice159.98
tierPrice249.48
Unit of MeasureEach
Nominal Diameter12"
Bolt Circle Diameter11.5
Power Handling (RMS)80 Watts
Power Handling (MAX)160 Watts
Impedance8?
Frequency Response25 to 2,500Hz
Sensitivity90.3dB 2.83V/1m
Voice Coil Diameter2"
Resonant Frequency (Fs)22.9Hz
DC Resistance (Re)6.8?
Voice Coil Inductance (Le)2.93mH
Mechanical Q (Qms)3.21
Electromagnetic Q (Qes)0.37
Total Q (Qts)0.33
Compliance Equivalent Volume (Vas)6.41ft?
Mechanical Compliance of Suspension (Cms)0.48mm/N
BL Product (BL)16.3T?m
Diaphragm Mass Inc Airload (Mms)100.7g
Maximum Linear Excursion (Xmax)4.3mm
Surface Area of Cone (Sd)498.8cm?
Cone MaterialTreated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter12.07"
Baffle Cutout Diameter11"
Depth5.18"
# Mounting Holes8
Sealed Volume0.9ft?
Sealed F364Hz
Vented Volume2.75ft?
Vented F334Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com295-3201-211 @ $59.98, 4 @ $49.48
