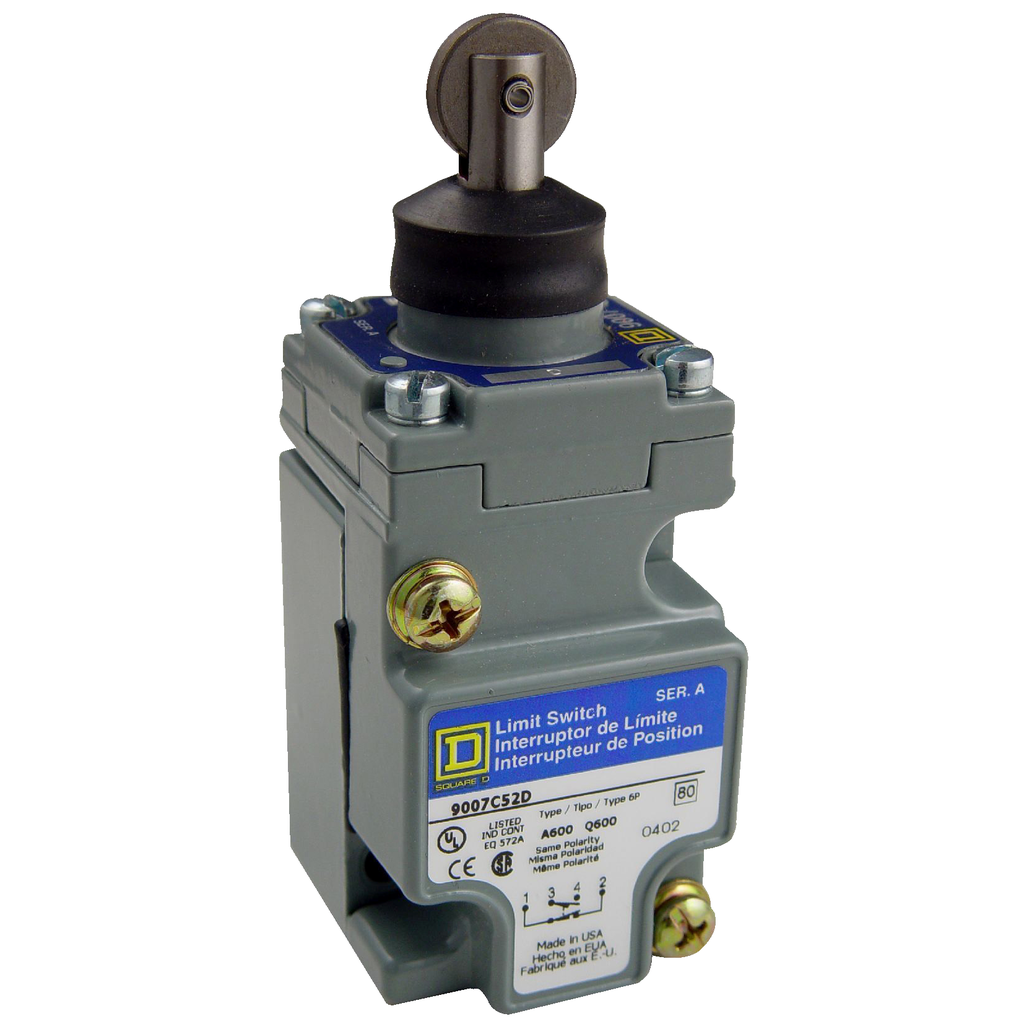

Limit switch, 9007, 9007C compact 1 NO/NC, top roller plunger | Mayer Electric

Mayer Electric Supply . 9007C52DM11

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitinch
Extra Product NameLimit switch, 9007, 9007C compact 1 NO/NC, top roller plunger | Mayer Electric
UPC785901102755
Weight1.25
WeightUnitlbs
Weight_AttribNet Weight
depth, length1.79
height7.56
height_AttribHeight
jsonUrlData/Product/SQUARE-D-9007C-compact-limit-switch-1-NO-NC-top-roller-plunger-785901102755
jsonUrlData2d0127d34-cfa2-4ba7-b1c5-abd200617cc0
length_AttribDepth
moq, multiple, tierMinQty1, Sale Per Indivisible Quantity, Number Of Poles1
MPN9007C52DM11
qtyInStock0
SKUSQD9007C52DM11
tierPrice1305.50
width1.55
width_AttribWidth
Switch Actuationby 30? cam
Type Of Approachlateral approach, 2 directions
Series Nameheavy duty
Contacts Type And CompositionNC-NO
Movement Of Operating Headlinear
Body Typeplug-in
Range Of Product9007
Positive Opening, Local Signallingwithout
Electrical Connectionscrew-clamp terminals AWG 22...AWG 12), 1-2
Contact Operationsnap action
Product Specific Applicationcompact box
Fixing Modeby the body
Cable Entry1 entry for M20 x 1.5 mm BS 4568
Product Or Component Typelimit switch
Materialmetal
Device Short Name9007C
Type Of Operatorsteel spring return roller plunger -)
Head Typeplunger head
Warranty18 months
Height3.78-3.78 in
Terminals Description Iso N?1(1-2)NC || (3-4)NO
[Ui] Rated Insulation Voltage600 V 3)UL 508 contact block || 600 V 3)CSA C22.2 No 14 contact block
Short-Circuit Protection10 A CC non-time delay
[Ie] Rated Operational Current1.2 A 600 V AC, A600 NEMA || 1.5 A 480 V AC, A600 NEMA || 3 A 240 V AC, A600 NEMA || 6 A 120 V AC, A600 NEMA || 0.1 A 600 V DC, Q600 NEMA || 0.27 A 250 V AC, Q600 NEMA || 0.55 A 125 V DC, Q600 NEMA
Contacts Materialsilver contacts
Mechanical Durability10000000 cycles
Body Material, Head Materialzinc
[Ithe] Conventional Enclosed Thermal Current10 A
Contact FormForm Z
Switch FunctionSPDT-DB
Minimum Force For Tripping3 lbf
[Uimp] Rated Impulse Withstand Voltage2.5 kV AC 1 min CE || 2.2 kV AC 1 min UL || 2.64 kV AC 1 s CSA
Width1.55 in
Depth1.79 in
Electrical Durability1000000 cycles
Net Weight1.25 lb(US)
Repeat Accuracy+/- 0.001 in linear travel of cam
Environmental DisclosureENVPEP111160EN
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
Reach RegulationReference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-20-185 ?F
Environmental Characteristicstandard environment
Nema Degree Of ProtectionNEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250
Ambient Air Temperature For Operation-20-185 ?F standard environment
Electrical Shock Protection Classclass 0 IEC 61140
Shock Resistance60 gn 9 ms IEC 60068-2-27
Vibration Resistance25 gn 10-150 Hz)IEC 60068-2-6
Protective Treatmentepoxy powder coat
Ip Degree Of ProtectionIP67 conforming to IEC 60529

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQD9007C52DM11111 @ $305.50
