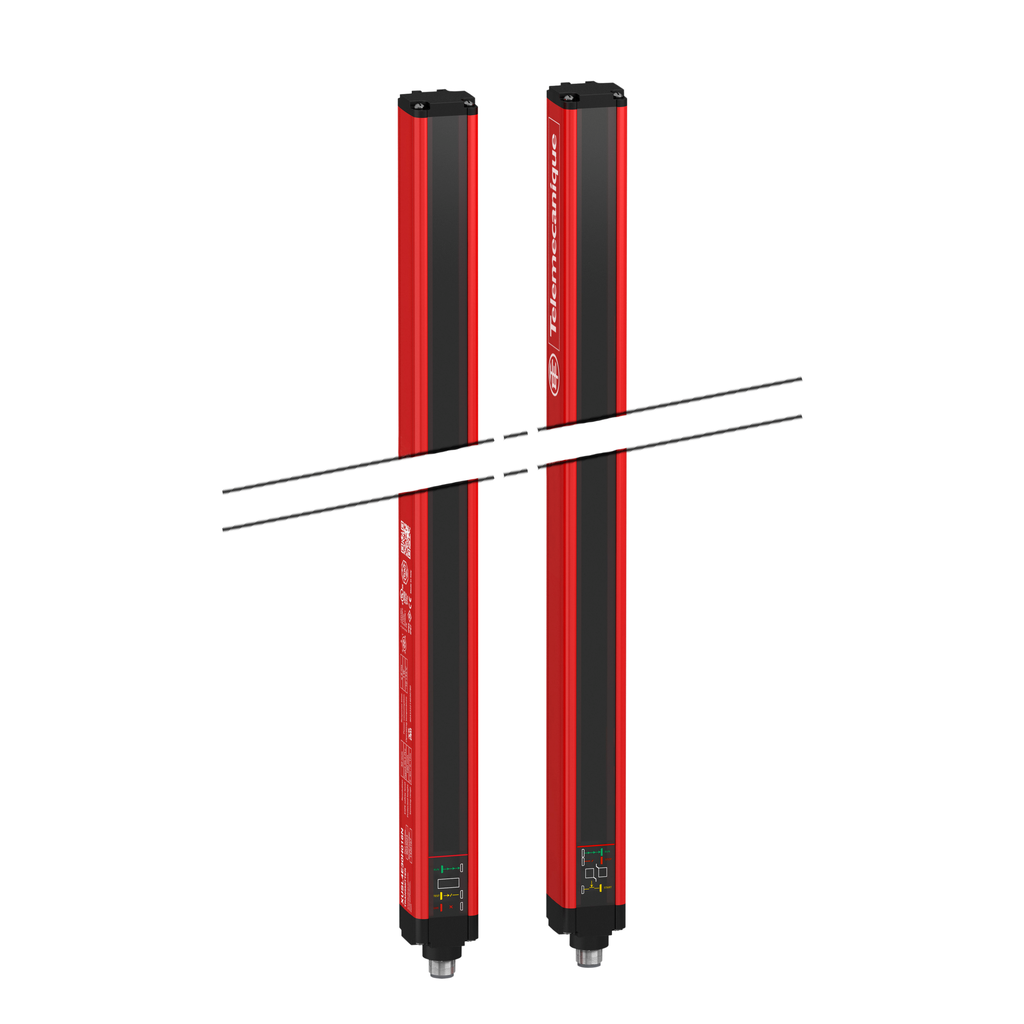

Safety light curtain type 2, Telemecanique Safety light curtains XUSL, XUSL Hand protection, Std sensing range, Hp = 910 mm, R=30 mm | Mayer Electric

SQUARE D . SQDXUSL2E30H091N

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameSafety light curtain type 2, Telemecanique Safety light curtains XUSL, XUSL Hand protection, Std sensing range, Hp = 910 mm, R=30 mm | Mayer Electric
UPC3389119618557
Weight1.7
WeightUnitkg
Weight_AttribNet Weight
diameter, length, width30.0
height910.0
height_AttribHeight Protected
jsonUrlData/Product/SQUARE-D-Safety-light-curtain-type-2-Telemecanique-Safety-light-curtains-XUSL-XUSL-Hand-protection-Std-sensing-range-Hp-910-mm-R30-mm-3389119618557
jsonUrlData22bb02d50-2878-42ba-b082-aeea0058b199
length_Attrib, width_AttribMinimum Object Diameter For Detection
moq, multiple, tierMinQty11
MPN, SKUSQDXUSL2E30H091N
qtyInStock0
tierPrice11284.25
Range Of ProductTelemecanique Safety light curtains XUSL
Product Or Component Typesafety light curtain type 2
Output Type2 safety outputs OSSD solid-state PNP arc suppression)
Type Of Startautomatic || manual
Minimum Object Diameter For Detection30 mm
Height Protected910 mm
Control Typeselected by wiring
Product Specific Applicationfor hand protection
Number Of Beams46
[Sn] Nominal Sensing Distance0-12 m by cabling || 0-4 m by cabling
Device Short NameXUSL2E
Warranty18 months
Electrical Connection1 male connector M12 5 pins transmitter || 1 male connector M12 8 pins receiver
Current Consumption42 mA no-load transmitter || 83 mA no-load receiver || 42 mA transmitter || 900 mA with maximum load receiver
Offer Typestandard distance
Fixing Modeby fixing brackets
EmissionIR LED 950 nm
Response Time13 ms
MarkingCE
Output Current Limits0.4 A safety outputs OSSD
Supplypower supply IEC 61496-1 || power supply IEC 60204-1
Net Weight1.7 kg
Local Signalling1 multi-colour LED transmitter || 2 dual colour LEDs receiver
Function Availabletest || muting through external safety module XPSLCMUT1160 || LED display of operating modes and faults
Housing Colourred RAL 3000
Materialaluminium casing || polycarbonate front panel || polypropylene end caps
[Ie] Rated Operational Current2 A
Kit Compositionadjustable mounting bracket(s) || 1 receiver(s) || 1 transmitter(s) || 1 user guide with certificate of conformity on CD-ROM
Output Voltage24 V
Detection Systemtransmitter-receiver system
Output Circuit TypeDC
[Eaa] Effective Aperture Angle5 ? at 3 m
[Us] Rated Supply Voltage24 V DC +/- 20 %
Rohs Exemption Information, Mercury Free, Toxic Heavy Metal Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1406015EN
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1406015EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Product CertificationsCE || cULus || T?V
Ambient Air Temperature For Operation14-131 ?F || -30-55 ?C
Shock Resistance10 gn 16 ms IEC 61496-1
Environmental Characteristicresistance to light disturbance EN/IEC 61496-2
Vibration Resistance0.35 +/- 0.05 mm 10-55 Hz)IEC 61496-1
Ip Degree Of ProtectionIP65 || IP67
Directives89/655/EEC - work equipment || 98/37/EEC - machinery || 89/336/EEC - electromagnetic compatibility
Ambient Air Temperature For Storage-13-158 ?F || -35-70 ?C
Service Life20 year(s)
Relative Humidity0-95 % without condensation
Safety Reliability DataPFHd = 5.19E-8 1/h IEC 61508
Safety Leveltype 2 IEC 61496-1 || category 2 EN/ISO 13849-1 || SIL 1 IEC 61508 || SILCL 1 IEC 62061 || PL = c EN/ISO 13849-1

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDXUSL2E30H091N111 @ $1284.25
