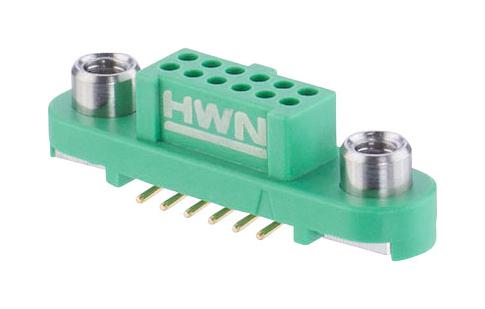

G125-FS11205F2P Harwin Inc. | Connectors, Interconnects | DigiKey

Harwin Inc. . G125-FS11205F2P

Attributes

Brand name, Manufacturer name, Manufacturer, MfrHarwin Inc.
DimensionUnitmm
Extra Product NameG125-FS11205F2P Harwin Inc. | Connectors, Interconnects | DigiKey
atoms, tierMinQty11
extraShipping0
height7.33
height_AttribMated Stacking Heights
moq, multiple, tierMinQty4500
MPNG125-FS11205F2P
qtyInStock25
SKU9739356
tierMinQty210
tierMinQty3100
tierPrice125.68000
tierPrice222.48900
tierPrice320.12900
tierPrice418.50940
CategoryConnectors, Interconnects
SeriesGecko SL Reverse Fix
PackageStrip
Part StatusActive
Connector TypeReceptacle
Contact TypeFemale Socket
StyleBoard to Board or Cable
Number of Positions12
Number of Positions LoadedAll
Pitch - Mating, Row Spacing - Mating0.049" (1.25mm)
Number of Rows2
Mounting TypeSurface Mount
TerminationSolder
Fastening TypeScrew Lock
Contact Finish - Mating, Contact Finish - PostGold
Contact Finish Thickness - Mating, Contact Finish Thickness - Post8.00?in (0.203?m)
Insulation ColorGreen
Insulation Height0.207" (5.25mm)
Contact Length - Post, Ingress Protection, Applications-
Operating Temperature-65?C ~ 150?C
Material Flammability RatingUL94 V-0
Mated Stacking Heights7.33mm, 7.4mm
FeaturesPick and Place, Polarizing Key
Current Rating (Amps)2A
Voltage Rating450V
Insulation MaterialPolyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Contact ShapeCircular
Contact MaterialCopper Alloy
Base Product NumberG125-FS1

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Digi-Key9739356500255001 @ $25.68, 10 @ $22.49, 100 @ $20.13, 500 @ $18.51
Newark84AC1605111 @ $24.95, 10 @ $23.09, 50 @ $20.19, 100 @ $17.75, 250 @ $16.59, 500 @ $16.25, 1000 @ $15.43
