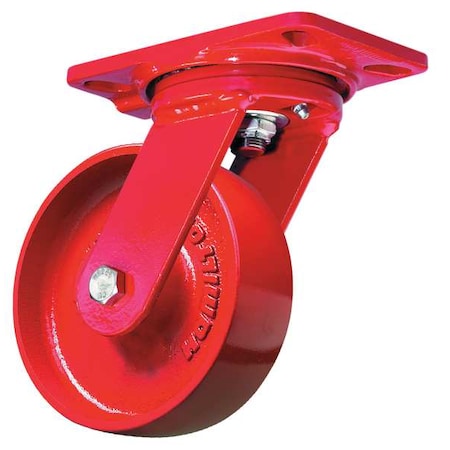

Plate Caster, Swivel, Cast Iron, 8 in, 1500 lb, A

Zoro Select . S-HS-8MB-4SL-FB

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerZoro Select
DimensionUnitinch
GraingerSku6AZK9
Extra Product NamePlate Caster, Swivel, Cast Iron, 8 in, 1500 lb, A
WeightUnitlbs
countryOfOrigin, Country of Origin (subject to change)United States
diameter, length8.0
extendedLead26
extendedQty-2
height9.75
height_AttribOverall Height
length_AttribWheel Dia.
moq, multiple, tierMinQty1, Number of Wheels1
MPNS-HS-8MB-4SL-FB
qtyInStock0
SKUG6688787
tierPrice1178.18
urlhttps://www.zoro.com/value-brand-plte-caster-swvl-cast-irn-8-in-1500-lb-a-s-hs-8mb-4sl-fb/i/G6688787/
width2.0
width_AttribWheel Width
Caster Brake Included, Caster Temp Range AvailableYes
Caster Load Rating RangeMedium-Duty
Caster Sub-TypeSwivel
Caster Wheel Shape, Tread ShapeStandard
Caster Wheel/Tread Material, Caster Core Material, Wheel Core Material, Wheel/Tread MaterialCast Iron
Load Rating1500 lb
Overall Height9-3/4"
Wheel Dia8 in
Wheel Width2 in
Thread Guards, Extended Lead, Non-MarkingNo
Caster Max Temp200 Degrees F
Plate Thickness, Caster Plate Thickness5/16"
Frame MaterialForged Steel
Caster Swivel Lock Type, Swivel Lock Type4-Position Directional Lock
Frame FinishEnamel
Durometer188 BHN
Plate Size, Caster Plate Size4-1/2" x 6-1/2"
Caster Plate Hole Pattern, Plate Caster Bolt Hole PatternA
IncludesSwivel Lock, Brake
Caster Frame MaterialSteel
Caster Raceway, Swivel Raceway TypeSingle Ball
Replacement Wheel4DU79
Caster Min Temp-40 Degrees F
Caster Temp Range-40 Degrees to 200 Degrees F
ApplicationAll Purpose Industrial and Commercial Casters, Casters, Aerospace Tooling, Automotive Assembly Lines, Body Dolly Carts, Engine Dollies, Material Carts, Chassis Rack Carts
ItemPlate Caster
Caster Product GroupSwivel Caster with 4-Position Directional Lock and Brake
Mounting Bolt Dia1/2 in
Wheel Color, Core ColorRed
StandardsICWM
Caster Brake TypeSide Cam
Caster Wheel BearingsBall
Inside Bolt Hole Spacing2 7/16 in x 4 15/16 in
Outside Bolt Hole Spacing3 3/8 in x 5 1/4 in
Load Rating RangeMedium
Mounting Plate Size4 1/2 in x 6 1/2 in
