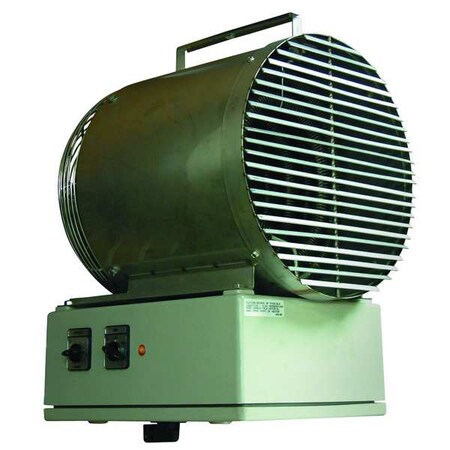

Electric Washdown Heater, 25kW, 27 IN. D

The Washdown Series unit heaters are electric unit heaters constructed for use in areas that require washing or hosing of equipment due to dirty or dusty industrial environments in non-hazardous locations. The totally enclosed water-tight construction made with corrosion-resistant material make this series ideal for industrial heating applications. The Washdown Series is constructed with all built-in controls and safety temperature controls wired in a non-metallic Nema 4x control panel with single-point power connections.- Heavy-duty 304 16 Gauge stainless steel shroud.- 316 stainless construction available.- Nema 4x non-metallic control panel.- 24-Volt transformer and control panel.- 3-position switch (off-heat-fan).- Capillary thermostat with stainless steel sensor.- Automatic reset thermal cutout.- Totally enclosed U.L. listed motor.- Pilot light (power on indicator).- Stainless steel finned tubular element. Constructed of 304 or 316 stainless rod and fins.- Control panel on bottom of unit for ease of installation and service.- Disconnect switch with enclosure door interlock.- Front grill rotates to direct airflow.- Single-point power connection.- Fan Blade Epoxy coated Aluminum.- Meets all U.L., NEC, and OSHA requirements(when installed as directed).- Corrosion-resistant in high humidity and water-saturated areas.???ABS (American Bureau of Shipping) type approved. SPECIFICATIONSEnclosure and Motor:Element housing shall be 16 Gauge 304 or 316 stainless steel shroud. The outlet grill and louver assembly shall be 304/316 stainless steel and rotate for direction of discharge air. The heater shall have a 304/316 stainless steel inlet grill and fan guard. The motor shall be totally enclosed, permanently lubricated and designed to resist moisture and corrosion. The fan blade shall be aluminum with a powder coated epoxy finish.Element: The heating element shall be 304 or 316 stainless steel tube with 304/316 stainless steel fin materia

Electric Washdown Heater 85 325 BtuH Heater Voltage 480VAC 3 Phase Air Flow 1400 cfm 60 Hz 30.1 Amps AC 25 kW Temp Rise 56 Degrees Width 16 In. Depth 27 In. Height 28-13/16 In. Grille Stainless Steal Housing Material 16 Gauge 304 Stainless Steel
