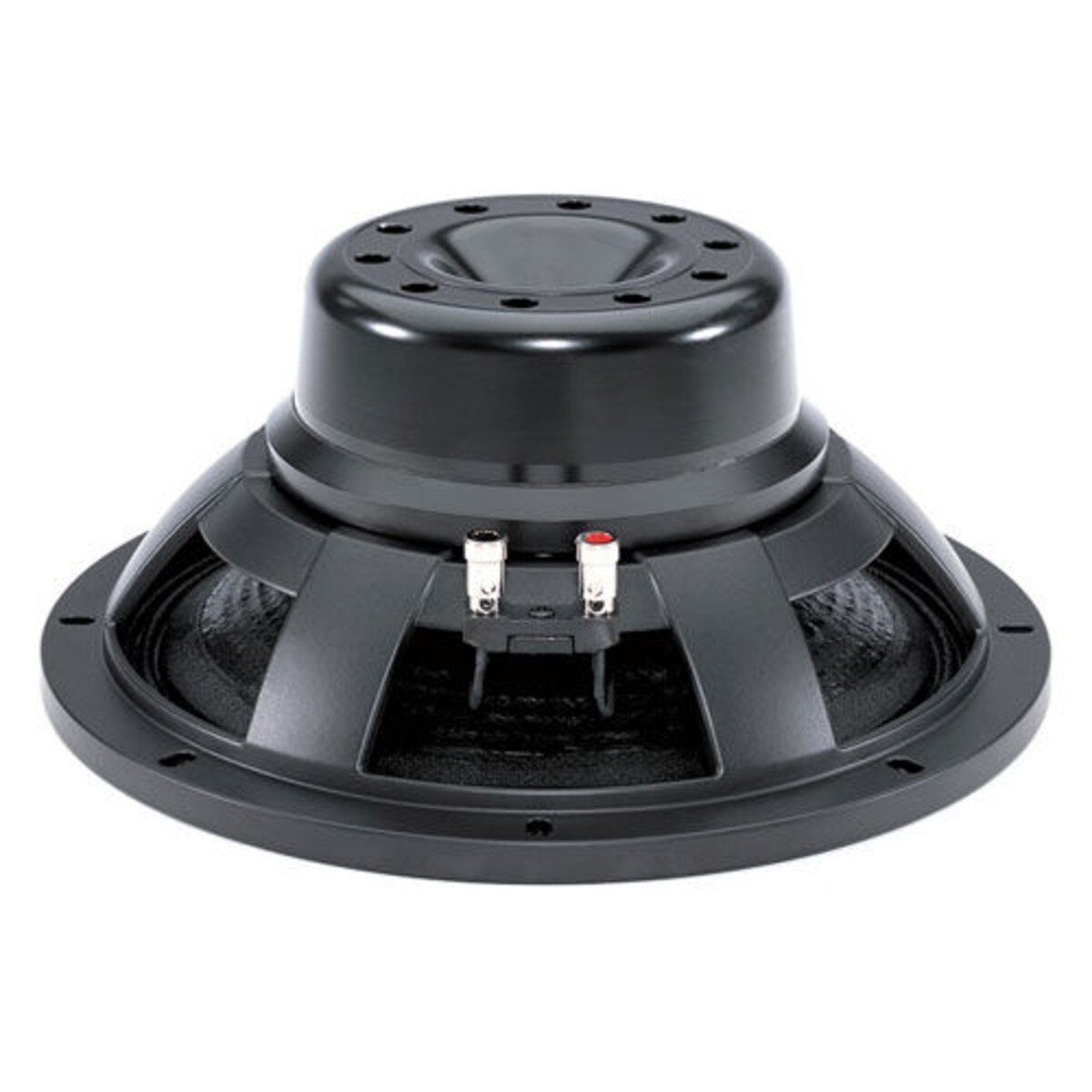

B&C 12NW100 12" Neodymium Subwoofer Speaker

B&C 12NW100 12" Neodymium Subwoofer Speaker. Part Number: 294-571 by B&C Speakers.

B&C Speakers . 12NW100

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandB&C Speakers
DimensionUnitinch
Extra Product NameB&C 12NW100 12" Neodymium Subwoofer Speaker
UPC8059300642009
Weight20.1
WeightUnitlbs
depth, length5.4
diameter, height, width12.5
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, Model12NW100
qtyInStock0
SKU, Part Number294-571
snippetB&C 12NW100 12" Neodymium Subwoofer Speaker. Part Number: 294-571 by B&C Speakers.
Unit of MeasureEach
Nominal Diameter12"
Bolt Circle Diameter11.8
Power Handling (RMS)1000 Watts
Power Handling (MAX)2000 Watts
Impedance8?
Frequency Response45 to 1,500Hz
Sensitivity96dB 2.83V/1m
Voice Coil Diameter4"
Resonant Frequency (Fs)42Hz
DC Resistance (Re)5.1?
Voice Coil Inductance (Le)1.9mH
Mechanical Q (Qms)3.6
Electromagnetic Q (Qes)0.21
Total Q (Qts)0.2
Compliance Equivalent Volume (Vas)1.5ft?
BL Product (BL)28T?m
Maximum Linear Excursion (Xmax)9mm
Surface Area of Cone (Sd)531cm?
Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Magnet MaterialNeodymium
Overall Outside Diameter12.5"
Baffle Cutout Diameter11.1"
Depth5.4"
# Mounting Holes8
Sealed Volume0.09ft?
Sealed F3169Hz
Vented Volume0.17ft?
Vented F3113Hz
