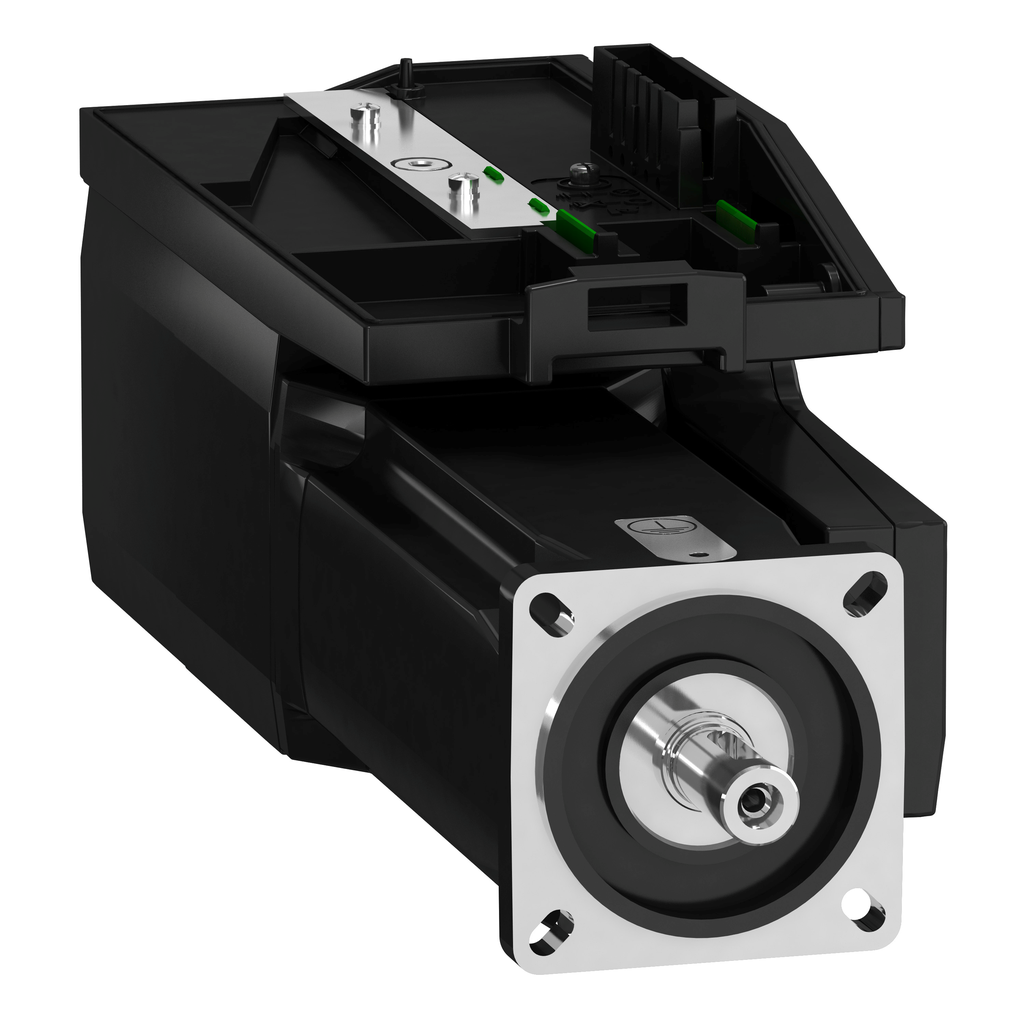

servo motor BMI 3-phase - untapped IP65 multiturn - 32768 p/t x 4096 t - brake | Mayer Electric

SQUARE D . SQDBMI0703P27F

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product Nameservo motor BMI 3-phase - untapped IP65 multiturn - 32768 p/t x 4096 t - brake | Mayer Electric
UPC3606485376516
diameter, height157.0
height_AttribCircle Diameter Of The Mounting Holes
jsonUrlData/Product/SQUARE-D-servo-motor-BMI-3-phase-untapped-IP65-multiturn-32768-p-t-x-4096-t-brake-3606485376516
jsonUrlData2be6b8a62-1235-4a93-8f7a-aeea00551ff7
length339.0
length_AttribLength
moq, multiple, tierMinQty11
MPN, SKUSQDBMI0703P27F
qtyInStock0
tierPrice12160.8
width2.5
width_AttribCentring Collar Depth
Product Or Component Typeservo motor with power stage
Range CompatibilityLexium 32i
Device Short NameBMI
Warranty18 months
Maximum Mechanical Speed8000 rpm
Output Current 3S Peak6 A 400 V 3 s
Stator Electrical Time Constant3.2 ms 20 ?C
Circle Diameter Of The Mounting Holes75-82 mm
Holding Torque3 N.m holding brake
Maximum Radial Force Fr730 N 1000 rpm || 580 N 2000 rpm || 510 N 3000 rpm || 460 N 4000 rpm || 430 N 5000 rpm || 400 N 6000 rpm
Mounting Supportinternational standard flange
Number Of Motor Stacks3
Rotor Inertia1.78 kg.cm?
Number Of Motor Poles10
Back Emf Constant95.39 V/krpm 20 ?C
Maximum Axial Force Fa0.2 x Fr
Centring Collar Depth, Distance Shaft Shoulder-Flange2.5 mm
Holding Brakewith
Speed Feedback Resolution32768 points/turn x 4096 turns
Second Shaftwithout second shaft end
Product Compatibilitydrive control unit LXM32i CANopen || drive control unit LXM32i EtherCAT
Network Frequency Limits47.5-63 Hz
Shaft Length30 mm
Brake Pull-In Power5 W
Phasethree phase
Maximum Current Irms12.5 A 400 V, three phase || 12.5 A 480 V, three phase || 12.5 A 208 V, three phase
Length339 mm
Centring Collar Diameter60 mm
Stator Inductance25.6 mH 20 ?C
Motor Flange Size70 mm
Peak Stall Torque8.6 N.m 208 V three phase || 8.6 N.m 400 V three phase || 8.6 N.m 480 V three phase
Number Of Mounting Holes4
Shaft Diameter14 mm
Nominal Output Power900 W 400 V three phase || 900 W 480 V three phase || 450 W 208 V three phase
[Us] Rated Supply Voltage208...480 V - 15...10 %
Supply Voltage Limits208-480 V
Mounting Holes Diameter5.5 mm
Type Of Coolingnatural convection
Shaft Enduntapped
Nominal Speed3300 rpm 400 V three phase || 1600 rpm 208 V three phase || 3900 rpm 480 V three phase
Electrical Connectionprinted circuit board connector
Feedback Typeabsolute multiturn SinCos Hiperface
Stator Resistance7.99 Ohm 20 ?C
Emc Filterintegrated
Continuous Stall Current2 A
Nominal Torque2.9 N.m 208 V three phase || 2.7 N.m 400 V three phase || 2.3 N.m 480 V three phase
Continuous Output Current2 A 8 kHz
Torque Constant1.41 N.m/A 20 ?C
Supply Frequency50/60 Hz - 5...5 %
Continuous Stall Torque3.4 N.m 208...480 V three phase
Rohs Exemption Information, Mercury Free, Pvc FreeYes
Environmental DisclosureENVPEP1312017EN
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationX
Circularity ProfileENVEOLI1312017EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Ip Degree Of ProtectionIP65

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDBMI0703P27F111 @ $2160.80
