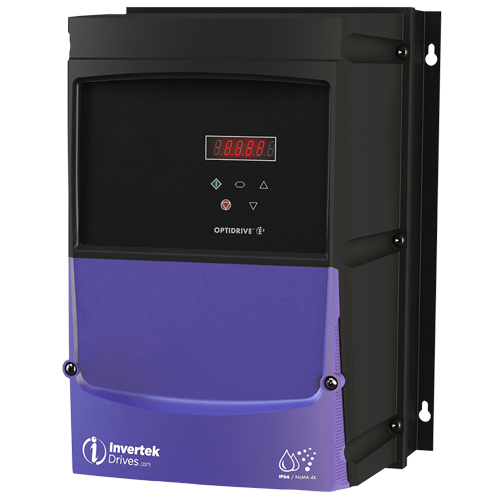

Invertek ODE-3-140022-3F1A 0.75kW 1Hp 2.2A Output Current 380~480V 3Ph Input 380~480V 3Ph Output IP66/NEMA4X Indoor/Outdoor OptiDrive E3 Economy VFD - MROSupply.com

Shop Invertek ODE-3-140022-3F1A and trust MRO to be your reliable Invertek supplier to experience the difference that quality and expertise can make. Trusted since 1898. Fast, Free Shipping.

Invertek . ODE-3-140022-3F1A

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerInvertek
CategoryL1Automation
CategoryL2Speed Controllers & VFDs
CategoryL3AC Vector Drives
CategoryL4Three Phase
DimensionUnitinch
Extra Product NameInvertek ODE-3-140022-3F1A 0.75kW 1Hp 2.2A Output Current 380~480V 3Ph Input 380~480V 3Ph Output IP66/NEMA4X Indoor/Outdoor OptiDrive E3 Economy VFD - MROSupply.com
Voltage, Input voltage380/480V
Weight2.9
WeightUnitlbs
Weight_AttribPackaged dimensions weight
depth, length7.0
height9.1
height_AttribHeight
length_AttribDepth
moq, multiple, tierMinQty1, Frame, Drive dimensions size1
MPNODE-3-140022-3F1A
qtyInStock0
SKU6092713
snippetShop Invertek ODE-3-140022-3F1A and trust MRO to be your reliable Invertek supplier to experience the difference that quality and expertise can make. Trusted since 1898. Fast, Free Shipping.
tierPrice1446.40
width8.26771653543307
width_AttribPackaged dimensions width
Height9.1 in
Depth7 in
Rated power0.75 kW/1 HP
Phase, Input phases3
Width (in)6.3
Supply fuse or MCB (type B)6 A
Packaged dimensions depth345 mm (13.58 in)
Supply current continuous3.5 A
Supply voltage380-480 V
Max motor cable size, Max supply cable size8 mm? (0.01 in?)
Brake transistorNo internal brake transistor
Packaged dimensions height205 mm (8.07 in)
Output current2.2 A
Drive dimensions fixings4 x M4
Drive dimensions depth152 mm (5.98 in)
EMC filterInternal EMC filter
Max motor cable length100 m (328 ft)
Output voltage0 - supply voltage
Drive dimensions height232 mm (9.13 in)
Packaged dimensions weight2.9 kg (6.39 lbs)
DisplayLED
Drive dimensions weight2.3 kg (5.07 lbs)
Motor output rating0.75 kW (1 HP)
Drive dimensions width161 mm (6.34 in)
EnclosureIP66 outdoor non-switched
Packaged dimensions width210 mm (8.27 in)

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply6092713111 @ $446.40
driveswarehouse.comODE-3-140022-3F1A1-211 @ $446.40
vfds.comODE-3-140022-3F1A111 @ $498.21
