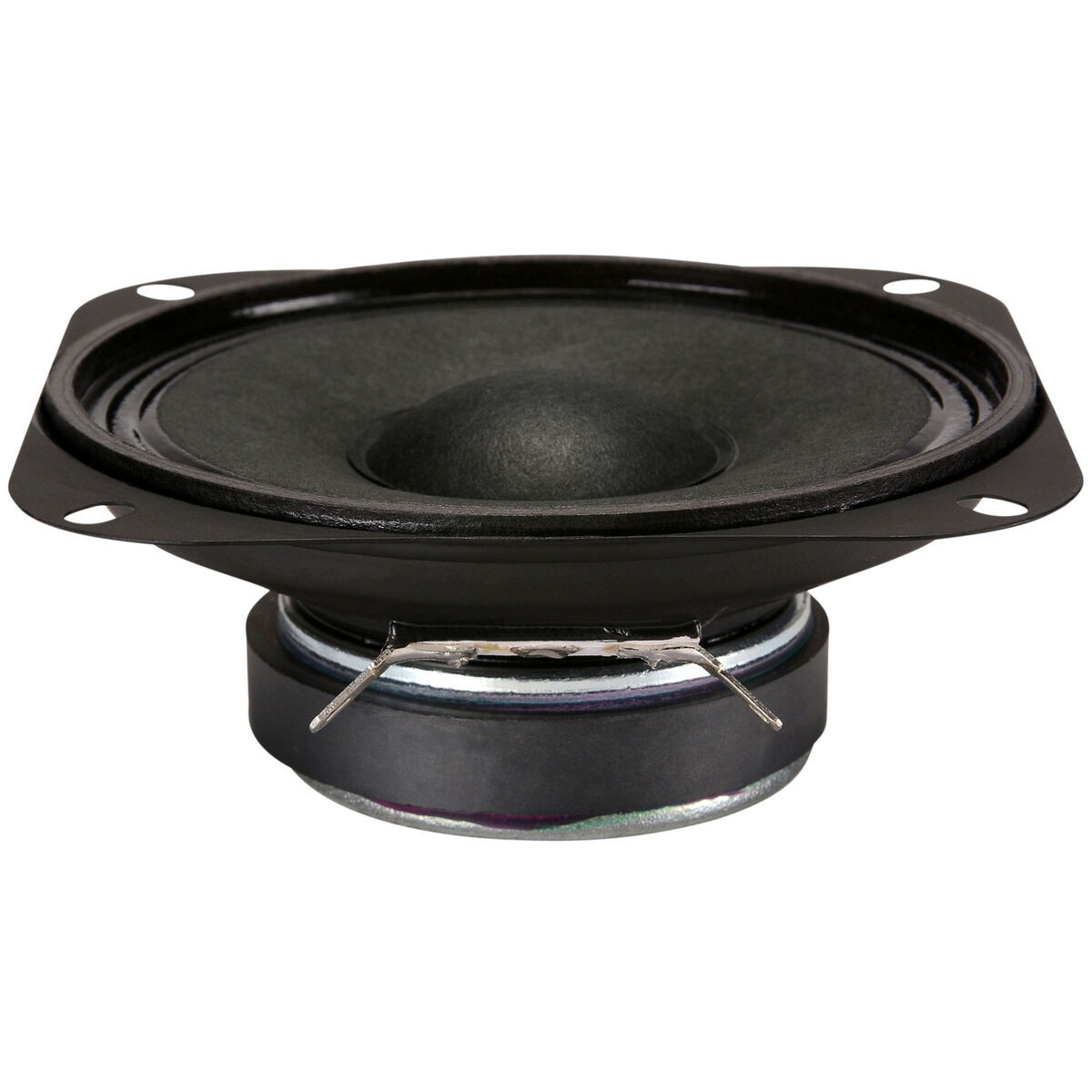

Visaton M 10 4" Sealed Back Cone Midrange Driver 8 Ohm

Visaton M 10 4" Sealed Back Cone Midrange Driver 8 Ohm. Part Number: 292-594 by Visaton.

Visaton . M 10

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandVisaton
DimensionUnitinch
Extra Product NameVisaton M 10 4" Sealed Back Cone Midrange Driver 8 Ohm
Weight0.73
WeightUnitlbs
depth, length1.53
diameter, height, width4.01
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple, tierMinQty11
MPN, ModelM 10
qtyInStock-2
qtySourceFieldMap
SKU, Part Number292-594
snippetVisaton M 10 4" Sealed Back Cone Midrange Driver 8 Ohm. Part Number: 292-594 by Visaton.
tierMinQty210
tierMinQty325
tierPrice116.26
tierPrice215.78
tierPrice315.10
Unit of MeasureEach
Nominal Diameter4"
Bolt Circle Diameter4.6
Power Handling (RMS)80 Watts
Power Handling (MAX)100 Watts
Impedance8?
Frequency Response450 to 13,000Hz
Sensitivity90dB 2.83V/1m
Voice Coil Diameter0.79"
Resonant Frequency (Fs)700Hz
Maximum Linear Excursion (Xmax)1.5mm
Cone MaterialPaper
Surround MaterialCloth
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter4.01" x 4.01"
Baffle Cutout Diameter3.7"
Depth1.53"
# Mounting Holes4

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com292-5941-211 @ $16.26, 10 @ $15.78, 25 @ $15.10
