EE80252B1-000U-G99 Sunon Fans | Fans, Thermal Management | DigiKey

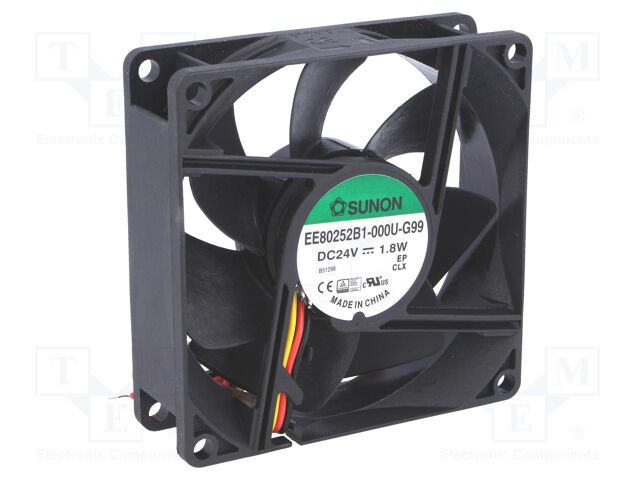

SUNON EE80252B1-000U-G99 | Fan: DC; axial; 24VDC; 80x80x25mm; 69.7m3/h; 33dBA; ball bearin
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Sunon Fans |
|---|---|
| Extra Product Name | EE80252B1-000U-G99 Sunon Fans | Fans, Thermal Management | DigiKey |
| atoms | 1 |
| minimum, moq, multiple, tierMinQty1 | 30 |
| MPN | EE80252B1-000U-G99 |
| qtyInStock | 0 |
| SKU | EE80252B1-000U-G99-ND |
| tierPrice1 | 8.19067 |
| Part Status | Active |
| Voltage - Rated | 24VDC |
| Size / Dimension | Square - 80mm L x 80mm H |
| Width | 25.00mm |
| Air Flow | 41.0 CFM (1.15m?/min) |
| Static Pressure | 0.180 in H2O (44.8 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Auto Restart, Speed Sensor (Tach) |
| Noise | 33.0dB(A) |
| RPM | 3200 RPM |
| Termination | 3 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | 14 ~ 158?F (-10 ~ 70?C) |
| Approval Agency | CE, CUR, TUV, UL |
| Weight | 0.165 lb (74.84 g) |
| Current Rating (Amps) | 0.073A |
| Voltage Range | 10 ~ 27.6VDC |
| Material - Frame, Material - Blade | Polybutylene Terephthalate (PBT) |
| Lifetime @ Temp | 50000 Hrs @ 40?C |
| Power (Watts) | 1.8 W |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | EE80252B1-000U-G99-ND | 30 | 30 | 30 @ $8.19 | |
| EE80252B1-G99 | 1 | 1 | |||
| Hotenda | H1902664 | 1 | 1 | ||
| Digi-Key | 5249725 | 1 | 1 |
