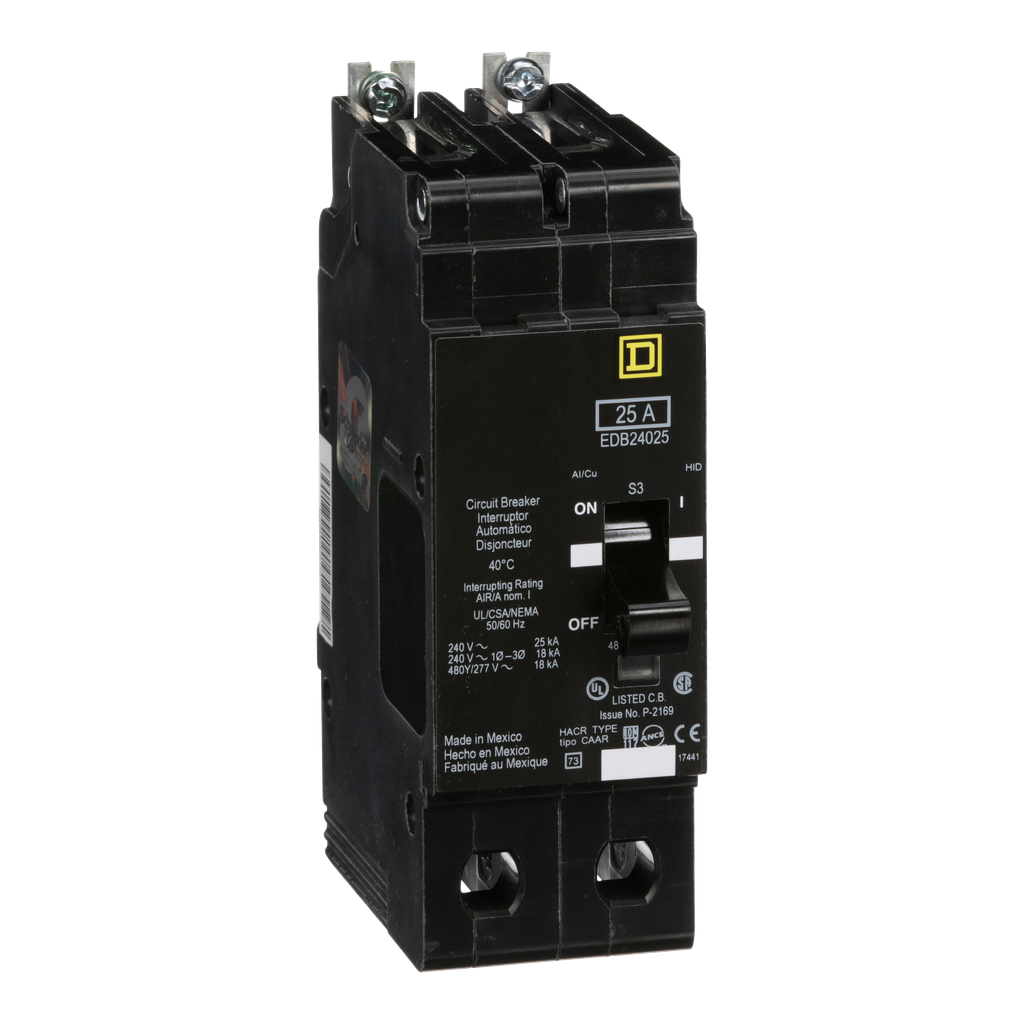

Mini circuit breaker, E-Frame, 25A, 2 pole, 480Y/277VAC, 25kA max, bolt on | Mayer Electric

Mayer Electric Supply . EDB24025

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitinch
Extra Product NameMini circuit breaker, E-Frame, 25A, 2 pole, 480Y/277VAC, 25kA max, bolt on | Mayer Electric
UPC785901311010
Weight3
WeightUnitlbs
Weight_AttribNet Weight
depth, length4.05
height5.66
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Mini-circuit-breaker-E-Frame-25A-2-pole-480Y-277-VAC-25-kA-max-bolt-on-785901311010
jsonUrlData2b3402c3b-d9fa-4b11-b200-abb200c9cfae
length_AttribDepth
moq, multiple, tierMinQty11
MPNEDB24025
qtyInStock0
SKUSQDEDB24025
tierPrice1518.64
width1.96
width_AttribWidth
Module TypeE-Frame
Range Of Product125 A Frame EDB-EGB-EJB
Trip Unit Rating875-875 A
Product Or Component Typeminiature circuit-breaker
Device Short NameEDB
Warranty18 months
Height5.66 in
Holding Current270 A
Tightening Torque3.4-3.4 N.m 2.5-16 mm? (AWG 14...AWG 6)
Breaking Capacity CodeD
Product DestinationNF panelboard
Electrical Connectionlugs aluminium
Number Of Spaces Required, Number Of Spaces, Number Of Poles2
Net Weight3 lb(US)
Circuit Breaker ApplicationHACR rated || HID rated
Mounting Modebolt-on
Line Rated Current25 A
Protection Typeshort-circuit || overload
Local Signallingtrip indicator
Awg GaugeAWG 12...AWG 6 aluminium || AWG 14...AWG 6 copper
Width1.96 in
Depth4.05 in
Breaking Capacity18 kA 277 V AC || 25 kA 240 V AC || 18 kA 480Y/277 V AC || 25 kA 120 V AC || 25 kA 120/240 V AC
Trip Unit Technologythermal-magnetic
[Ue] Rated Operational Voltage480Y/277 V AC
Rohs Exemption Information, Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Eu Rohs DirectiveCompliant
Product CertificationscULus
Ambient Air Temperature For Operation40 ?C

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDEDB24025111 @ $518.64
