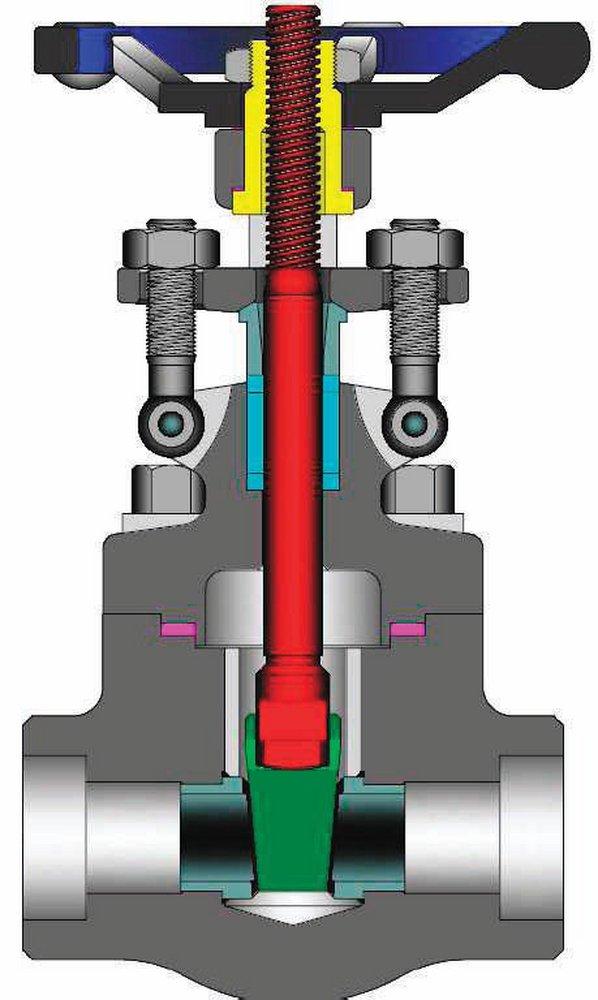

3/4 in. Forged Steel Standard Port Socket Weld Gate Valve
Shop for 3/4 in. Forged Steel Standard Port Socket Weld Gate Valve from William Powell Co At Ferguson. Ferguson is the #1 US plumbing supply company and a top distributor of HVAC parts, waterworks supplies, and MRO products.
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | William Powell Co |
|---|---|
| CategoryL1 | Valves |
| CategoryL2 | Gate Valves |
| DimensionUnit | inch |
| Extra Product Name | 3/4 in. Forged Steel Standard Port Socket Weld Gate Valve |
| Weight | 4.4 |
| WeightUnit | lbs |
| Weight_Attrib | Weight |
| length | 3.62 |
| length_Attrib | Length |
| moq, multiple, tierMinQty1 | 1 |
| MPN | 0.75 GA08SA58GW |
| qtyInStock | Not available |
| SKU | 3947398 |
| tierPrice1 | 67.20 |
| API | API 598, API 602, API B16.34 |
| ASME | ASME B16.10, ASME B16.11, ASME B16.34, ASME Class 800 |
| ASTM | ASTM A-105, ASTM A-182 F6a, ASTM A-193 Grade B7, ASTM A-194 Grade 2H, ASTM A-439 D2 |
| Collection | Figure GA08 |
| End Connection 1, End Connection 2, End Connections, Valve Body Style | Socket Weld |
| FM Approved, NSF Certified, UL Listed | No |
| Handle Length (in) | 3-9/10 in |
| Handle Material | Malleable Iron |
| Length | 3-31/50 in |
| Material | Forged Steel, Cobalt-Chromium Alloy, Malleable Iron, Stainless Steel |
| Material Type | 316, 410, Stellite 6 |
| Pressure Class | 800# |
| Valve Body Material | Forged Steel |
| Valve Bonnet Type | Welded |
| Valve Operator | Hand Wheel |
| Valve Port Opening | Standard Port |
| Valve Seat Material | 410 Stainless Steel, Stellite 6 |
| Valve Size | 3/4 in |
| Valve Stem | Non-Rotating |
| Valve Type | Gate Valve |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| 3947398 | 1 | Not available | 1 | 1 @ $67.20 |
