CXT2222A TR PBFREE Central Semiconductor Corp | Discrete Semiconductor Products | DigiKey

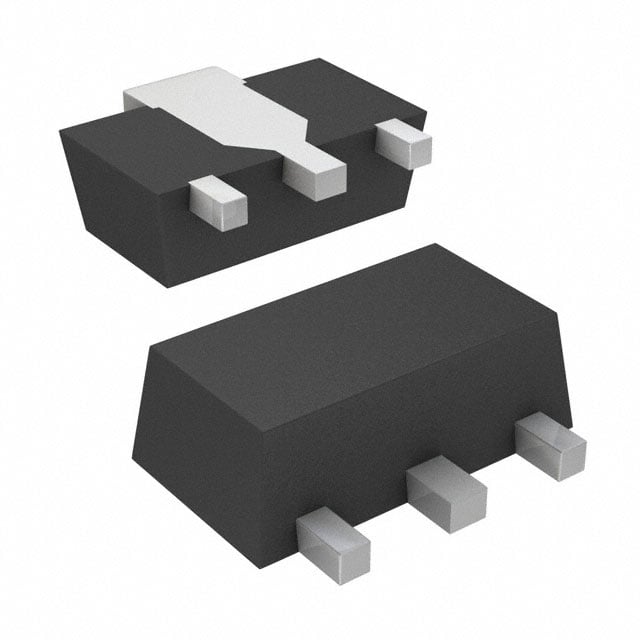

Bipolar (BJT) Transistor NPN 40 V 600 mA 300MHz 1.2 W Surface Mount SOT-89
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Central Semiconductor Corp |
|---|---|
| Extra Product Name | CXT2222A TR PBFREE Central Semiconductor Corp | Discrete Semiconductor Products | DigiKey |
| atoms, tierMinQty1 | 1 |
| moq, multiple | 1,000 |
| MPN | CXT2222A TR PBFREE |
| qtyInStock | 2260 |
| SKU | 1514-CXT2222ATRPBFREETR-ND |
| tierMinQty2 | 10 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierMinQty5 | 500 |
| tierPrice1 | 0.59000 |
| tierPrice2 | 0.51500 |
| tierPrice3 | 0.48360 |
| tierPrice4 | 0.35100 |
| tierPrice5 | 0.29328 |
| Category | Discrete Semiconductor Products |
| Series | - |
| Package | Tape & Reel (TR) |
| Part Status | Active |
| Transistor Type | NPN |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 10nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA, 10V |
| Frequency - Transition | 300MHz |
| Operating Temperature | -65?C ~ 150?C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-243AA |
| Supplier Device Package | SOT-89 |
| Current - Collector (Ic) (Max) | 600 mA |
| Voltage - Collector Emitter Breakdown (Max) | 40 V |
| Power - Max | 1.2 W |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| 1514-CXT2222ATRPBFREETR-ND | 1000 | 2260 | 1000 | 1 @ $0.59, 10 @ $0.52, 25 @ $0.48, 100 @ $0.35, 500 @ $0.29 | |
| Digi-Key | 5324300 | 500 | 135 | 500 | 1 @ $0.62, 10 @ $0.55, 100 @ $0.42, 500 @ $0.33 |
| Digi-Key | 5324969 | 1 | 2590 | 1 | 1 @ $0.62, 10 @ $0.55, 100 @ $0.42, 500 @ $0.33 |
| Digi-Key | 5325350 | 500 | 135 | 500 | 1 @ $0.62, 10 @ $0.55, 100 @ $0.42, 500 @ $0.33 |
