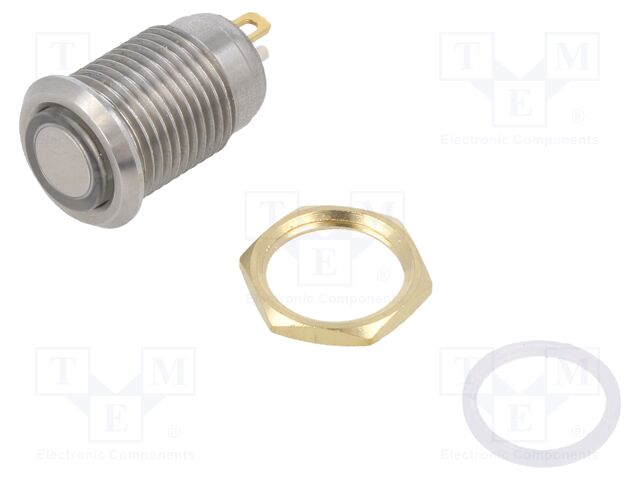

ITW LUMEX SWITCH W12M-E11HN | Switch: vandal resistant; Pos: 2; SPST-NO; 0.25A/12VDC; OFF-(ON)
ITW LUMEX SWITCH W12M-E11HN | Switch: vandal resistant; Pos: 2; SPST-NO; 0.25A/12VDC; OFF-(ON
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | ITW LUMEX SWITCH |
|---|---|
| CategoryL1 | Switches and Indicators |
| CategoryL2 | Vandal Resistant Switches |
| CategoryL3 | Push Button Switches |
| DimensionUnit | mm |
| Extra Product Name | ITW LUMEX SWITCH W12M-E11HN | Switch: vandal resistant; Pos: 2; SPST-NO; 0.25A/12VDC; OFF-(ON) |
| atoms, moq, multiple, Stable positions number | 1 |
| diameter, length, width | 12.25 |
| jsonUrlData | f261032f1ef15a3684ffb4571b3552e1. |
| jsonUrlData2 | 79576302d516fdf20a93 |
| keywords | ITW LUMEX SWITCH, W12M-E11HN |
| length_Attrib, width_Attrib | Mounting hole diameter |
| MPN, SKU | W12M-E11HN |
| qtyInStock | 20 |
| snippet | ITW LUMEX SWITCH W12M-E11HN | Switch: vandal resistant; Pos: 2; SPST-NO; 0.25A/12VDC; OFF-(ON |
| Type of switch | vandal resistant |
| Number of positions | 2 |
| Contacts configuration | SPST-NO |
| DC contacts rating @R | 0.25A / 12V DC |
| IP rating | IP67 (from the front) |
| Switching method | OFF-(ON) |
| Leads | for soldering |
| Operating temperature | -25...85?C |
| Electrical life | 100000 cycles |
| Max contact resistance: | 50m? |
| Operating Force | 3N |
| Button shape | round |
| Mounting hole diameter | ?12.25mm |
| Body material, Button material | stainless steel |
| Contact plating | gold-plated |
| Mounting | panel |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| W12M-E11HN | 1 | 20 | 1 |
