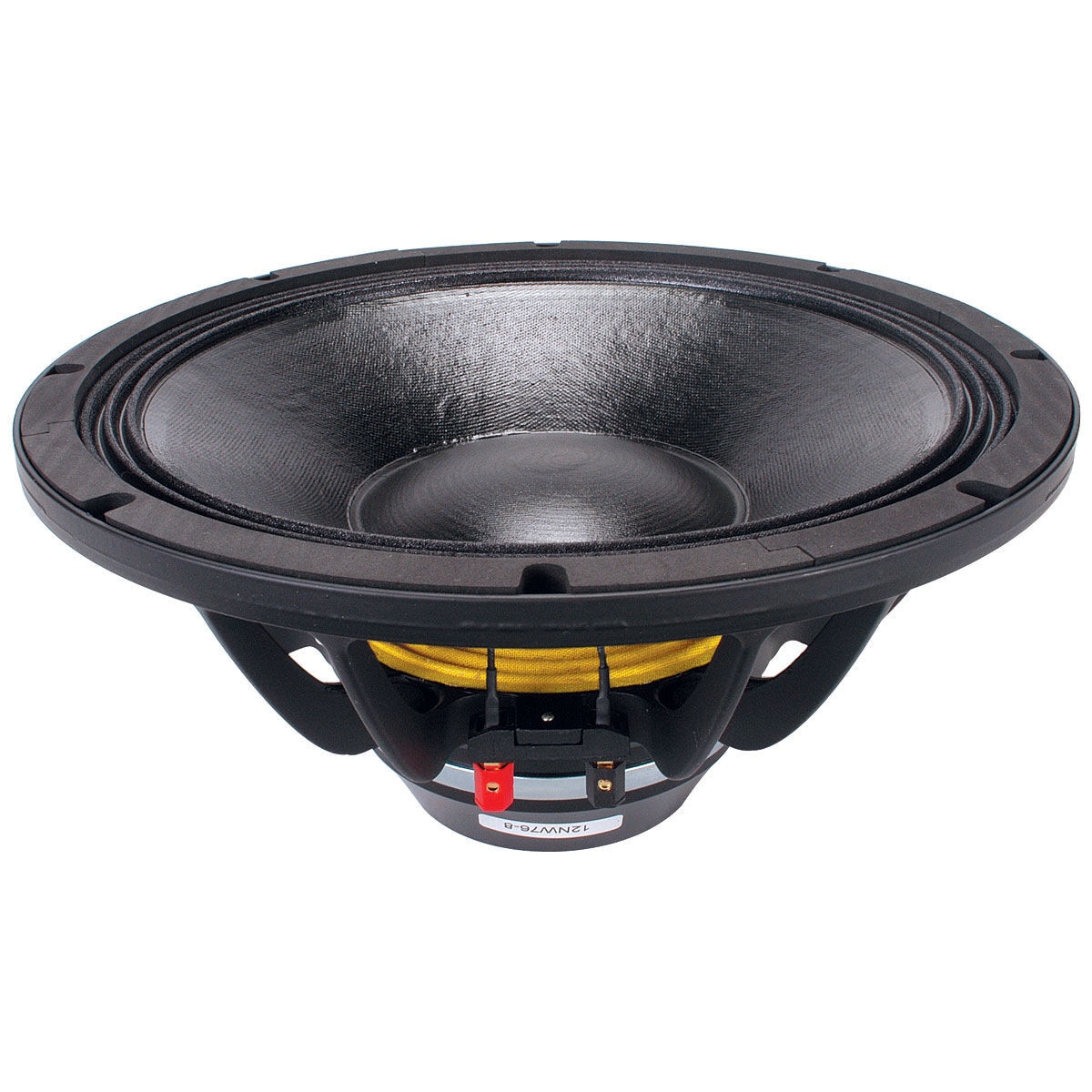

B&C 12NW76 12" Neodymium Woofer

B&C 12NW76 12" Neodymium Woofer. Part Number: 294-681 by B&C Speakers.

B&C Speakers . 12NW76

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandB&C Speakers
DimensionUnitinch
Extra Product NameB&C 12NW76 12" Neodymium Woofer
UPC844632002274
Weight12.3
WeightUnitlbs
depth, length5.8
diameter, height, width12.4
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, Model12NW76
qtyInStockBack-Ordered
SKU, Part Number294-681
snippetB&C 12NW76 12" Neodymium Woofer. Part Number: 294-681 by B&C Speakers.
Unit of MeasureEach
Nominal Diameter12"
Bolt Circle Diameter11.7
Power Handling (RMS)500 Watts
Power Handling (MAX)1000 Watts
Impedance8?
Frequency Response40 to 2,000Hz
Sensitivity99dB 2.83V/1m
Voice Coil Diameter3"
Resonant Frequency (Fs)40Hz
DC Resistance (Re)5.3?
Voice Coil Inductance (Le)1.25mH
Mechanical Q (Qms)3.7
Electromagnetic Q (Qes)0.17
Total Q (Qts)0.16
Compliance Equivalent Volume (Vas)2.7ft?
BL Product (BL)25.5T?m
Diaphragm Mass Inc Airload (Mms)77g
Maximum Linear Excursion (Xmax)8mm
Surface Area of Cone (Sd)522cm?
Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Magnet MaterialNeodymium
Overall Outside Diameter12.4"
Baffle Cutout Diameter11.1"
Depth5.8"
# Mounting Holes8
Vented Volume1.5ft?
Vented F350Hz
