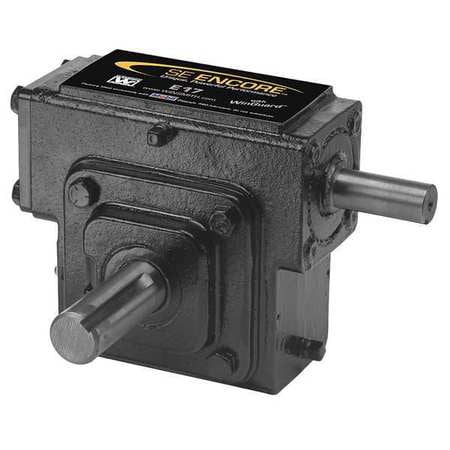

Speed Reducer, Indirect Drive, Right Angle Shaft Orientation, Washdown Duty, 1725 Input RPM, 58 Nominal Output RPM, Worm Center Distance 2.00 In., Overhung Load 650 lb., 30:1 Nominal Ratio, Max. Input HP 0.75, Max. Output Torque 687 in.-lb., Number of Stages 1, Reversible Rotation, Universal Mounting, Worm Gear Type, Cast Iron Housing Material, Double Output, Output Shaft Dia. 1 In., Output Shaft Height 2-1/8 In. Features Finish: Epoxy Coating System Item: Speed Reducer Nominal Output RPM: 58 Number of Stages: 1 Dimension U: 0.750" Dimension V: 1.75" Dimension W: 1.000" Dimension B: 5.250" Duty: Washdown Housing Material: Cast iron Input RPM: 1725 Mounting: Universal Nominal Ratio: 30:1 Rotation: Reversible Shaft Orientation: Right Angle Standards: NSF/ASTM B-117 Lubrication: Mobil Glygoyle(R) 460 Dimension A: 2.380" Dimension C: 2.000" Dimension D: 4.130" Dimension F: 2.19" Dimension G: 0.56" Dimension H: 3/8-16 Dimension L: 3.44" Dimension M: 5.000" Reducer Model No.: E20XWNS Max. Input HP: 0.75 Worm Center Distance: 2.00" Overhung Load: 650 lb. Gear Type: Worm Speed Reducer Type: Indirect Drive Output Shaft Dia.: 1" Output Shaft Height: 2-1/8" Output Torque @ 1/2 HP: 458 in.-lb. Output Torque @ 1/3 HP: 302 in.-lb. Output Torque @ 3/4 HP: 687 in.-lb. Single/Double Output/Universal: Double Output Solid/Hollow Output Shaft: Solid Max. Output Torque: 687 in.-lb.
