Blickle

Blickle . LEX-PATH 100KFD-FI

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameBlickle
DimensionUnitinch
GraingerSku65MM74
UPCNone
UnitOfMeasureEA
Weight2.7
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginDE
extendedLead10
extendedQty-2
height4.72
jsonUrlData924526ffbdad25e5923b
length7.68
moq, multiple, tierMinQty1, Number of Wheels1
MPNLEX-PATH 100KFD-FI
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG9660738
tierPrice160.50
urlhttps://www.zoro.com/blickle-swivl-plate-cstr-polyurthane-4-brake-lex-path-100kfd-fi/i/G9660738/
width5.71
Caster Brake Included, Non-Marking, Includes Thread GuardsYes
Caster Load Rating RangeMedium Duty
Caster Sub-TypeSwivel
Caster Wheel/Tread MaterialThermoplastic Polyurethane
Overall Height125 mm
Wheel Dia100 mm
Wheel Width32 mm

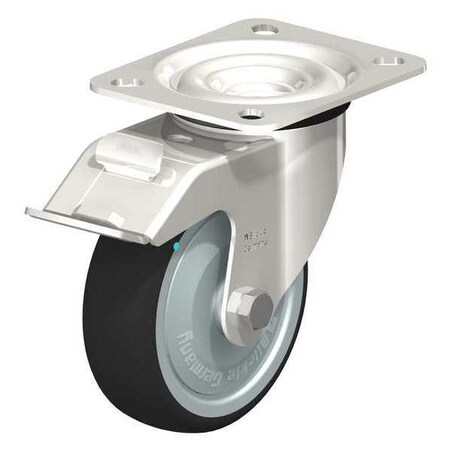

ItemSwivel Plate Caster With Brake
Extended Lead, ESD ConductiveNo
Core ColorGray
Caster Temp Range-25 Degrees To 70 Degrees C
Caster Plate Size85 mm x 100 mm
Swivel Radius86 mm
ApplicationFood Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Product GroupSwivel Caster With Brake
Inside Bolt Hole Spacing, Outside Bolt Hole Spacing60 mm x 80 mm
StandardsRoHS, ICWM
Frame Finish, Caster Frame MaterialStainless Steel
Caster Swivel Lock TypeTotal-Lock
Replacement WheelMfr. No. PATH 100/8KD-FK
Mounting Bolt DiaM8
Caster Wheel BearingsPrecision Ball
IncludesStop-Fix Total-Lock Brake
Caster Raceway, Swivel Raceway TypeDouble Ball
Caster Plate Thickness2.5 mm
System of MeasurementMetric
Resistant ToVery High Chemical Resistance To Many Aggressive Substances
Tread ColorDark Gray
Caster Break TypeStop Fix Brake (Total Lock)
SeriesLEX Series
Caster Mounting TypePlate
Wheel/Tread Hardness94 Shore A
Tread Shape, TreadStandard
Load Capacity150 kg
Wheel Core MaterialNylon
Load Rating Range-
Number of Mounting Holes4
Country of Origin (subject to change)Germany

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG9660738111 @ $60.50
