Order YA28L1790 by Burndy 50237W Compression Connector, 5/8" Stud, 90deg, (Pack of 10 pcs) - US Mega Store

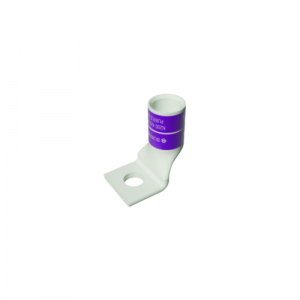

Burndy, YA28L1790, 50237W Compression Connector, 4/0 AWG, 5/8" Stud, 90deg Copper Tubing,Single Hole /with insp window,4/0 AWG,5/8"stud,Tin plated,200 Navy,15 index,Purple.

Burndy . YA28L1790

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy YA28L1790
ConditionNEW
DimensionUnitinch
Extra Product NameOrder YA28L1790 by Burndy 50237W Compression Connector, 5/8" Stud, 90deg, (Pack of 10 pcs) - US Mega Store
diameter, height, length0.69
height_Attrib, length_AttribDimension - Outside Diameter inch
moq, multiple, tierMinQty1, Physical Attribute - Number of Holes1
MPN, SKUYA28L1790
qtyInStockContact Us
tierPrice136.63
width1.02
width_AttribDimension - Pad Width inch
Connector TypeTerminal
Die Index15
Feature - Barrel StyleChamfered
Feature - Barrel Type, Physical Attribute - Tongue TypeStandard
Material, Conductor - MaterialCopper
PlatedY
Plating TypeTin - Electro Plated
TypeStandard Barrel, Tin Plated
Dimension - B Length fraction7/8 in
Dimension - B Length inch0.88 in
Dimension - Bolt Hole Size inch, Dimension - N inch0.66 in
Dimension - Bolt Size fraction (Inch), Dimension - Stud Size inch5/8
Dimension - D inch1.33 in
Dimension - Hole Size mm18 mm
Dimension - L Length Overall mm45 mm
Dimension - Length Overall inch1.79 in
Dimension - Outside Diameter inch0.69 in
Dimension - Pad Width inch1.02 in
Dimension - Strip Length inch1-1/8
Dimension - Z inch0.67 in
Physical Attribute - Tongue Angle90 Degree
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size RangeN/A
Conductor - Copper Str Navy Size, Conductor - Copper Str Navy Size Range200 (61) Navy
Conductor - Copper Str Size, Conductor - Copper Str Size Range4/0 AWG
Certification - CSA Approved, UL ListedYes
Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Industry Standard(s)UL 486A-486B
Standards - Industry Standards MetUL467
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYA28L17901Contact Us11 @ $36.63
