STB18NF30 STMicroelectronics | Discrete Semiconductor Products | DigiKey

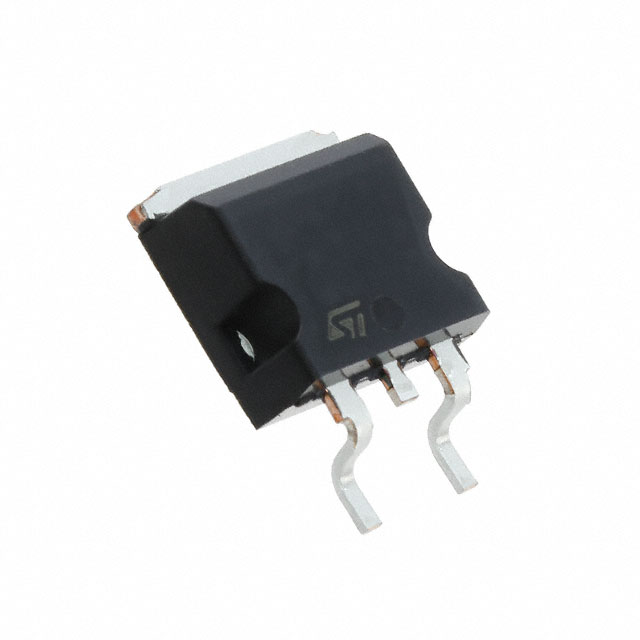

N-Channel 330 V 18A (Tc) 150W (Tc) Surface Mount D?PAK (TO-263)

STMicroelectronics . STB18NF30

Attributes

Brand name, Manufacturer name, Manufacturer, MfrSTMicroelectronics
Extra Product NameSTB18NF30 STMicroelectronics | Discrete Semiconductor Products | DigiKey
atoms, moq, multiple, tierMinQty11
extraShipping0
MPNSTB18NF30
qtyInStock1000
SKU3194645
snippetN-Channel 330 V 18A (Tc) 150W (Tc) Surface Mount D?PAK (TO-263)
tierMinQty210
tierMinQty3100
tierMinQty4500
tierPrice13.2199999999999998
tierPrice22.8888
tierPrice32.3215049999999997
tierPrice41.9073669999999998
CategoryDiscrete Semiconductor Products
SeriesAutomotive, AEC-Q101, STripFET? II
PackageTape & Reel (TR)
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)330 V
Current - Continuous Drain (Id) @ 25?C18A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs180mOhm @ 9A, 10V
Vgs(th) (Max) @ Id4V @ 250?A
Gate Charge (Qg) (Max) @ Vgs44 nC @ 10 V
Vgs (Max)?20V
Input Capacitance (Ciss) (Max) @ Vds1650 pF @ 25 V
FET Feature-
Power Dissipation (Max)150W (Tc)
Operating Temperature-55?C ~ 175?C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageD?PAK (TO-263)
Package / CaseTO-263-3, D?Pak (2 Leads + Tab), TO-263AB
Base Product NumberSTB18

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Digi-Key31946451100011 @ $3.22, 10 @ $2.89, 100 @ $2.32, 500 @ $1.91
Newark94T6463100010001 @ $0.00
Future Electronics1021582100010001000 @ $1.23
HotendaH1825381111 @ $1.35
swatee.comSTB18NF30166611 @ $5.53
iodPartsSTB18NF3011
Digi-Key3194685198611 @ $3.22, 10 @ $2.89, 100 @ $2.32, 500 @ $1.91, 1000 @ $1.73
Digi-Key31947095005001 @ $2.92, 10 @ $2.63, 100 @ $2.11, 500 @ $1.73
st.comSTB18NF301-211 @ $2.52, 10 @ $2.10, 100 @ $1.67, 250 @ $1.60, 500 @ $1.44
