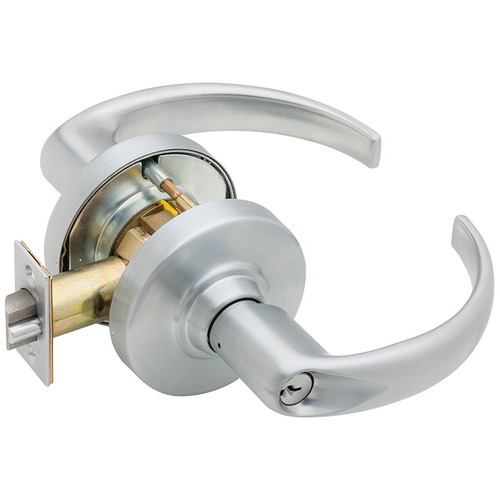

Schlage Commercial ND80PDEL SPA 626 ND80PDEL Sparta Electrified Storeroom Lock - Fail Safe, Satin Chrome

ND SeriesCylindrical Locks ND Series locks have been the most popular Schlage product ever since Walter Schlage invented the cylindrical lock in 1920. The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The lock withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks. The lock is not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles. All ND Series locks come in 10 finishes, nine lever designs and use an ANSI 161 door preparation, c

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Manufacturer ParentAllegion
CategoryIdL3Electric Locks
CategoryL1Windows and Door Hardware
CategoryL2Door and Window Security Hardware
DimensionUnitinch
Extra Product NameSchlage Commercial ND80PDEL SPA 626 ND80PDEL Sparta Electrified Storeroom Lock - Fail Safe, Satin Chrome
Voltage24 VDC
atoms, moq, multiple, tierMinQty11
length, Lever Length4.9375
length_AttribLever Length-Inches
MPNND80PDEL SPA 626
qtyInStock-2
qtySourceFieldMap
tierPrice1809.2
Finish, Finish Description, Finish FamilySatin Chrome
Backset2-3/4 Inch
StrikeANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
DesignSparta
Function80EL-Electrically Locked
Color Code626/US26D
OriginMexico
BAA QualifiedYes
Package Height4.75
Package Length9.5
Package Volume372.28125
Package Width8.25
GradeANSI/BHMA Grade 1
Lever StyleSPA-Sparta
Rose/Escutcheon TrimRound Rose
Product TypeElectronic Cylindrical Lock
Projection3.5000
Door Thickness1-5/8 to 2-1/8 Inch
Bore Size2.1250
Latch Number13-247
Strike Number10-025
Strike Size1-1/4" x 4-7/8" x 1-3/16"
Handing, HandNon-Handed
Lever MaterialPressure Cast Zinc
Latch Throw1/2 Inch
Function DescriptionOutside Lever is Fixed; Entrance by Key Only; Inside Lever Always Free for Immediate Egress
Sub-SeriesND80PDEL-SPA-626
Lever Style FamilyCurved Return Lever
ADA CompliantYES
Front Size, Latch Size1-1/8" x 2-1/4"
Operating Temperature32 to 120?F
Cylinder TypeConventional
Lever Length-Inches4-15/16 Inch
Door Cross Bore2.125 Inch
ApplicationHigh Traffic Areas; New Construction
Function FamilyStoreroom
StandardsANSI/BHMA A156.2 Series 4000; Complies with ICC A117.1 Accessible and Usable Buildings and Facilities; UL Listed for 3-hour Fire Door; Meets BAA (Buy American Act)
Lever Projection3-1/2 Inch
Strike TypeANSI Curved Lip
Current Draw0.23A Maximum; 0.01A Holding
Warranty10 Year Mechanical; 1 Year Wired Electrified
Included Components(2) Nickel Silver Cut Keys
Strike Lip1-3/16 Inch
