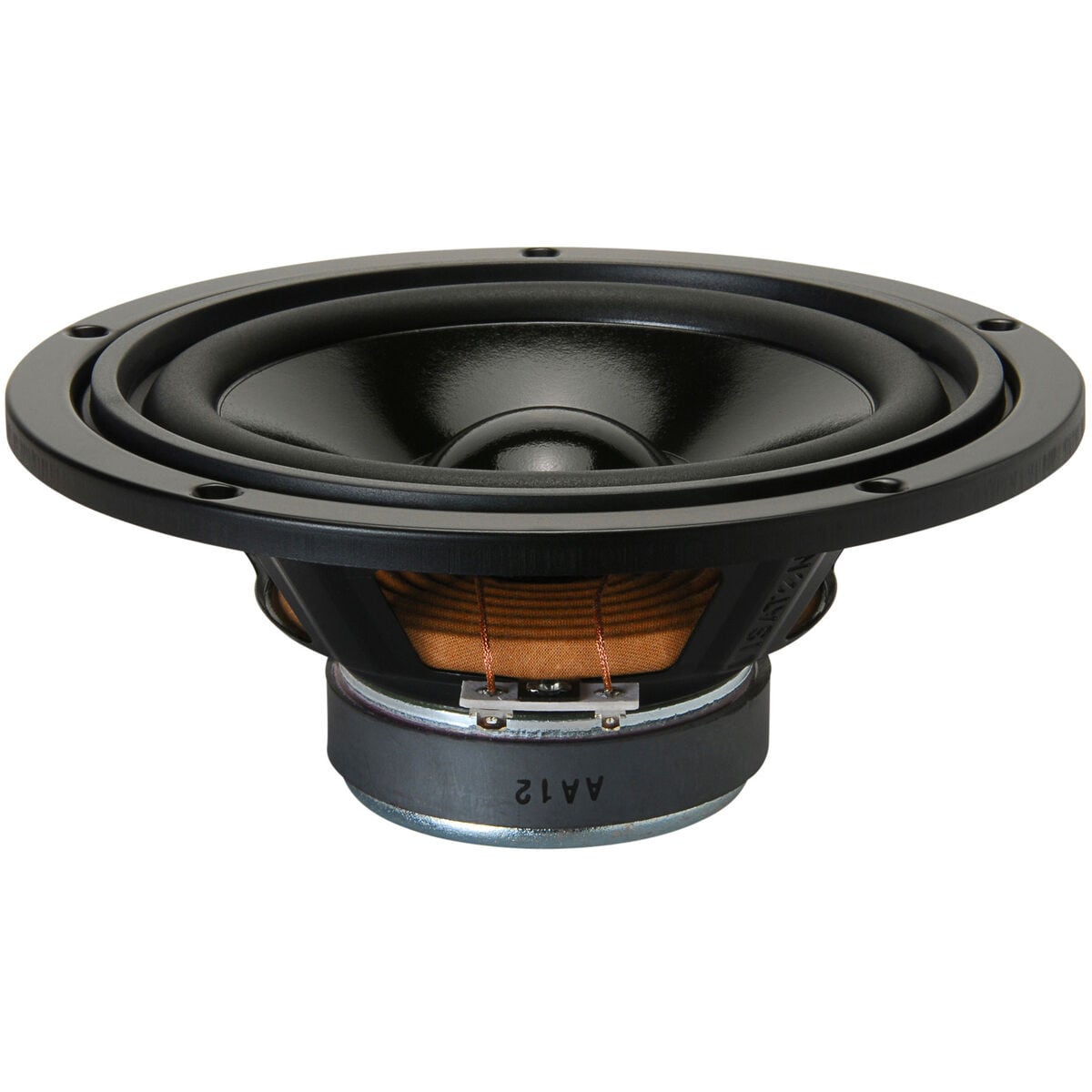

Visaton W170S-4 6.5" Woofer with Treated Paper Cone 4 Ohm

Visaton W170S-4 6.5" Woofer with Treated Paper Cone 4 Ohm. Part Number: 292-566 by Visaton.

Visaton . W170S - 4

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandVisaton
DimensionUnitinch
Extra Product NameVisaton W170S-4 6.5" Woofer with Treated Paper Cone 4 Ohm
Weight2.271
WeightUnitlbs
depth, length2.91
diameter, height, width7.36
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple, tierMinQty11
MPN, ModelW170S - 4
qtyInStockOnly 4 In Stock
SKU, Part Number292-566
snippetVisaton W170S-4 6.5" Woofer with Treated Paper Cone 4 Ohm. Part Number: 292-566 by Visaton.
tierMinQty210
tierMinQty325
tierPrice144.08
tierPrice242.76
tierPrice340.93
Unit of MeasureEach
Nominal Diameter6-1/2"
Power Handling (RMS)50 Watts
Power Handling (MAX)80 Watts
Impedance4?
Frequency Response36 to 8,000Hz
Sensitivity86dB 2.83V/1m
Voice Coil Diameter1"
Resonant Frequency (Fs)36Hz
DC Resistance (Re)3.2?
Voice Coil Inductance (Le)0.6mH
Mechanical Q (Qms)2.16
Electromagnetic Q (Qes)0.51
Total Q (Qts)0.41
Compliance Equivalent Volume (Vas)1.34ft?
Maximum Linear Excursion (Xmax)4.25mm
Cone MaterialTreated Paper
Surround MaterialRubber
Overall Outside Diameter7.36"
Baffle Cutout Diameter5.83"
Depth2.91"
Sealed Volume0.5ft?
Sealed F369.6Hz
Vented Volume0.8ft?
Vented F343.8Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com292-5661Only 4 In Stock11 @ $44.08, 10 @ $42.76, 25 @ $40.93
