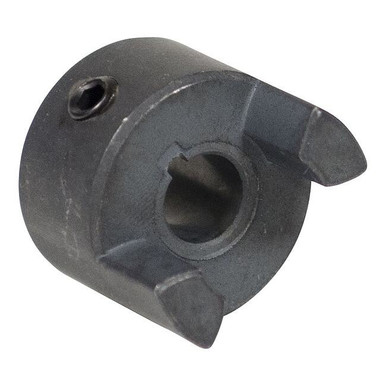

L05010MM L050X10MM L-JAW HUB
L05010MM L050X10MM L-JAW HUB
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | TB Woods |
|---|---|
| CategoryL1 | Shaft Couplings and Collars |
| CategoryL2 | Jaw Couplings |
| CategoryL3 | Components |
| CategoryL4 | Hub Halves |
| Extra Product Name, snippet | L05010MM L050X10MM L-JAW HUB |
| moq, multiple, Max compatible bore size, Length-through-bore | 16 |
| MPN | L05010MM |
| qtyInStock, Max parallel misalignment | 0 |
| SKU | 336579 |
| tierMinQty1 | 1 |
| tierPrice1 | 4.41 |
| Keyway | 3 mm x 1.4 mm |
| Bore size | 10 mm |
| Product family | L-jaw hub |
| Size code | 50 |
| Material type, Hub material | Sinter carbon steel |
| Overall length | 44 |
| Dimension (in ) (OD) | 1.080 |
| Setscrew length (in) | 1/4 |
| Max speed, Max RPM | 18000 |
| Setscrew length | 0.25 |
| Dimension (in) (LTB) | 0.63 |
| Bore shape | Finish with keyway |
| Dimension (in) (S) | 0.31 |
| Min compatible bore size | 7 |
| Setscrew size | 1/4 20 UNC |
| Jaw type | Straight |
| Dimension (in) (HD) | NA |
| Dimension (in) (L) | 1.06 |
| Center | 0.47 |
| O D | 27 |
| Bore tolerance (in) | +0.013MM/. 028MM |
| Bore tolerance | +.013/.028 |
| Coupling size | L050 |
| Keyseat | 3MM X 1.4MM |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| MRO Supply | 336579 | 16 | 16 | 1 @ $4.41 | |
| Grainger | 1CXN9 | 1 | 1 | ||
| Applied Industrial | 105294099 | 1 | 1 | ||
| sustainablesupply.com | C1659957 | 1 | -2 | 1 | 1 @ $5.00 |
 Zoro | G1785025 | 1 | 165 | 1 | 1 @ $4.29 |
 simsupply.com | ZO-G1785025 | 1 | 97 | 1 | 1 @ $11.06 |
