Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 20 A, Minimum Overload Relay Current Setting 4 A, Trip Class 10/20/30, NEMA Size Not Applicable, Number of Poles 3, Number of Required Thermals Not Applicable, Reset Type Auto, Manual, Includes Thermal Units Not Applicable, Mounting Style Separately Mounted, Compatible with Series XT Mini Contactors, Frame Size C, Relay Style IEC, Overload Protection Type Electronic, Phase Three, Standards CE, CSA, UL Listed

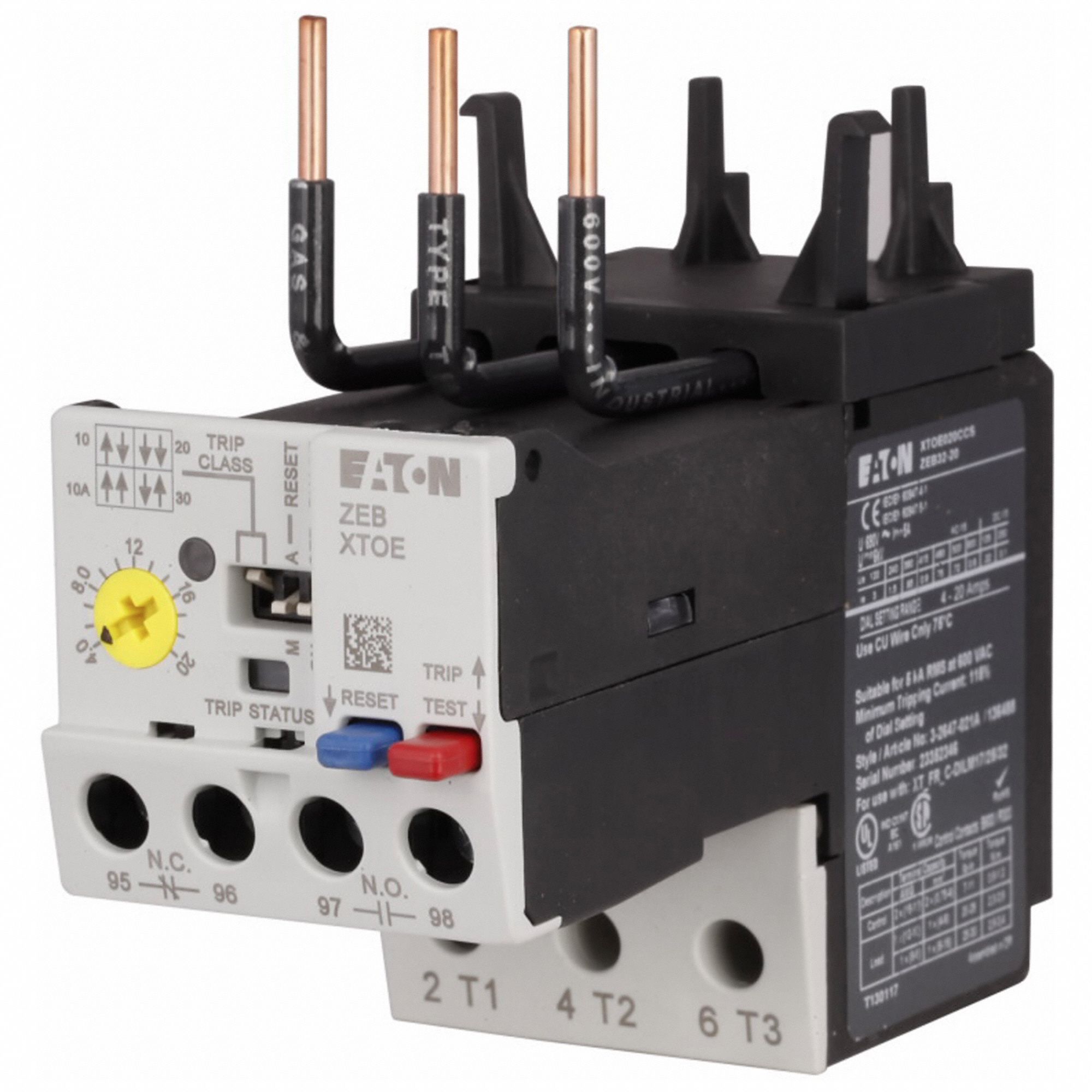

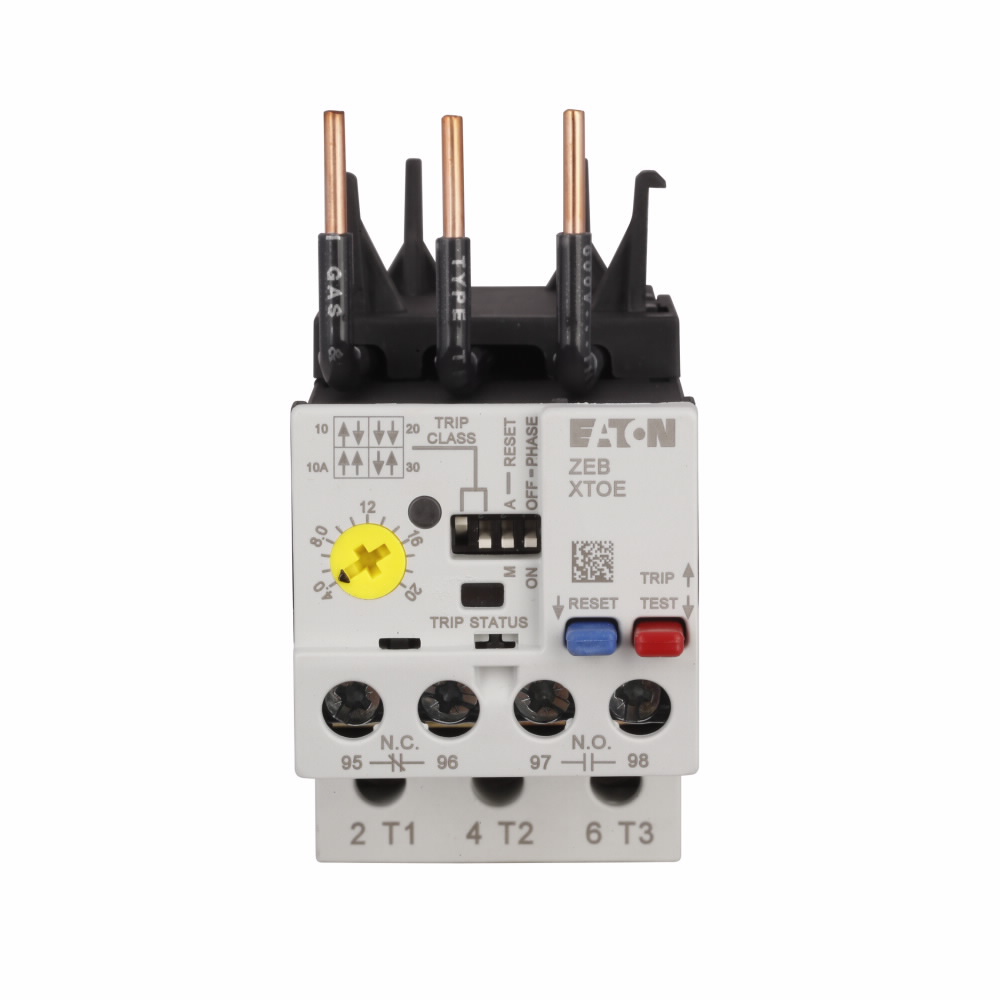

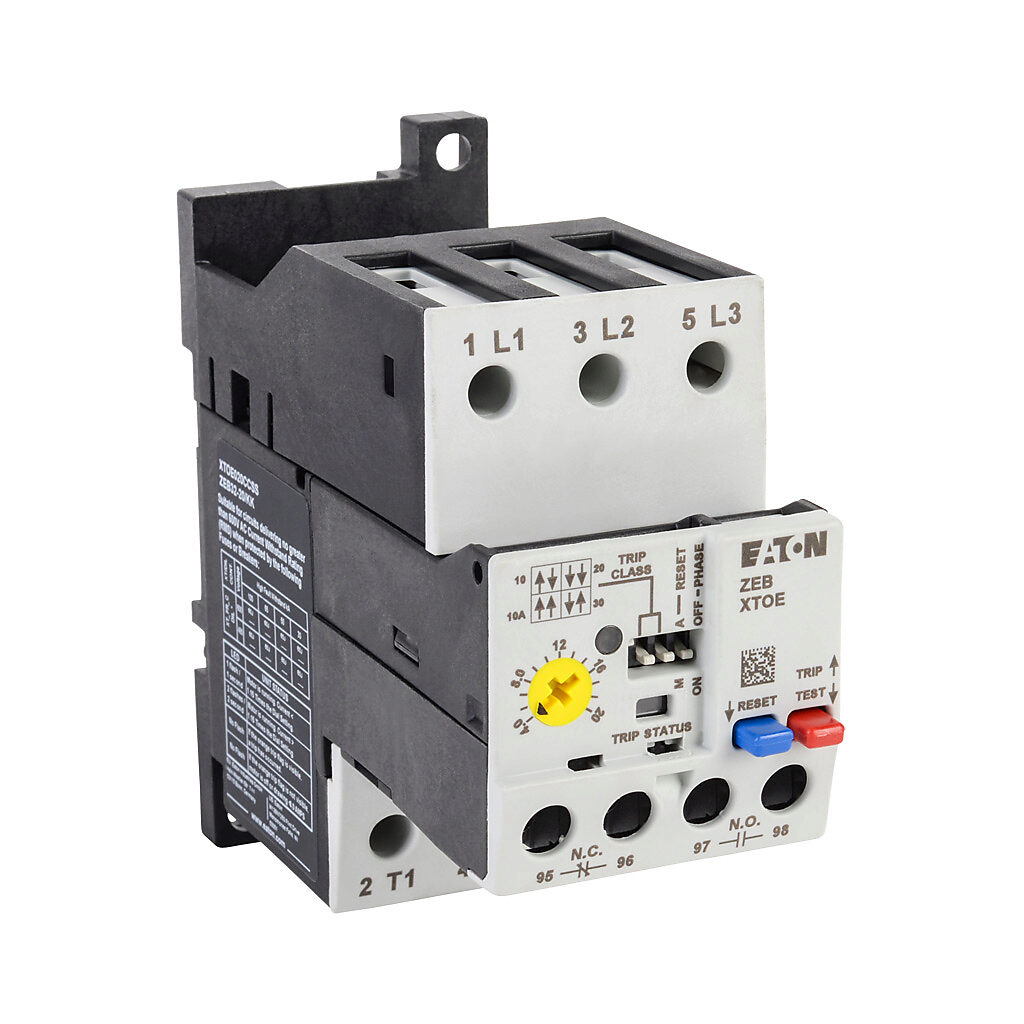

The Eaton XTOE020CCSS is a 4-20 amp electronic overload relay with a large frame design. It features a sensing method of electronic and detects ground faults. The relay has a 3-pole configuration and is suitable for use with contactors and starters from the XTCE series. It meets standards for UL, CSA, and IEC certification. The device is available in a single unit.

Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 20 A, Minimum Overload Relay Current Setting 4 A, Trip Class 10/20/30, NEMA Size Not Applicable, Number of Poles 3, Number of Required Thermals Not Applicable, Reset Type Auto, Manual, Includes Thermal Units Not Applicable, Mounting Style Separately Mounted, Compatible with Series XT Mini Contactors, Frame Size C, Relay Style IEC, Overload Protection Type Electronic, Phase Three, Standards CE, CSA, UL Listed

Eaton . XTOE020CCSS

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerEaton
CategoryId, CategoryIdL44835
CategoryIdL123
CategoryIdL217009
CategoryIdL34517
CategoryL1Electrical Supplies
CategoryL2Industrial Control & Automation
CategoryL3Motor Controls
CategoryL4Overload Relays
DimensionUnitinch
GTIN, UPC786685437545
GraingerSku5XHL0
UnitOfMeasureEA
Weight1.05
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginDO
height6.6
jsonUrlData924526ffbdad25e5923b
length7.3
moq, multiple, tierMinQty11
MPNXTOE020CCSS
qtyInStock120
qtyInStockOverride-2
SKUG0666732
tierPrice1123.99
urlhttps://www.zoro.com/eaton-overload-relay-4-to-20a-electronic-3p-xtoe020ccss/i/G0666732/
width3.2
NEMA SizeNot Applicable
Width2.25"
Height3.50"
Depth4.50"
Body Depth - Relay4.5 in
Overall Height - Relay, Product Length/Depth4.32 in
Body Height - Relay3.5 in
Body Width - Relay2.25 in
Product Height, Overall Height6.5 in
Frame size45 mm
Product Width, Body Width1.8 in
Body Depth3.8 in
Body Height3.1 in
Frame SizeC
Item - RelayIEC Style Overload Relay
ItemOverload Relay
Current Range4.00 to 20.0A
Use With - Contactors and StartersMfr. Series XTCE Contactors
Overload Relay Current Range4.0 to 20.0A
Trip Class - Overload10, 20, 30, 5
Number of Poles3

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG0666732112011 @ $123.99
Grainger5XHL011
Platt.com08492571111 @ $153.52
Butler Supply365811
Allied Electronics7005842611
AmazonTPB00JV3CIBG111 @ $114.78
Newark65T8005111 @ $201.26, 5 @ $187.74, 10 @ $175.93, 25 @ $160.24, 50 @ $147.12, 100 @ $136.35
Automation DirectXTOE020CCSS120911 @ $126.00
sustainablesupply.comC12071491-211 @ $137.10
Elliott ElectricXT0E020CCSS1Currently Out Of Stock11 @ $246.21
simsupply.comCU-3558484C30111 @ $145.84
kempstoncontrols.co.ukXTOE020CCSS111 @ $0.00
midwestapplianceparts.comXTOE020CCSS-CU-P111 @ $136.82
Crescent Electric Supply CoXTOE020CCSS11
turtle.comCUH XTOE020CCSS1-211 @ $88.59
midwestapplianceparts.comXTOE020CCSS -CU-P11
simsupply.comZO-G066673219311 @ $146.84
cappusa.com3113371111 @ $185.01
kirbyrisk.com2471406111 @ $214.13
Crescent Electric Supply Co192812911
us.rs-online.com70058426111 @ $181.44, 5 @ $169.25
Airline HydraulicsEATON XTOE020CCSS111 @ $127.00
crescentelectric.com179145111 @ $132.46
