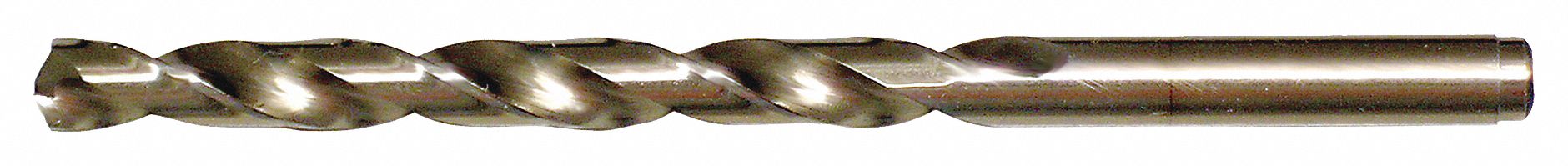

DRILL JOBBER 8.5MM 2213 COB TYPE J

CLEVELAND . 2213-70122

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerCLEVELAND
DimensionUnitmm
Extra Product NameDRILL JOBBER 8.5MM 2213 COB TYPE J
UNSPSC20111614
Weight0.08
WeightUnitlbs
diameter, height, width8.5
height_Attrib, width_AttribShank Dia.
length117.0
length_AttribOverall Length
moq, multiple, tierMinQty11
MPN2213-70122
originalCurrency{'currency': 'CAD', 'tierPrice1': '19.80'}
qtyInStock0
SKUGNF2213-70122
tierPrice114.3709588
ItemJobber Length Drill Bit
Decimal Equivalent0.3346
Material - MachiningCobalt
Drill Bit Point Angle135 Degrees
Coolant FedNon-Coolant Through
Number of Flutes2
Maximum Drilling Depth1 21/64 in
Cutting Direction, Spiral DirectionRight Hand
Shank Type - MachiningStraight
Shank Length42 mm
Depth:Dia Ratio4xD
Drill Point Length0.0693mm
Series2213
Aircraft DrillYes
Material Grade - MachiningM42
Primary Material Application ISO CodeM, N, P
Secondary Material Application ISO CodeH, K, S
Drill Bit Size8.50 mm
Measurement SystemMetric
Finish - MachiningStraw/Bronze
Drill Bit Point TypeSplit Point
Flute TypeSpiral
Flute Length75.00 mm
Helix Angle21 Degrees to 34 Degrees
Shank Dia8.5 mm
Overall Length117.00 mm
Drill Length ClassJobber Length
Drill Bit GroupingIndividual
StandardsNAS 907 Type J
Drill Diameter Tolerance+0.0000 in /-0.0010 in
Primary Material ApplicationAluminum, Brass, Bronze, Copper, Stainless Steel, Steel
Secondary Material ApplicationCast Iron, Hardened Steel, Nickel, Titanium

Distributor offers

SellerSKUMOQIn stockMultiplePrices
grainger.caGNF2213-70122111 @ $14.37
