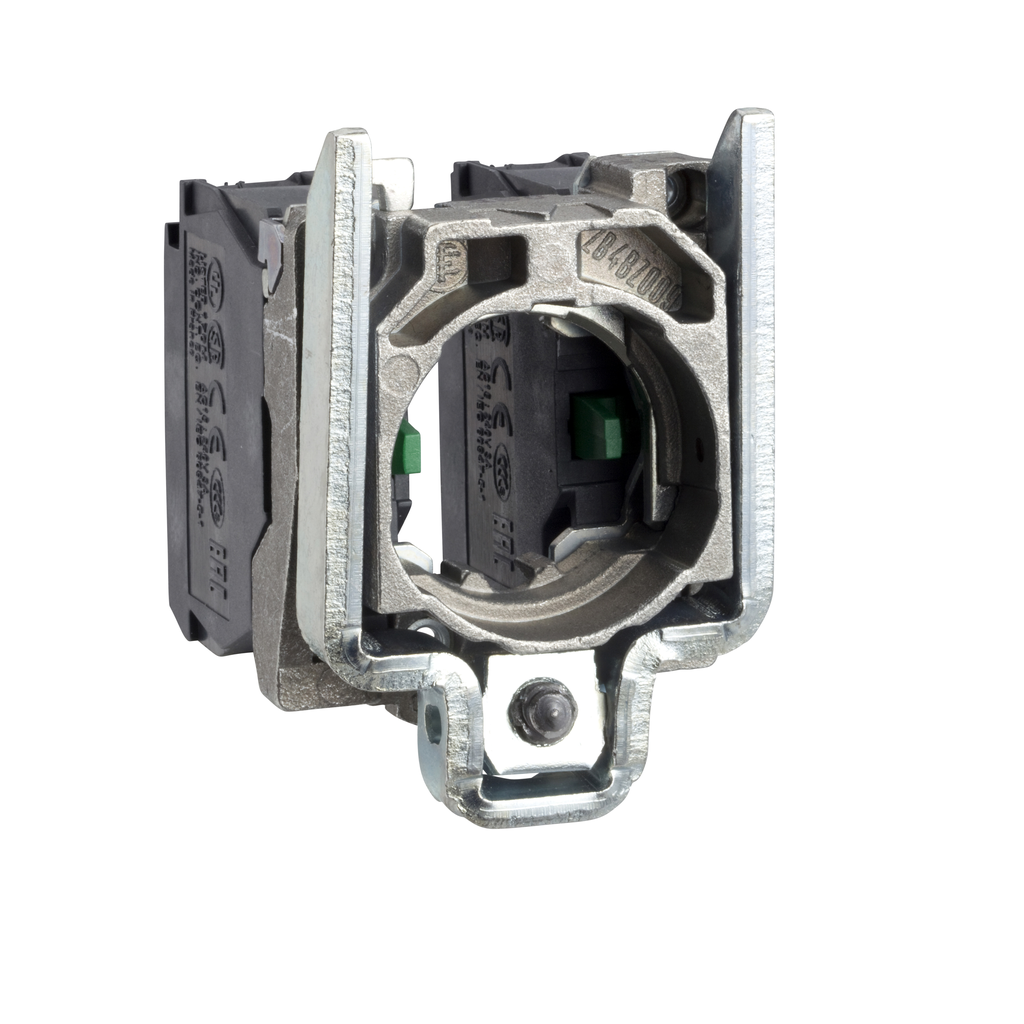

Complete body/contact assembly for joystick controller, Harmony XB4, contact block with body/fixing collar, 2NO | Mayer Electric

SQUARE D . SQDZD4PA103

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameComplete body/contact assembly for joystick controller, Harmony XB4, contact block with body/fixing collar, 2NO | Mayer Electric
UPC3389110285918
Weight0.049
WeightUnitkg
Weight_AttribNet Weight
height47.0
height_AttribCad Overall Height
jsonUrlData/Product/SQUARE-D-Complete-body-contact-assembly-for-joystick-controller-Harmony-XB4-contact-block-with-body-fixing-collar-2NO-3389110285918
jsonUrlData28c7fefcf-fbdd-4655-8f5b-aeea00593dd7
moq, multiple, tierMinQty1, Sale Per Indivisible Quantity1
MPN, SKUSQDZD4PA103
qtyInStock0
tierPrice197.15
width30.0
width_AttribCad Overall Width
Range Of ProductHarmony XB4
Product Or Component Typecomplete body/contact assembly for joystick controller
Fixing Collar Materialzamak
Contacts Type And Composition2 NO
Contact Operationslow-break
Device Short NameZD4
Warranty18 months
Contacts Usagestandard
Short-Circuit Protection10 A cartridge fuse gG EN/IEC 60947-5-1
Contacts Materialsilver alloy (Ag/Ni)
Positive Openingwithout
[Ith] Conventional Free Air Thermal Current10 A EN/IEC 60947-5-1
Net Weight0.049 kg
[Uimp] Rated Impulse Withstand Voltage6 kV EN 60947-1
Cad Overall Height47 mm
Device Presentationbasic element
[Ui] Rated Insulation Voltage600 V 3)EN 60947-1
Mechanical Durability1000000 cycles
Tightening Torque0.8-1.2 N.m EN 60947-1
Cad Overall Width30 mm
Shape Of Screw Headcross Philips no 1 || cross pozidriv No 1 || slotted flat ? 4 mm || slotted flat ? 5.5 mm
Rohs Exemption Information, Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Product CertificationsUL Listed || CSA || GL || BV || DNV || LROS (Lloyds register of shipping)
Ambient Air Temperature For Operation-25-70 ?C
StandardsEN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || EN/IEC 60947-5-4 || JIS C8201-5-1 || JIS C8201-1
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 ?C
Electrical Shock Protection Classclass I IEC 60536

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDZD4PA103111 @ $97.15
