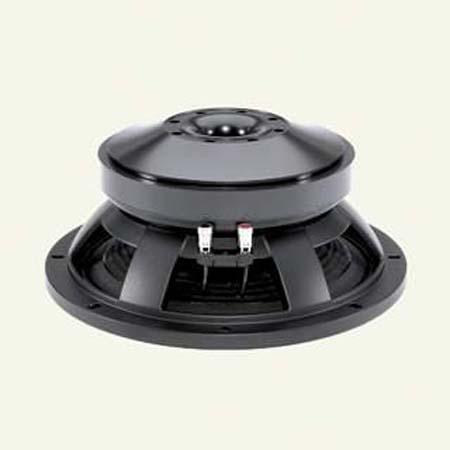

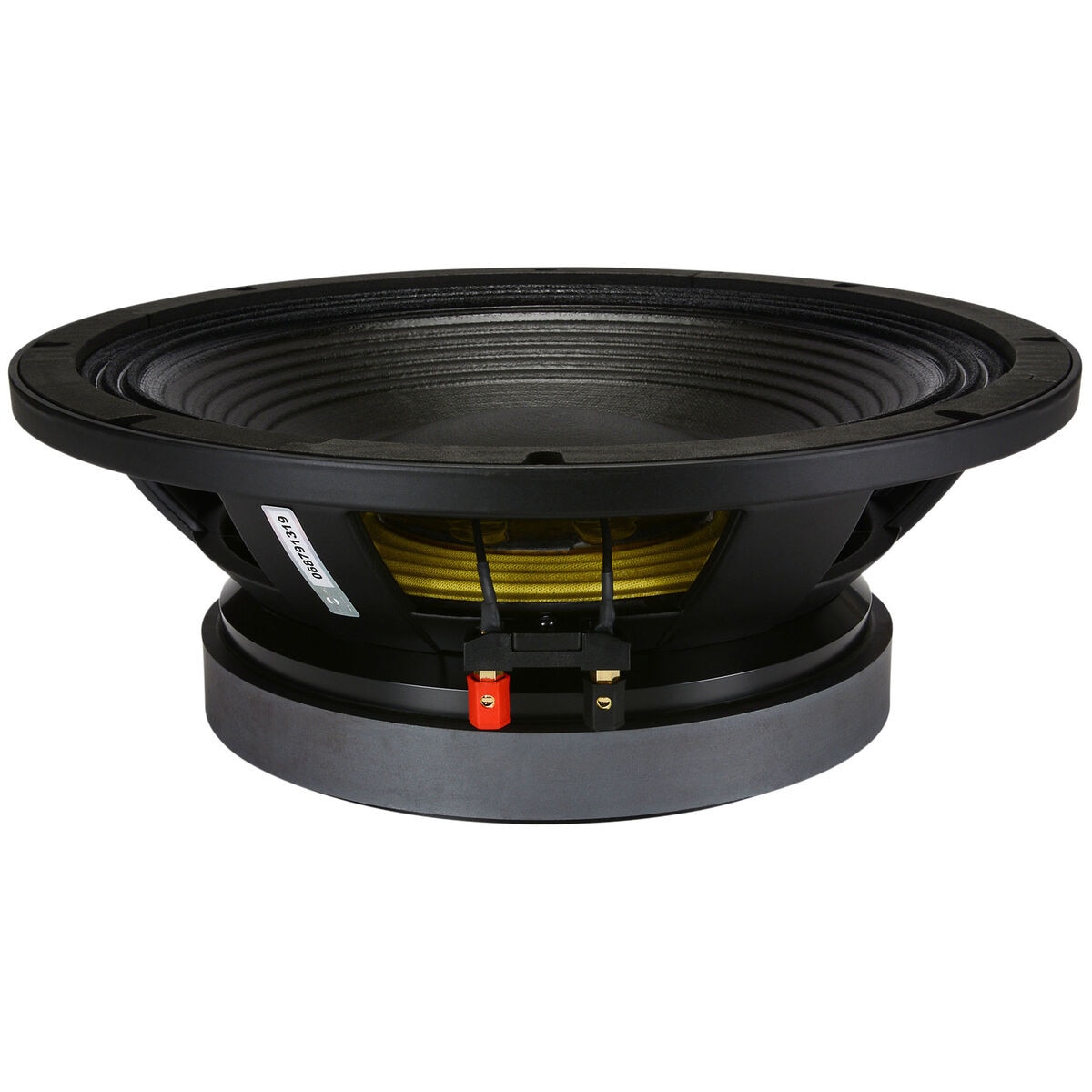

B&C 12TBX100 12" High Power Woofer 8 Ohm

B&C 12TBX100 12" High Power Woofer 8 Ohm. Part Number: 294-569 by B&C Speakers.

B&C Speakers . 12TBX100

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandB&C Speakers
DimensionUnitinch
Extra Product NameB&C 12TBX100 12" High Power Woofer 8 Ohm
UPC848864006857
Weight28
WeightUnitlbs
depth, length5.3
diameter, height, width12.5
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, Model12TBX100
qtyInStockOnly 2 In Stock
SKU, Part Number294-569
snippetB&C 12TBX100 12" High Power Woofer 8 Ohm. Part Number: 294-569 by B&C Speakers.
Unit of MeasureEach
Nominal Diameter12"
Bolt Circle Diameter11.8
Power Handling (RMS)1000 Watts
Power Handling (MAX)2000 Watts
Impedance8?
Frequency Response45 to 1,500Hz
Sensitivity95dB 2.83V/1m
Voice Coil Diameter4"
Resonant Frequency (Fs)42Hz
DC Resistance (Re)6.3?
Voice Coil Inductance (Le)1.6mH
Mechanical Q (Qms)6.9
Electromagnetic Q (Qes)0.27
Total Q (Qts)0.26
Compliance Equivalent Volume (Vas)1.3ft?
BL Product (BL)25.5T?m
Diaphragm Mass Inc Airload (Mms)119g
Maximum Linear Excursion (Xmax)9mm
Surface Area of Cone (Sd)531cm?
Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter12.5"
Baffle Cutout Diameter11.1"
Depth5.3"
# Mounting Holes8
Sealed Volume0.35ft?
Sealed F3134.4Hz
Vented Volume1.4ft?
Vented F344.1Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com294-5691Only 2 In Stock1
unbeatablesale.comTBAL35891-211 @ $269.00
