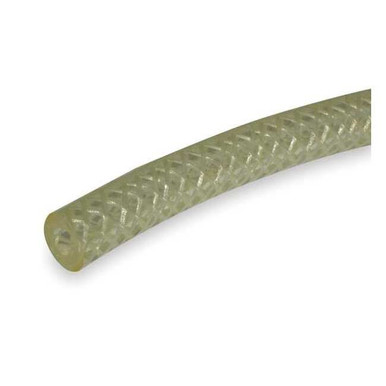

Tygon

.

Tygon . AZY02038

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameTygon
DimensionUnitinch
GraingerSku2DCG6
UPCNone
UnitOfMeasureEA
Weight13.23
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
height4.1
jsonUrlData924526ffbdad25e5923b
length21.2
moq, multiple, tierMinQty11
MPNAZY02038
qtyInStock2
qtyInStockOverride-2
SKUG3308846
tierPrice1513.55
urlhttps://www.zoro.com/tygon-tubing-braided-poly-12-in-clear-azy02038/i/G3308846/
width20.4
Tube Material, Tubing MaterialPolyurethane
Tube HardnessShore A: 85
Inside Dia, Inside Diameter1/2 in
Outside Dia, Outside Diameter3/4 in
Wall Thickness1/8 in
Max Pressure195 psi
Tube Length, Overall Length100 ft
Tube Color, Color, Jacket Color, ClarityClear
ItemTubing
TypeTygothane(R), Braided
Vacuum Rating, Maximum Vacuum Pressure29.9 in Hg
Burst Pressure780 psi
StandardsFDA 21CFR, Reach Compliant
Temp Range-100 Degrees to 175 Degrees F
Tube FormCoil
ReinforcementYarn Reinforced
Tradename MaterialVersilon C-544-A IB
Maximum Operating Temperature180 Degrees F
For Fluid TypeFuel, Oil
Material BrandTYGON Versilon C-544-A IB
Autoclavable, Peristaltic Pump CompatibleNo
For EnvironmentExtreme Temperature, Oily
Resistance PropertiesAbrasion Resistant, Fuel Resistant, Grease Resistant, Oil Resistant, Tear Resistant, Temperature Resistant
Stripe ColorNo Stripe
Maximum Operating Pressure195 psi @ 73 Degrees F
Petroleum Product CompatibilityFuel Oil, Gasoline, Automotive, Kerosene, Lubricants, Mineral Oil, Turpentine
Jacket MaterialTPU
Elongation400%
For Potable Water UseYes
FlexibilityFlexible
HardnessShore A 85
Material Trade NumberC-544-A IB
Minimum Operating Temperature-100 Degrees F
Tubing HardnessFirm (A85-95)
PEX TypeNot Applicable
Vacuum RatedVacuum Rated
Beverage, Food, and Water Compatibility, Food and Beverage CompatibilityBeer, Citric Acid, Dairy, Distilled Water, Glycerin, Linseed Oil, Milk, Non-Potable Water, Oils and Fats, Orange Juice, Potable Water, Salt Water, Soft Drinks, Vinegar
Material Trade NameVersilon
Bend Radius2 in
Does Not ContainBPA, Phthalates above limits in REACH, RoHS, CA Prop 65, Latex, Substances on REACH or RoHS above limit
Tubing ReinforcementSpiral Yarn
Brand MaterialVersilon C-544-A-IB
Industry ApplicationPneumatics
Fitting CompatibilityBarbed
System of MeasurementInch
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG33088461211 @ $513.55
simsupply.comZO-G330884611211 @ $695.90
