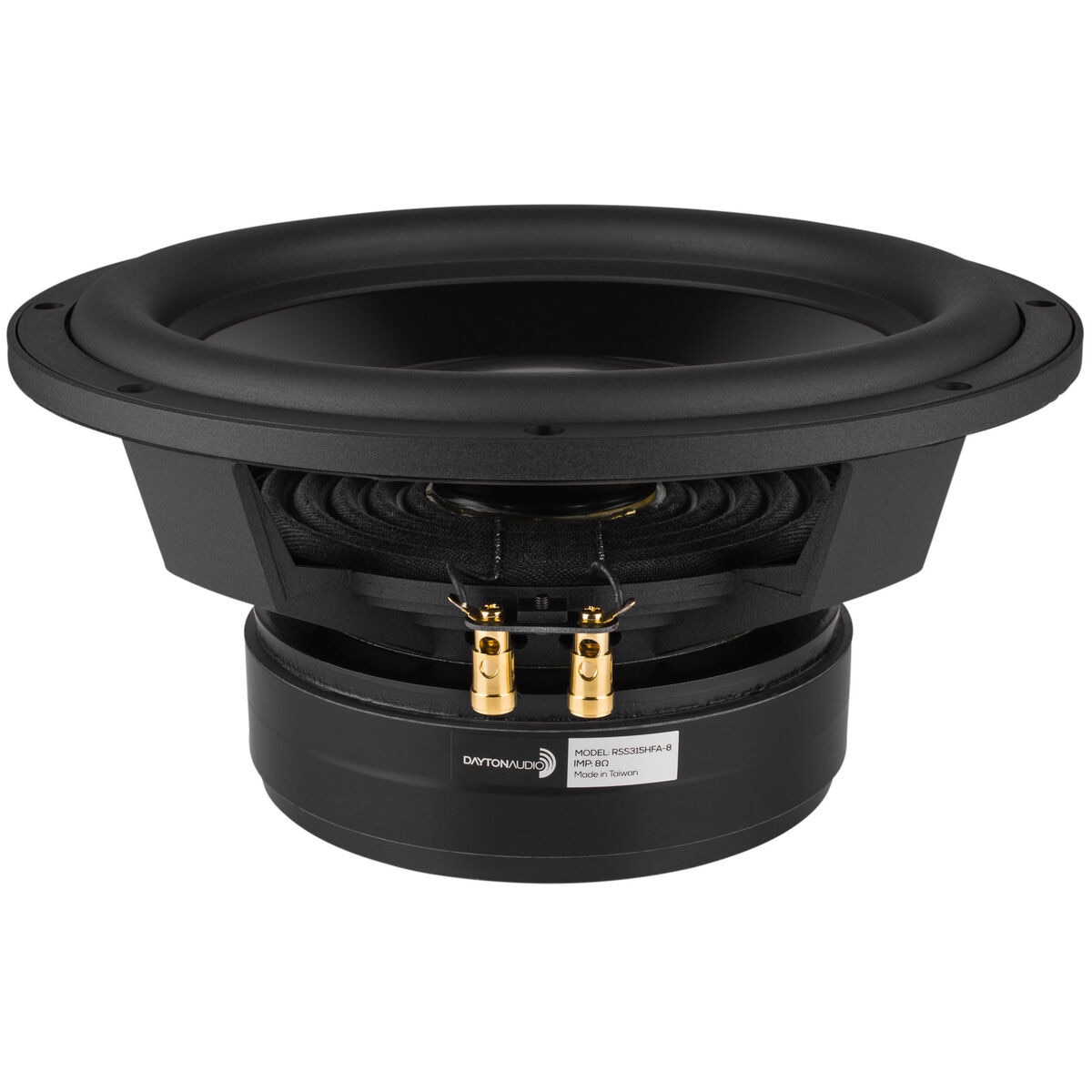

Dayton Audio RSS315HFA-8 12" Reference Series HF Subwoofer 8 Ohm

Dayton Audio RSS315HFA-8 12" Reference HF Subwoofer 8 Ohm. Part Number: 295-445 by Dayton Audio.

Dayton Audio . RSS315HFA-8

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandDayton Audio
DimensionUnitinch
Extra Product NameDayton Audio RSS315HFA-8 12" Reference Series HF Subwoofer 8 Ohm
UPC844632088681
Weight24.5
WeightUnitlbs
depth, length5.75
diameter, height, width12.36
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple, tierMinQty11
MPN, ModelRSS315HFA-8
qtyInStock-2
qtySourceFieldMap
SKU, Part Number295-445
snippetDayton Audio RSS315HFA-8 12" Reference HF Subwoofer 8 Ohm. Part Number: 295-445 by Dayton Audio.
tierMinQty24
tierMinQty310
tierMinQty450
tierPrice1234.98
tierPrice2227.93
tierPrice3221.09
tierPrice4216.67
Unit of MeasureEach
Nominal Diameter12"
Power Handling (RMS)400 Watts
Power Handling (MAX)700 Watts
Impedance8?
Frequency Response25 to 1,500Hz
Sensitivity85.7dB 2.83V/1m
Voice Coil Diameter2.58"
Resonant Frequency (Fs)22.2Hz
DC Resistance (Re)6.5?
Voice Coil Inductance (Le)1.56mH
Mechanical Q (Qms)2.5
Electromagnetic Q (Qes)0.54
Total Q (Qts)0.45
Compliance Equivalent Volume (Vas)3.43ft?
Mechanical Compliance of Suspension (Cms)0.27mm/N
BL Product (BL)18T?m
Diaphragm Mass Inc Airload (Mms)194g
Maximum Linear Excursion (Xmax)14.3mm
Surface Area of Cone (Sd)506.7cm?
Cone Material, Voice Coil FormerAluminum
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter12.36"
Baffle Cutout Diameter11.1"
Depth5.75"
# Mounting Holes8
Sealed Volume1.5ft?
Sealed F339Hz
Vented Volume2.5ft?
Vented F325Hz
