SAER . M 300-C

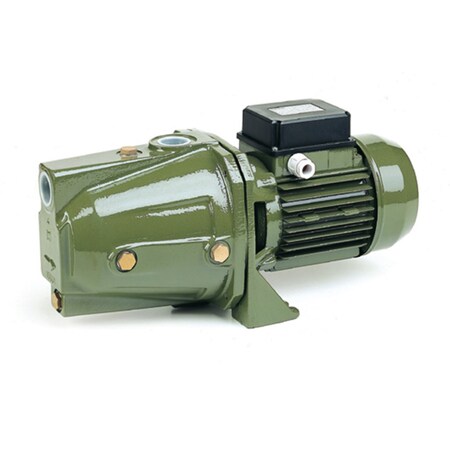

Saer 10356002 Model M 300-C Self Priming Pump, 1.5 HP, 1 PH, 115V/60 Hz, 21A, 69.7 PSI Max Working Pressure, 17 Feet Max Suction Lift, 2212 GPH, NPT Tread, Brass Impeller, Built-in Ejector Made in Italy by Italians Key Features Nozzle and venturi being housed in the pump body Self prime function For general water supply, pressurization of water by using pressure vessels (autoclaves), watering and irrigation Single phase motors with a built in thermal overload protection on request, the capacitor is permanently in circuit Motor protection to IP44 Winding Insulation to class F Liquid quality required: clean free from solids or abrasive substances and non aggressive Specific weight of the liquid tested: 62.5 pounds per cubic feet Specifications Body color: Green Impeller type: Peripheral Materials: Pump body and motor support in cast iron, Impeller in pressed brass, Mechanical seal in carbon and ceramic and rotor shaft in stainless steel Cooling: Totally enclosed fan cooled motor (TEFC) Motor configuration: Single phase motors, built in thermal overload protection on request, capacitor is permanently in circuit Maximum capacity: 2212 Gallons per hour Maximum height: 157 Feet Liquid type: Clean and free from solids and non aggressive or abrasive substances Liquid temperature range: 5 to 158 degrees Fahrenheit Ambient Temperature: 104 degrees Fahrenheit, maximum Work pressure: 69.7 PSI Regulations: Complies with UNI / ISO 2548-Class C Dimensions: 16.3" x 9" x 9.2" Shipping Dimensions: 22" x 12" x 13" Weight: 70 lb Shipping Weight: 75 lb
