| Brand name, Manufacturer name, Manufacturer | Uniview |
|---|
| Condition | NEWCONDITION |
|---|
| DimensionUnit | m |
|---|

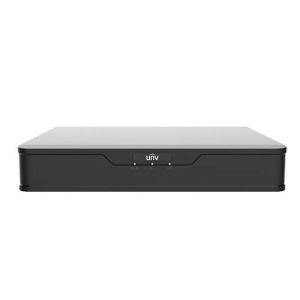

| Extra Product Name | Buy Uniview XVR301-08Q3, 1 SATA Series 8-Chanel Video Recorder - Prime Buy |
|---|
| Weight | 1.1 |
|---|
| WeightUnit | lbs |
|---|
| Weight_Attrib | Weight (without HDD) |
|---|
| moq, multiple, tierMinQty1, RS485 | 1 |
|---|
| MPN, SKU | XVR301-08Q3 |
|---|
| qtyInStock | 2 Weeks Factory Lead Time |
|---|
| tierPrice1 | 249.00 |
|---|
| width | 64.0 |
|---|
| width_Attrib | Outgoing Bandwidth |
|---|
| Analog Video Input | 8-ch, BNC |
|---|
| IP Video Input | 4-ch (only IP up to 12ch), each channel up to 8MP |
|---|
| Audio Input, Audio Output, Two-Way Audio | 1-ch, RCA |
|---|
| Audio Compression | G.711U |
|---|
| CVBS Output | 1-ch, BNC |
|---|
| VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|---|
| HDMI Output | 3840 x 2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|---|
| Synchronous Playback | 8 |
|---|
| Live View Display | HDMI/VGA: 1/4/6/8/9/16 |
|---|
| Incoming Bandwidth | 40Mbps (Up to 56Mbps after all analog channel conversion) |
|---|
| Outgoing Bandwidth | 64Mbps |
|---|
| Remote Users | 128 |
|---|
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP |
|---|
| Recording Resolution | 8MP Lite/5MP/5MP Lite/4MP Lite/1080P/720P/CIF |
|---|
| Audio Sample Rate | 8KHz, 16 bit per channel |
|---|
| Audio Bit Rate | 64Kbps per channel |
|---|
| SATA | 1 SATA interface |
|---|
| Capacity | Up to 8TB for each HDD (The maximum HDD capacity varies with environment temperature) |
|---|
| General Alarm | Motion detection |
|---|
| Alert Alarm | IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
|---|
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
|---|
| USB Interface | Rear panel: 2 x USB2.0 |
|---|
| Alarm In | 4-ch |
|---|
| Alarm Out | 1-ch |
|---|
| Power Supply | 12V DC, Power Consumption: ≤ 10 W (without HDD) |
|---|
| Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
|---|
| Dimensions (WxDxH) | 260mm x226mmx 47mm (10.2" x 8.9" x1.8") |
|---|
| Weight (without HDD) | ≤1.1 Kg (2.42lb) |
|---|
| Certification | UL /CE /FCC /RoHS /WEEE |
|---|
