Tritan

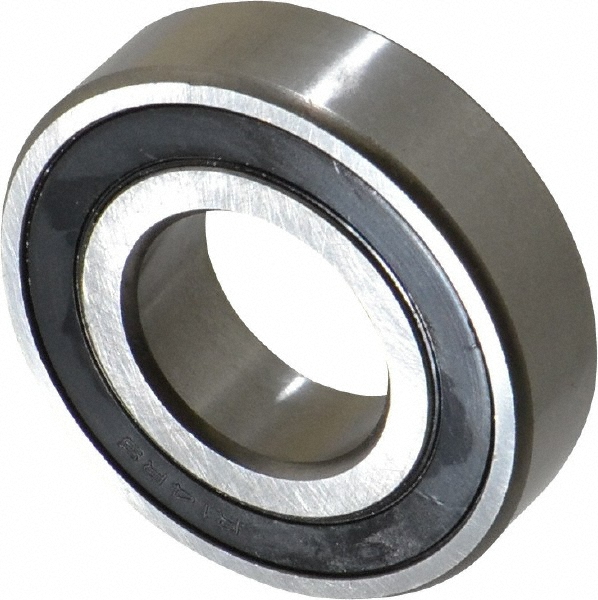

Radial Ball Bearing, Bearing Industry Number R14, Bore Diameter 7/8 in, Closure Double Sealed, For Environment Oily/Greasy, Outer Ring Width 0.

Tritan . R14 2RS PRX

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameTritan
DimensionUnitinch
GraingerSku35JC81
UPC888569033215
UnitOfMeasureEA
Weight0.23
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginCN
extendedLead26
extendedQty, qtyInStockOverride-2
height0.7
jsonUrlData924526ffbdad25e5923b
length, width2.5
moq, multiple, tierMinQty1, ABEC Tolerance, ABEC Rating1
MPNR14 2RS PRX
qtyInStock0
SKUG2727201
tierPrice15.02
urlhttps://www.zoro.com/tritan-min-ball-bearing-ps-0875in-bore-dia-r14-2rs-prx/i/G2727201/
Bore Dia0.875 in
Outside Dia1.875 in
Width, Outer Ring Width0.5 in
Max RPM10,000 RPM
Static Load Capacity1,220 lb
Temp Range-40 Degrees to 350 Degrees F
Bearing MaterialSteel
Cage MaterialPressed Steel
Dynamic Load Capacity2,270 lb
Bearing Type, Seal/Shield Type, ClosureDouble Sealed
Outside Dia Tolerance, Bore Tolerance, Outside Diameter Tolerance+0/-0.0004 in
LubricationPolyrex EM Grease
Industry NumberR14-2RS
Single Row/Double RowSingle Row
ItemRadial Ball Bearing
Seal MaterialRubber
System of MeasurementInch
Flange Thickness, Flange Diameter, Retaining Ring Thickness, Retaining Ring DiameterNot Applicable
Miniature BearingYes
Static Radial Load Capacity1,220 lbf
Dynamic Radial Load Capacity, Maximum Axial Load2,270 lbf
Retaining Ring Groove, Includes Retaining RingNo
Flange TypeNon-Flanged
Ball Material, Ring MaterialAlloy Steel
Bore Diameter7/8 in
Bore Diameter Tolerance+0/-0.0003 in
Minimum Temperature-40 Degrees F
Maximum Speed17,000 RPM
Number of RowsOne
Seal TypeContact
Ring Material Grade, Ball Material GradeAISI 52100
Outside Diameter1 7/8 in
Bearing Industry NumberR14
StandardsAFBMA, ISO Certified 9001
Maximum Temperature350 Degrees F
Lubricant MaterialPolyrex EM
For EnvironmentOily/Greasy
Closure & Seal TypeDouble Sealed - Contact Seal
Country of Origin (subject to change)China

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG2727201111 @ $5.02
simsupply.comZO-G272720115711 @ $16.21
National Supply Network354334241-211 @ $9.66
Grainger35JC8111
