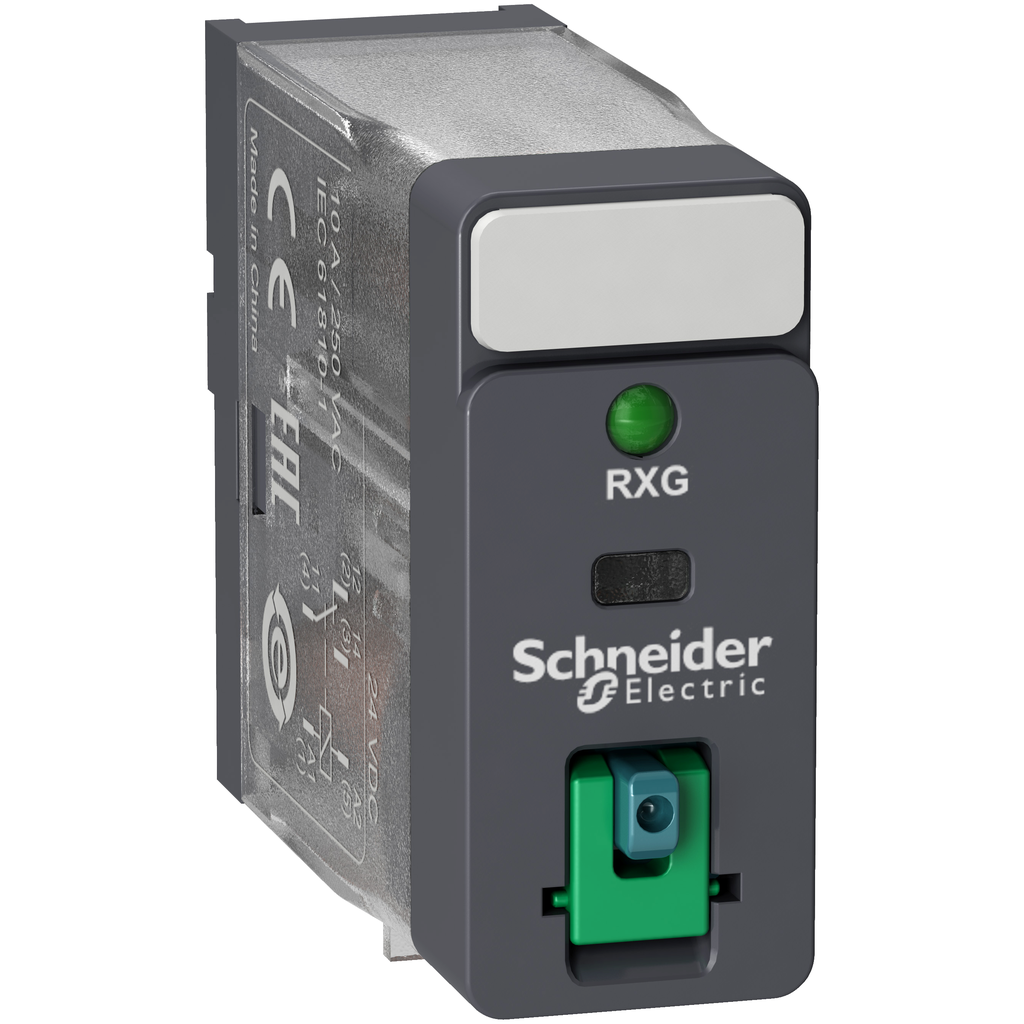

Harmony, Interface plug-in relay, 10 A, 1 CO, with LED, with lockable test button, 12 V DC | Mayer Electric

Mayer Electric Supply . RXG12JD

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
Extra Product NameHarmony, Interface plug-in relay, 10 A, 1 CO, with LED, with lockable test button, 12 V DC | Mayer Electric
UPC785901949886
Weight0.02
WeightUnitkg
Weight_AttribNet Weight
jsonUrlData/Product/SCHNEIDER-ELECTRIC-Interface-plug-in-relay-10-A-1-CO-lockable-test-button-LED-12-V-DC-785901949886
jsonUrlData2b21c9f86-2fb3-4f2e-bea2-abd20063089e
moq, multiple, tierMinQty11
MPNRXG12JD
qtyInStock0
SKUSQDRXG12JD
tierPrice19.33
Range Of ProductHarmony Electromechanical Relays
Product Or Component Typeplug-in relay
Series Nameinterface relay
Contacts Type And Composition1 C/O
Device Short NameRXG
Utilisation Coefficient20 %
Maximum Switching Capacity2500 VA
Safety Reliability DataB10d = 100000
[Uc] Control Circuit Voltage12 V DC
Insulation Resistance1000 MOhm at 500 V DC
Torque Value0.8 N.m
Test Levelslevel A
Contacts Materialsilver alloy (AgSnO2In2O3)
Reset Time, Operating Time20 ms
Dielectric Strength1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation
Status Ledwith
Net Weight0.02 kg
Colour Of Coverstandard
Maximum Switching Voltage250 V AC || 30 V DC
Control Typelockable test button
Device Presentationcomplete product
Electrical Insulation Classclass F
[Ie] Rated Operational Current10 A 30 V DC) UL || 10 A 30 V DC) IEC || 10 A 250 V AC) IEC || 10 A 250 V AC) UL
[Ui] Rated Insulation Voltage250 V IEC || 300 V CSA || 300 V UL
Electrical Durability100000 cycles NO resistive at 55 ?C || 100000 cycles NC resistive at 55 ?C
Mechanical Durability10000000 cycles
Resistance270 Ohm +/- 10 %
Local Signallingflag
Mounting Positionany position
[Uimp] Rated Impulse Withstand Voltage6 kV 1.2/50 ?s
Load Current10 A 250 V AC
Drop-Out Voltage Threshold>= 0.1 Uc DC
Minimum Switching Capacity500 mW at 100 mA, 5 V DC
[Ithe] Conventional Enclosed Thermal Current10 A -40-55 ?C
Contact Resistance100 mOhm
Rohs Exemption Information, Mercury Free, Toxic Heavy Metal Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1406006EN
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Product CertificationsCSA || CE || EAC || UL || DNV-GL
Ambient Air Temperature For Operation-40-70 ?C
StandardsUL 508 || CSA C22.2 No 14 || IEC 61810-1
Protection CategoryRT I
Pollution Degree2
Shock Resistance20 gn in operation || 100 gn not in operation
Vibration Resistance3 gn +/- 0.75 mm 10-150 Hz)in operation || 5 gn +/- 0.75 mm 10-150 Hz)not in operation
Relative Humidity10-85 %
Ambient Air Temperature For Storage-40-85 ?C
Overvoltage CategoryIII
Ip Degree Of ProtectionIP40
