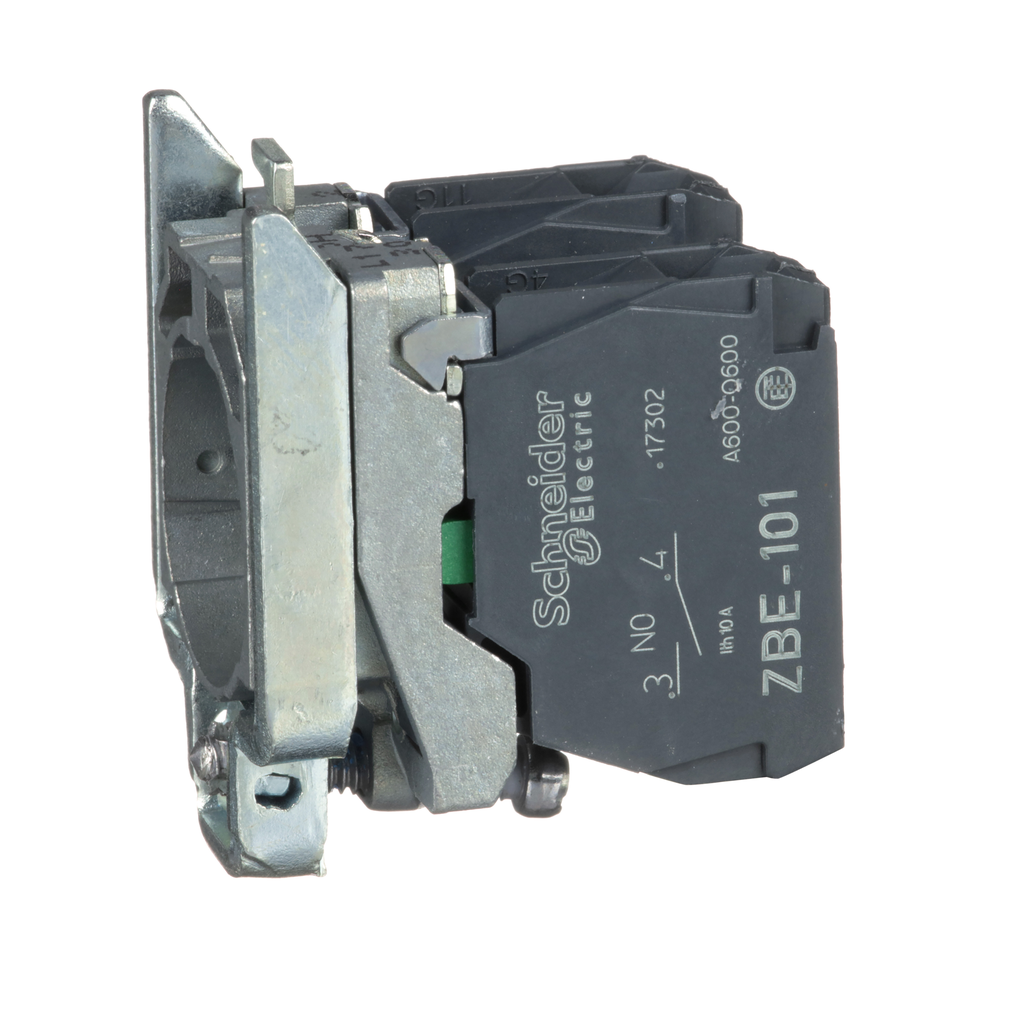

Complete body/contact assembly, Harmony XB4, single contact, with body/fixing collar, 2NO, set of 100 | Mayer Electric

SQUARE D . SQDZB4BZ103TQ

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
Extra Product NameComplete body/contact assembly, Harmony XB4, single contact, with body/fixing collar, 2NO, set of 100 | Mayer Electric
UPC3389110883695
jsonUrlData/Product/SQUARE-D-Complete-body-contact-assembly-Harmony-XB4-single-contact-with-body-fixing-collar-2NO-set-of-100-3389110883695
jsonUrlData26cd547c8-a6cb-484c-a398-aeea0058fdcc
moq, multiple, tierMinQty11
MPN, SKUSQDZB4BZ103TQ
qtyInStock0
tierPrice133.44
Range Of ProductHarmony XB4
Contact Block Typesingle
Product Or Component Typecomplete body/contact assembly
Fixing Collar Materialzamak
Head Typestandard
Contacts Type And Composition2 NO
Sale Per Indivisible Quantity100
Contact Operationslow-break
Device Compositionbody || fixing collar
Device Short NameZB4
Warranty18 months
Contacts Usagestandard contacts
Short-Circuit Protection10 A cartridge fuse gG EN/IEC 60947-5-1
Operating Travel2.6 mm NO changing electrical state) || 4.3 mm total travel)
Contacts Materialsilver alloy (Ag/Ni)
Positive Openingwithout
[Ith] Conventional Free Air Thermal Current10 A EN/IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage6 kV EN 60947-1
[Ui] Rated Insulation Voltage600 V 3)EN 60947-1
Operating Torque0.05 N.m NO changing electrical state
Mechanical Durability5000000 cycles
Tightening Torque0.8-1.2 N.m EN 60947-1
Shape Of Screw Headcross Philips no 1 || cross pozidriv No 1 || slotted flat ? 4 mm || slotted flat ? 5.5 mm
Rohs Exemption Information, Mercury Free, Toxic Heavy Metal Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1808008EN
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingDi-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationX
Circularity ProfileENVEOLI1808008EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Product CertificationsDNV || UL || LROS (Lloyds register of shipping) || BV || CSA || GL
Ambient Air Temperature For Operation, Ambient Air Temperature For Storage-40-70 ?C
StandardsEN/IEC 60947-5-4 || EN/IEC 60947-5-5 || UL 508 || JIS C8201-5-1 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C8201-1
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP20 IEC 60529
Protective TreatmentTH

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDZB4BZ103TQ111 @ $33.44
