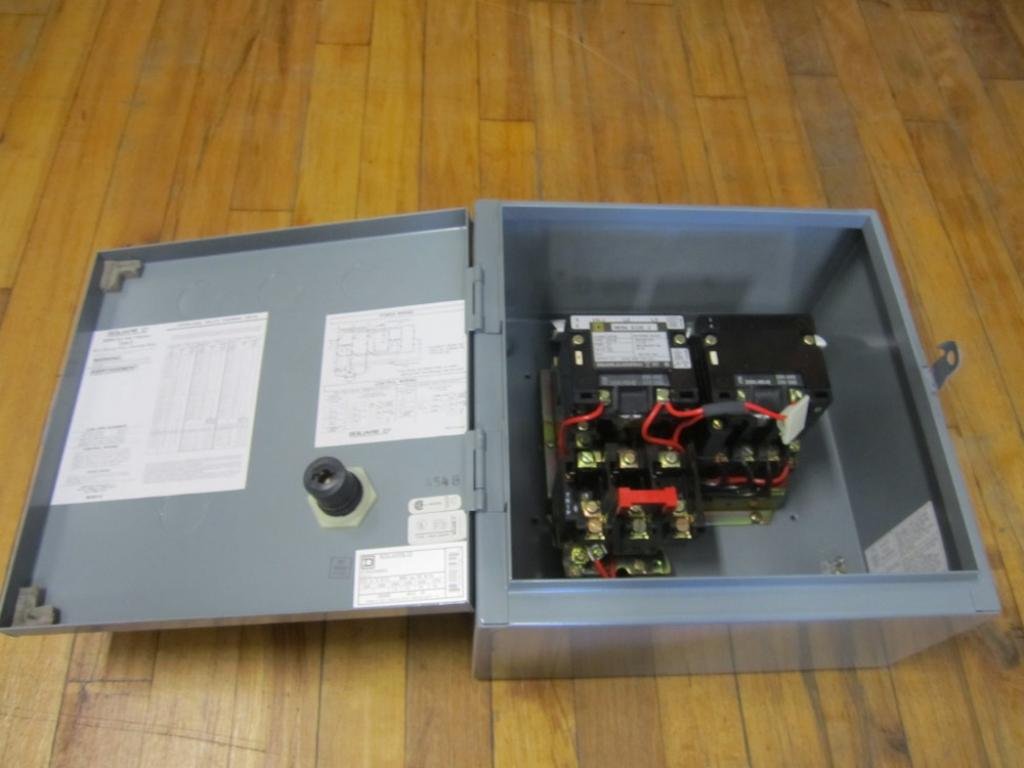

PN: 8736SCG8V02S Square D PN: 8736SCG8-V02S 8736SCG8 V02S 8736SCG8V02S Ac Reversing Magnetic Starter Has Reset Button Series A Nema Size 0 & 1 Starter Type S Max HP 10, 60Hz | Max HP 30, 60Hz 120V|240V | 200V | 230V | 460V | 575V | | | 7.5 | 7.5 | 10 | 10 | Starter 3104-507-52-801 9813 Class: 8736 Type: SC08 Polyphase Rating: 200/230 VAC 7.5 HP 380/460/575 VAC 10 HP 600VAC Max Contact Kit: Class 9998 Type SL3 Coil: 31041-400-42 120V/60Hz 110V/50Hz Grounding Torque Requirements: 14-10 AWG | 35 In. Lbs. 8 AWG | 40 In. Lbs. 6-4 AWG | 45 In. Lbs. Type 1 Enclosure Use 3 Type B Thermal Units Separate 110/120V 50/60Hz Control UPC Number: 785901874324
